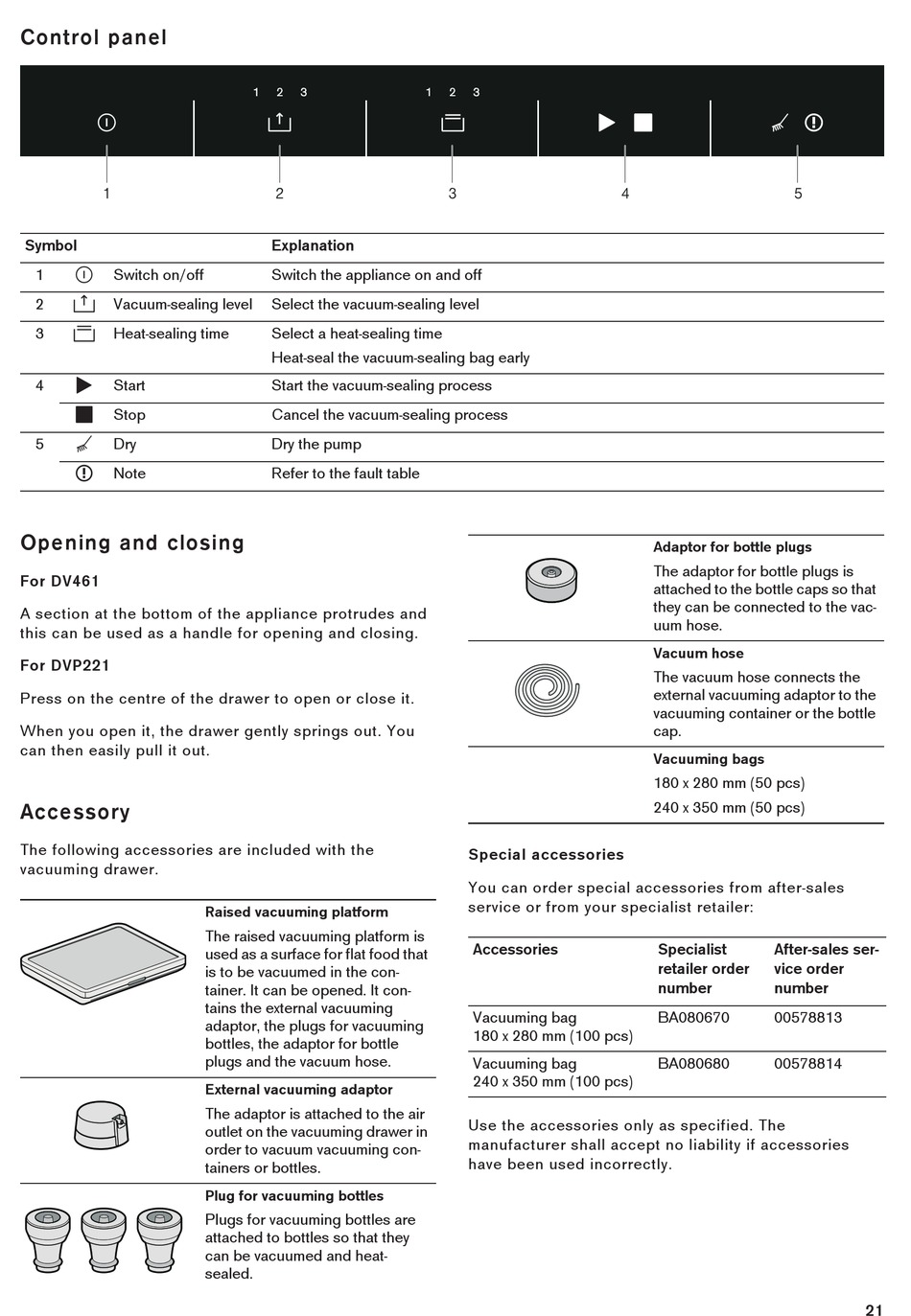

Control Panel; Opening And Closing; Accessory - Gaggenau DV 061 Gebrauchsanleitung

Control panel

Symbol
1 ÿ Switch on/off
°
2 Vacuum-sealing level
3 ± Heat-sealing time
²
4 Start
³ Stop
¢
5 Dry
... Note

Opening and closing

For DV461
A section at the bottom of the appliance protrudes and
this can be used as a handle for opening and closing.
For DVP221
Press on the centre of the drawer to open or close it.
When you open it, the drawer gently springs out. You
can then easily pull it out.

Accessory

The following accessories are included with the
vacuuming drawer.
Explanation
Switch the appliance on and off
Select the vacuum-sealing level
Select a heat-sealing time
Heat-seal the vacuum-sealing bag early
Start the vacuum-sealing process
Cancel the vacuum-sealing process
Dry the pump
Refer to the fault table
Raised vacuuming platform
The raised vacuuming platform is
used as a surface for flat food that
is to be vacuumed in the con-
tainer. It can be opened. It con-
tains the external vacuuming
adaptor, the plugs for vacuuming
bottles, the adaptor for bottle
plugs and the vacuum hose.
External vacuuming adaptor
The adaptor is attached to the air
outlet on the vacuuming drawer in
order to vacuum vacuuming con-
tainers or bottles.
Plug for vacuuming bottles
Plugs for vacuuming bottles are
attached to bottles so that they
can be vacuumed and heat-
sealed.
Special accessories
You can order special accessories from after-sales
service or from your specialist retailer:
Accessories
Vacuuming bag
180 x 280 mm (100 pcs)
Vacuuming bag
240 x 350 mm (100 pcs)
Use the accessories only as specified. The
manufacturer shall accept no liability if accessories
have been used incorrectly.
Adaptor for bottle plugs
The adaptor for bottle plugs is
attached to the bottle caps so that
they can be connected to the vac-
uum hose.
Vacuum hose
The vacuum hose connects the
external vacuuming adaptor to the
vacuuming container or the bottle
cap.
Vacuuming bags
180 x 280 mm (50 pcs)
240 x 350 mm (50 pcs)
Specialist After-sales ser-
retailer order vice order
number number
BA080670 00578813
BA080680 00578814
21
