M S-7235 M ainboard
22

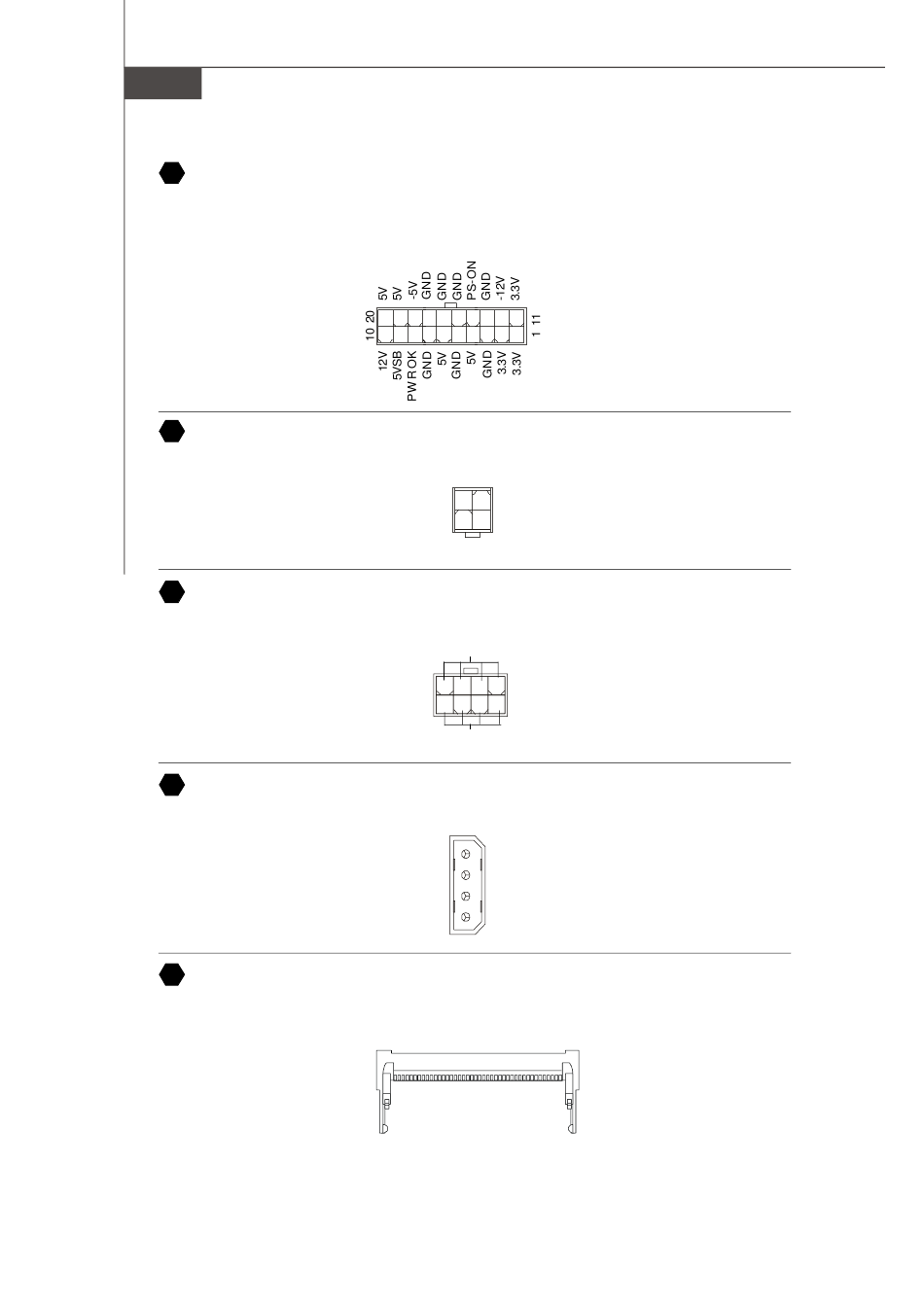

ATX 20-Pin Power Connector
This connector allows you to connect an ATX 20-pin power supply. To connect the ATX
20-pin power supply, make sure the plug of the power supply is inserted in the proper
orientation and the pins are aligned. Then push down the power supply firmly into the
connector.
23
ATX 12V Power Connector (2x2-Pin)
This 12V power connector is used to provide power to the CPU.
24
ATX 12V Power Connector (2x4-Pin)
This 12V power connector is used to provide power to the CPU.
25
ATX 12V Power Connector (1x4-Pin)
This 12V power connector is used to provide power to the graphics card.
26
NV SLI Connector
This connector is used to configure the SLI switch card to SLI or non-SLI mode.
En-16
2 1
GND GND
12V 12V
4 3
+12V
5
8
1
4
GND
5V
1
2 GND
3 GND
4 12V
