10

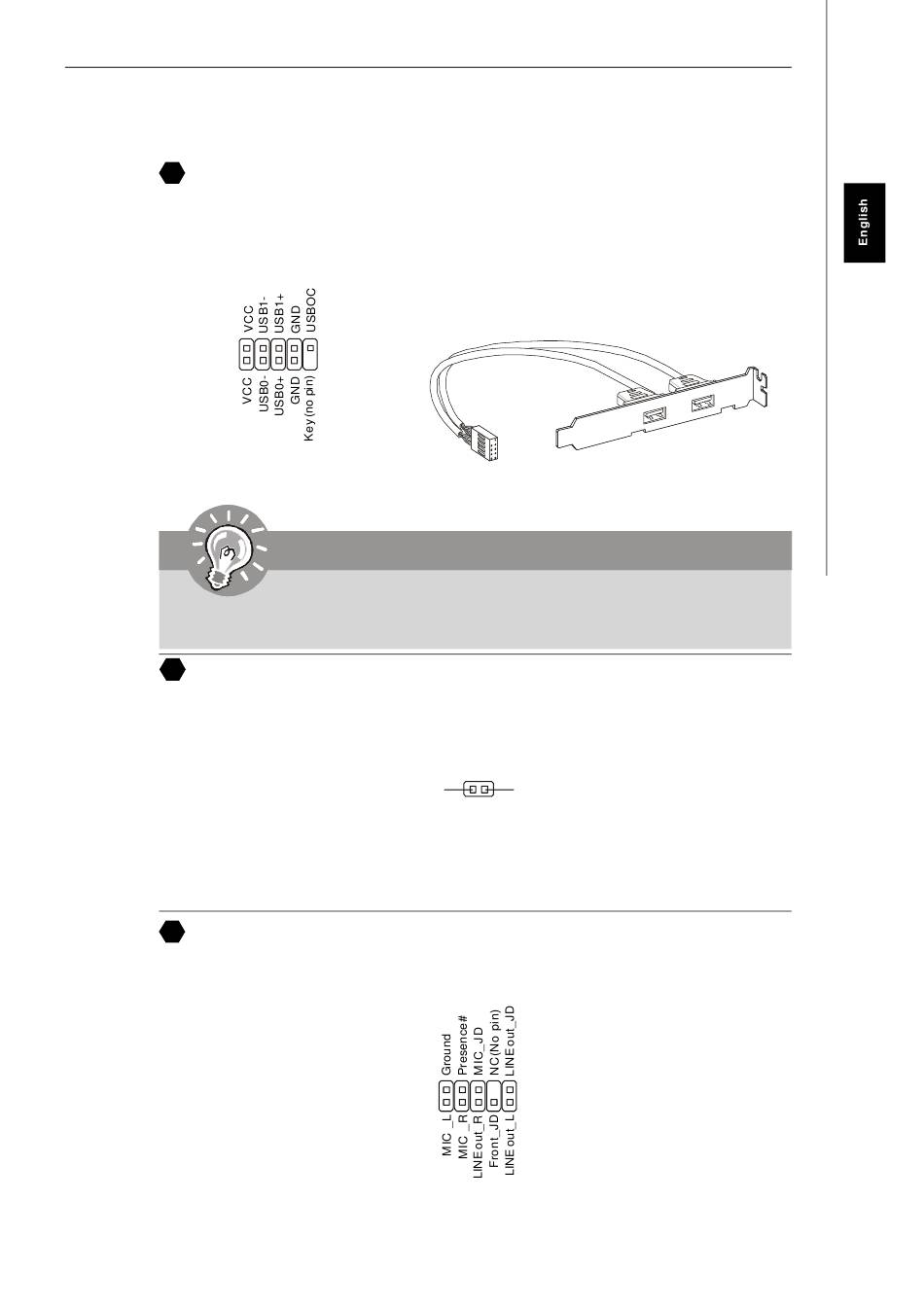

Front USB Connector (Yellow)
This connector, compliant with Intel
necting high-speed USB interface peripherals such as USB HDD, digital cameras, MP3
players, printers, modems and the like.
10
2
9
1
Important
Note that the pins of VCC and GND must be connected correctly to avoid possible
damage.
11 S/PDIF-Out Connector (Optional, for HDMI graphics card only)
This connector is used to connect S/PDIF (Sony & Philips Digital Interconnect Format)
interface for digital audio transmission to the HDMI graphics card.
12
Front Panel Audio Connector (Azalia Spec)
This connector allows you to connect the front panel audio and is compliant with Intel
Front Panel I/O Connectivity Design Guide.
®
I/O Connectivity Design Guide, is ideal for con-
SPDIFO GND
JSPD1
2
10
9
1
Installation Guide
USB 2.0 Bracket
(Optional)
®
En-11
