Connections

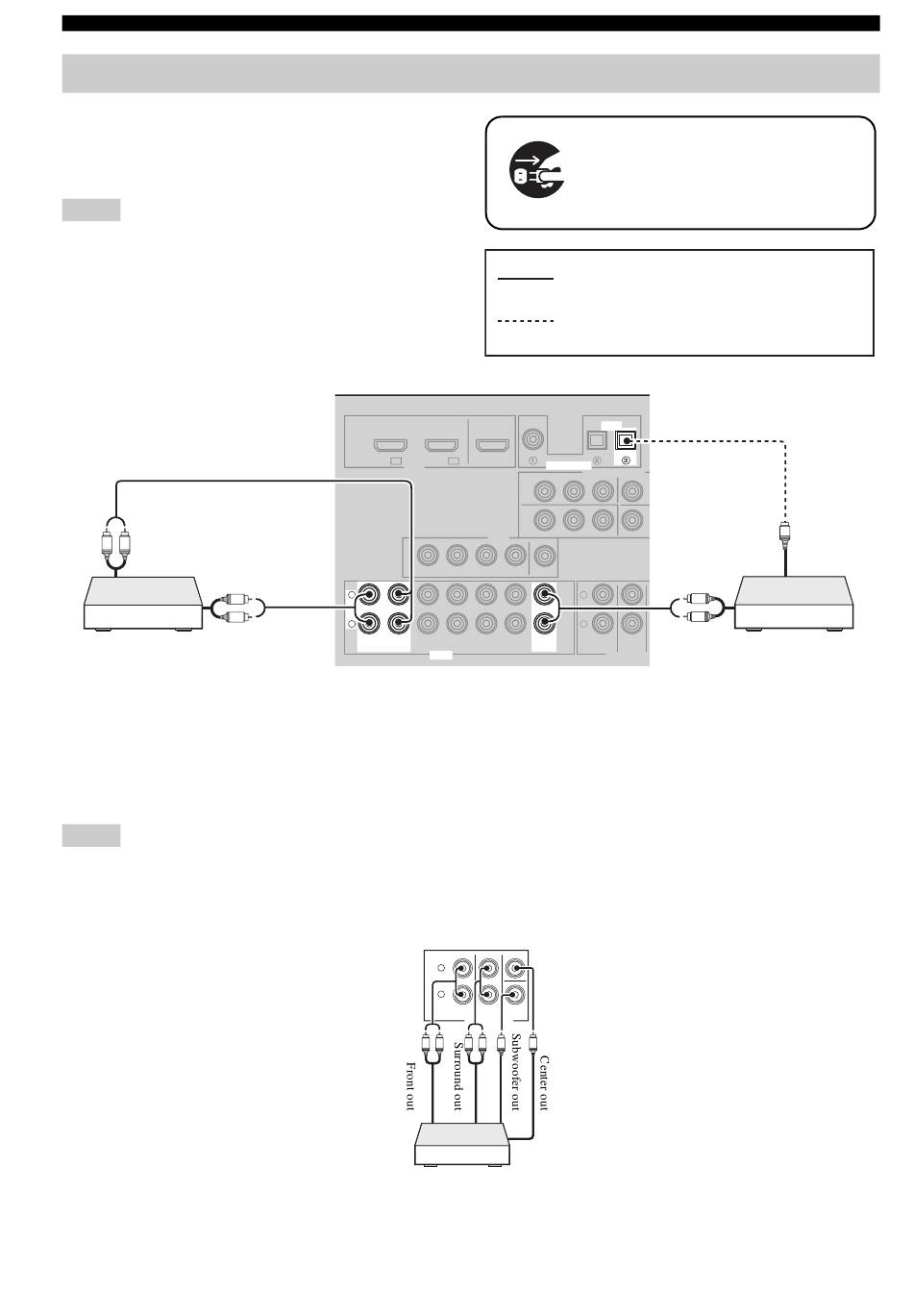

Connecting audio components

Connect the audio components as follows.
■ Connecting a CD player and a CD
recorder/MD recorder
Notes
• When you connect your CD player via analog and digital
connection, priority is given to the signal input at the DIGITAL
INPUT jack.
• To make a digital connection to a component other than the
default component assigned to each DIGITAL INPUT jack,
select the corresponding setting in "INPUT ASSIGNMENT"
(see page 62).
L R
Audio in
L
R
Audio out
CD recorder or
MD recorder

■ Connecting a multi-format player or an external decoder

This unit is equipped with 6 additional input jacks (FRONT L/R, SURROUND L/R, CENTER and SUBWOOFER) for
discrete multi-channel input from a multi-format player, external decoder or sound processor. Connect the output jacks
on your multi-format player or external decoder to the MULTI CH INPUT jacks. Be sure to match the left and right
output jacks to the left and right input jacks for the front and surround channels.
Notes
• When you select the component connected to the MULTI CH INPUT jacks as the input source (see page 34), this unit automatically
turns off the digital sound field processor, and you cannot select sound field programs.
• This unit does not redirect signals input at the MULTI CH INPUT jacks to accommodate for missing speakers. We recommend that
you connect a 5.1-channel speaker system before using this feature.
18
En
DVD IN1 DTV/CBL IN2 OUT
HDMI
VIDEO
VIDEO
IN OUT
DVD DTV/CBL DVR
L L
R R
IN IN MD/ MD/ OUT OUT IN OUT
(PLAY) (PLAY) CD-R CD-R (REC) (REC)
DVD DTV/CBL DVR
AUDIO AUDIO
CENTER
L
R
SUB
FRONT SURROUND
WOOFER
MULTI CH INPUT
L R L R
Multi-format player/
External decoder
Make sure that this unit and other
components are unplugged from the
AC wall outlets.
indicates recommended connections
indicates alternative connections
COAXIAL
OPTICAL OPTICAL
DVD DTV/CBL CD CD
DIGITAL INPUT DIGITAL INPUT
COMPONENT VIDEO
DVD
P P Y P
R B R
MONITOR OUT
MONITOR
OUT
L
R
Audio out
FRONT SURROUND W
CD CD
MULTI CH INPU
O
Optical out
L
R
CD player
