VC-483GS,GB,N

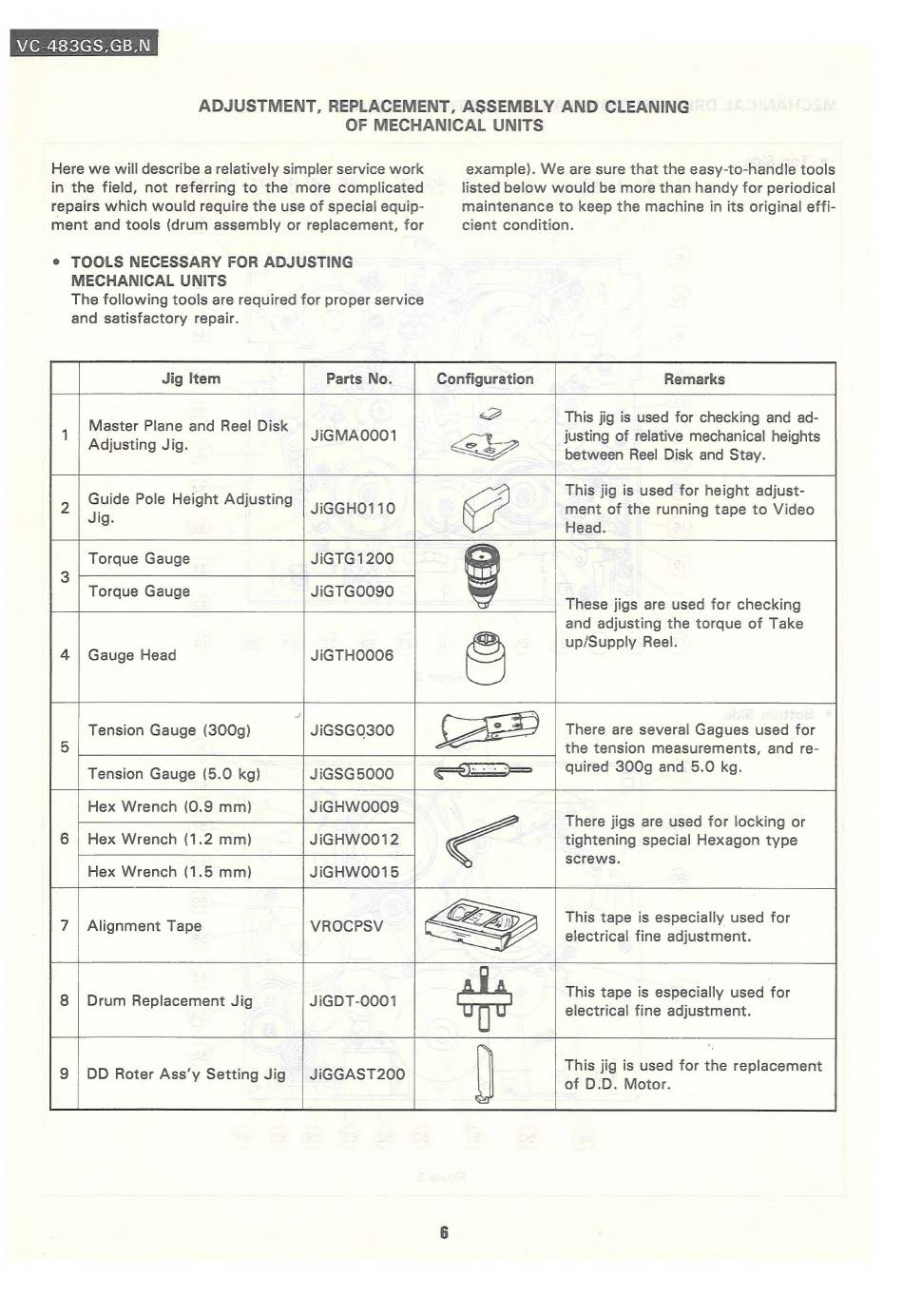

ADJUSTMENT, REPLACEMENT, ASSEMBLY AND CLEANING
OF MECHANICAL UNITS
Here we will describe a relatively simpler service work
in the field, not referring to the more complicated
repairs which would require the use of special equip-
example). We are sure that the easy-to-handle tools
listed below would be more than handy for periodical
maintenance to keep the machine in its original effi-
ment and tools (drum assembly or replacement, for
e TOOLS
NECESSARY
FOR ADJUSTING
MECHANICAL
UNITS
The following tools are required for proper service
and satisfactory repair.
Jig Item
Parts No.
cient condition.
Configuration
Remarks
Master Plane and Reel Disk
Adjusting Jig.
SIGMA
OT
This jig is used for checking and ad-
justing of relative mechanical heights
between Reel Disk and Stay.
Guide Pole Height Adjusting
f
JiGGHO110
Jig.
This jig is used for height adjust-
ment of the running tape to Video
Head.
Torque Gauge
JiGTG1200
Torque Gauge
JiGTGOO90
Gauge Head
JiGTHOOO6
These jigs are used for checking
and adjusting the torque of Take
up/Supply Reel.
Tension Gauge (300g)
JiGSGO300
Tension Gauge (5.0 kg)
JiGSG5000
There are several Gagues used for
the tension measurements,
and re-
quired 300g and. 5.0 kg.
Hex Wrench
(0.9 mm)
JiGHWO0009
Hex Wrench
(1.2 mm)
JiGHW0012
Hex Wrench (1.5 mm)
JiGHWO0015
There jigs are used for locking or
tightening special Hexagon type
screws.
Alignment Tape
VROCPSV
This tape is especially used for
electrical fine adjustment.
Drum Replacement Jig
JiGDT-0001
This tape is especially used for
electrical fine adjustment.
DD Roter Ass'y Setting Jig
| JiGGAST200
This jig is used for the replacement
of D.D. Motor.
