USING YOUR U·VISION
When a transaction is launched in the management system
then the screen shows the transaction mode (figure 8) in
which it can be seen the preselected amount (5).
1
When the trigger of the control valve gun is pulled the fluid
amount being dispensed (6) is displayed. The solenoid valve
open indicator (7) appears on the screen as long as the
U·meter + , U·valve or U·count solenoid valve is open.

BYPASS MODE

The by-pass mode can be activated from a keypad by
means of a key. When this mode is on it is shown on the
screen the information indicated in figure 12.
The open solenoid valve indicator (7) is shown on the
screen and the fluid can be dispensed. The quantity
displayed on the screen (8) indicates the total quantity of
fluid dispensed by the unit since it has been switched to
bypass mode ("total" meter).
SAMOA Industrial, S.A. · Pol. Ind. Porceyo, I-14 · Camino del Fontán, 831 · 33392 - Gijón - Spain · Tel.: +34 985 381 488 · www.samoaindustrial.com
2 3 4

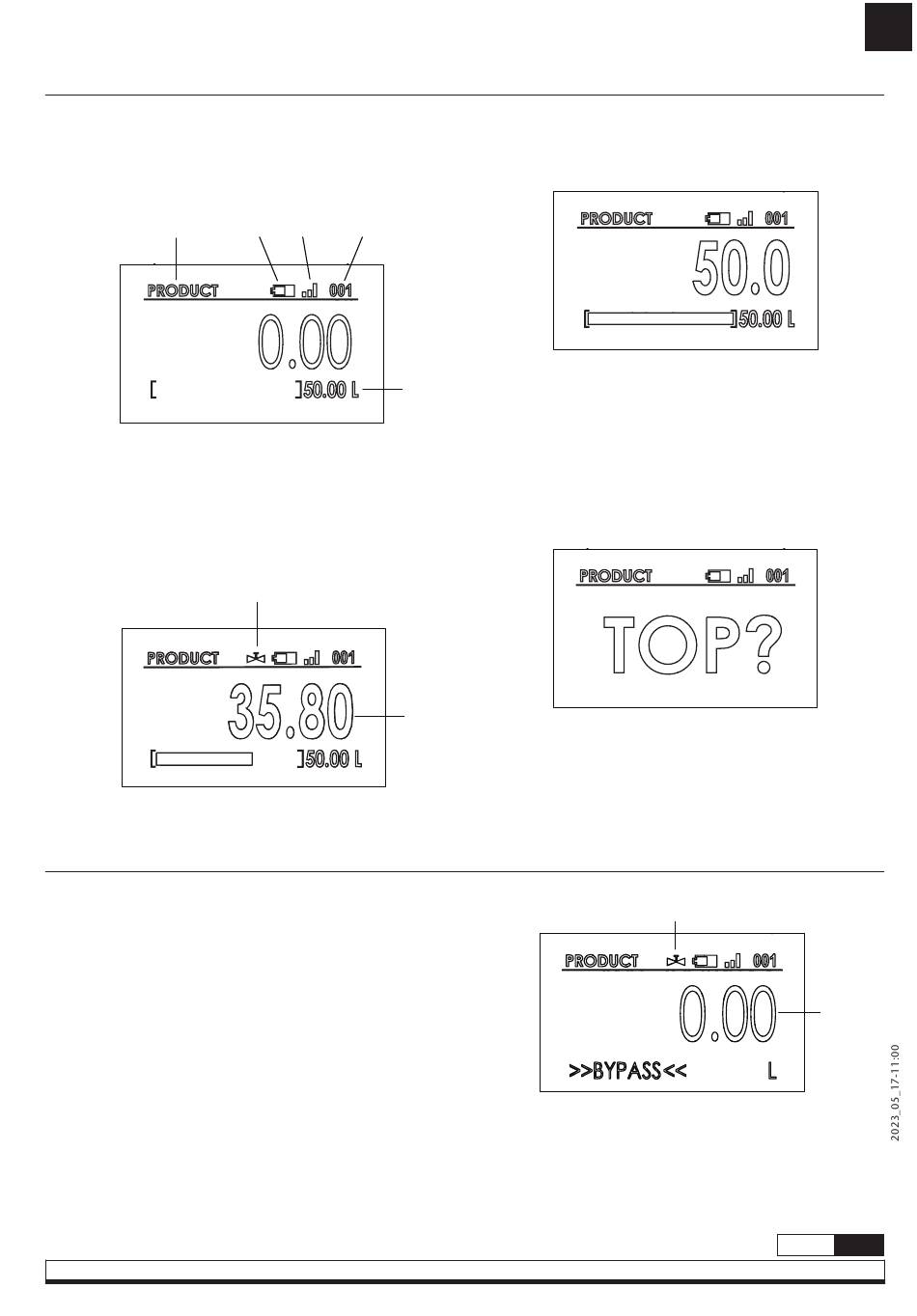

Fig. 8
7
Fig. 9
Once that the transaction is finished the screen shows for
a few seconds the amount dispensed (Fig. 10).
5
After that, depending on the monitoring system setup, the
topping screen (Fig. 11) is shown for a certain amount of
time previously preconfigured in the system. During this
period of time it is possible to make the topping from a
keypad. Once that the topping time limit is reached the
screen returns to the "ready for use mode".
6
Fig. 10
Fig. 11
7
Fig. 12
R. 05/23 838 842
