INTRODUCTION
WARNING: This unit is intented for professional use.
!
Read all the instructions in this manual prior to use.
- This unit is only compatible with the Samoa control gun
provided with outlet flange. In case of doubt or further
detailed information, pleas contact your sales representative.
- This unit can not operate by itself and is intented to
operate with a U·meter + , U·valve or U·count unit.
- In order to operate properly a previous configuration is
needed. Consult the configuration chapter.
- Only use the unit for the purposes for which it is intended.
- This unit has not been approved for use in commercial
transactions.
ASSEMBLY
Follow the next procedure in order to install the U·vision unit on a control gun, either the 1/2" control gun for
dispensing oil or the fluid handle:

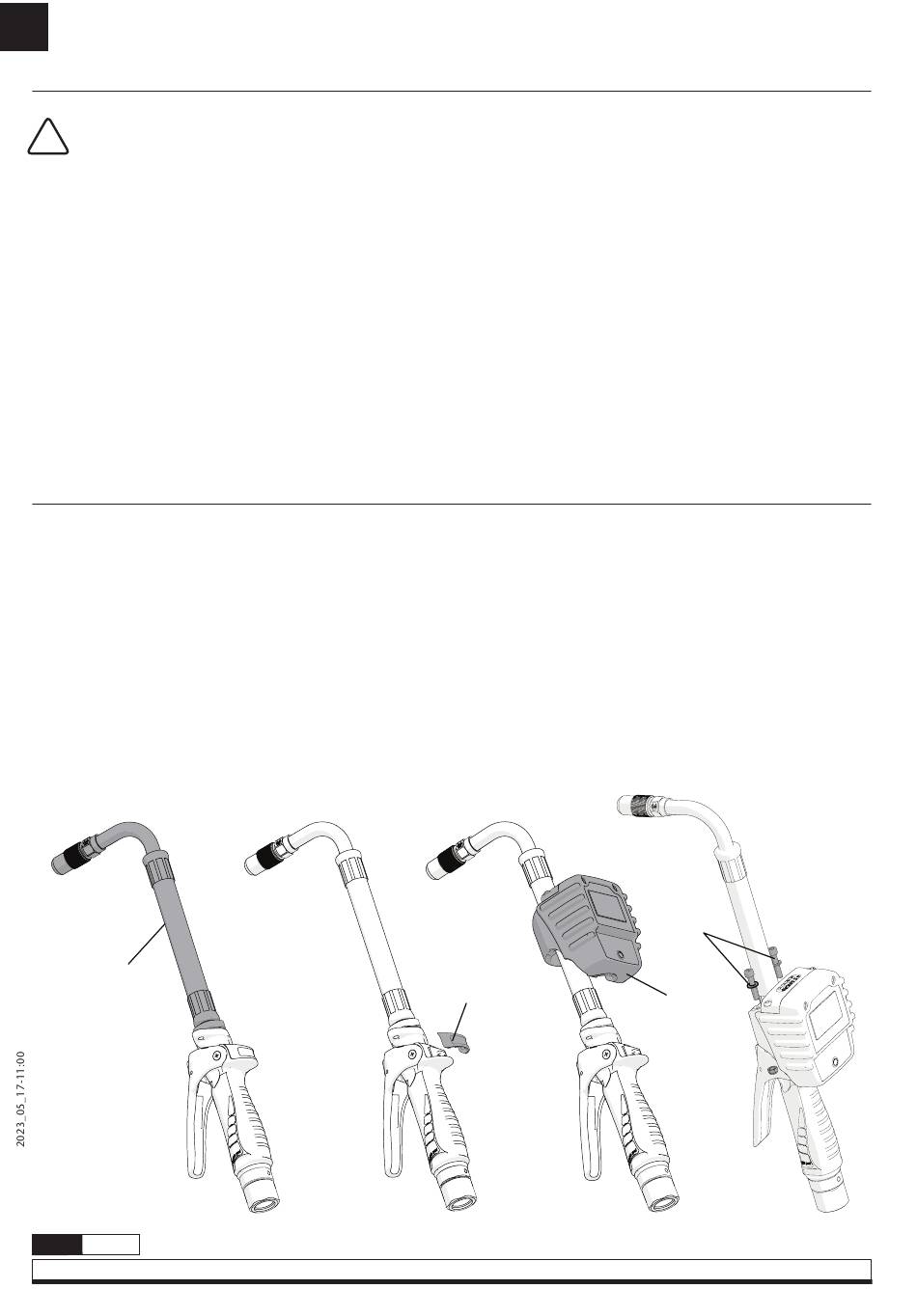

1. Mount the extension outlet (1) if it is not already attached.
2. If the control gun for oil and other fluids has the plastic cover (2) mounted, remove it by means of a screwdriver or similar
tool. The cover is pressure mounted, it should be easily removed. If the flange cover is mounted, remove it as well.
3. Slide the U·vision unit (3) through the extension outlet (1) untill it remains properly fitted onto the flange.
4. Two kits (4) of nut, bolt and washer are supplied with the U·vision unit to attach the unit to the flange as indicated
in the figure. In the case of the control gun for dispensing oil use the kit with the M5x25 mm screws and in the case
of the fluid handle use the kit with the M5x30 mm screws.
1
2
838 842 R. 05/23
SAMOA Industrial, S.A. · Pol. Ind. Porceyo, I-14 · Camino del Fontán, 831 · 33392 - Gijón - Spain · Tel.: +34 985 381 488 · www.samoaindustrial.com
- Do not alter or modify the unit.
- It is mandatory to respect the polarity of batteries and follow
its order of placement as indicated in the batteries cover.
- If a leakage is detected in the batteries protect your eyes
and skin. Cover the batteries housing with a cloth before
opening it to avoid that acid get sprayed onto your skin
or eyes. If acid should spray into your eyes, rinse
immediately with clear water for several minutes.
Consult a doctor immediately afterwards
- Do not mix different battery brands.
- Do not mix new batteries with old ones.
2
