Overview of the X-ray Detector

10.0 Overview of the X-ray Detector
The XRpad2 HWC-M are wireless, light weight, cassette-sized flat panel X-ray detectors for
digital radiography. These X-ray detectors fit into conventional table or wall-stand Bucky, just
like a film-screen cassette.

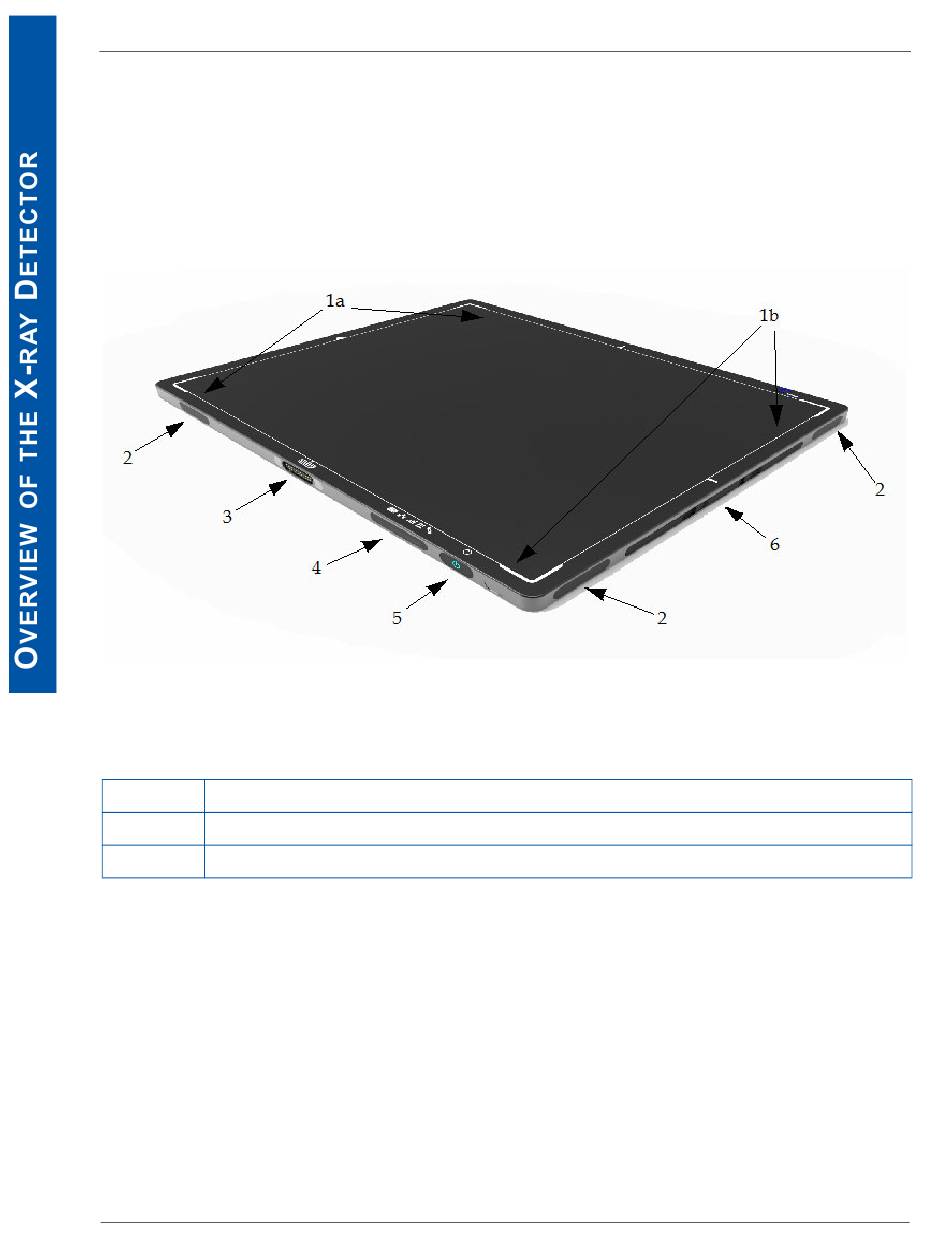

Figure 1 shows the front view of the X-ray detector, and
each feature.
Figure 1 X-ray Detector (Front View)
Table 5 Overview of the X-ray Detector
1 Active Area with Markers: 1a) Top and 1b) Bottom Side of the Image
2 Antenna. Make sure that they are not obstructed
3 Power and communication tethered connector
30
Table 5
www.vareximaging.com
XRpad2 HWC-M Detectors User Manual
includes a brief description of
