Technical Information
Table 7 Input/Output Electrical Specification
I/O Type
Input Digital
Analog Output
range
Output Relay
+24 Vdc

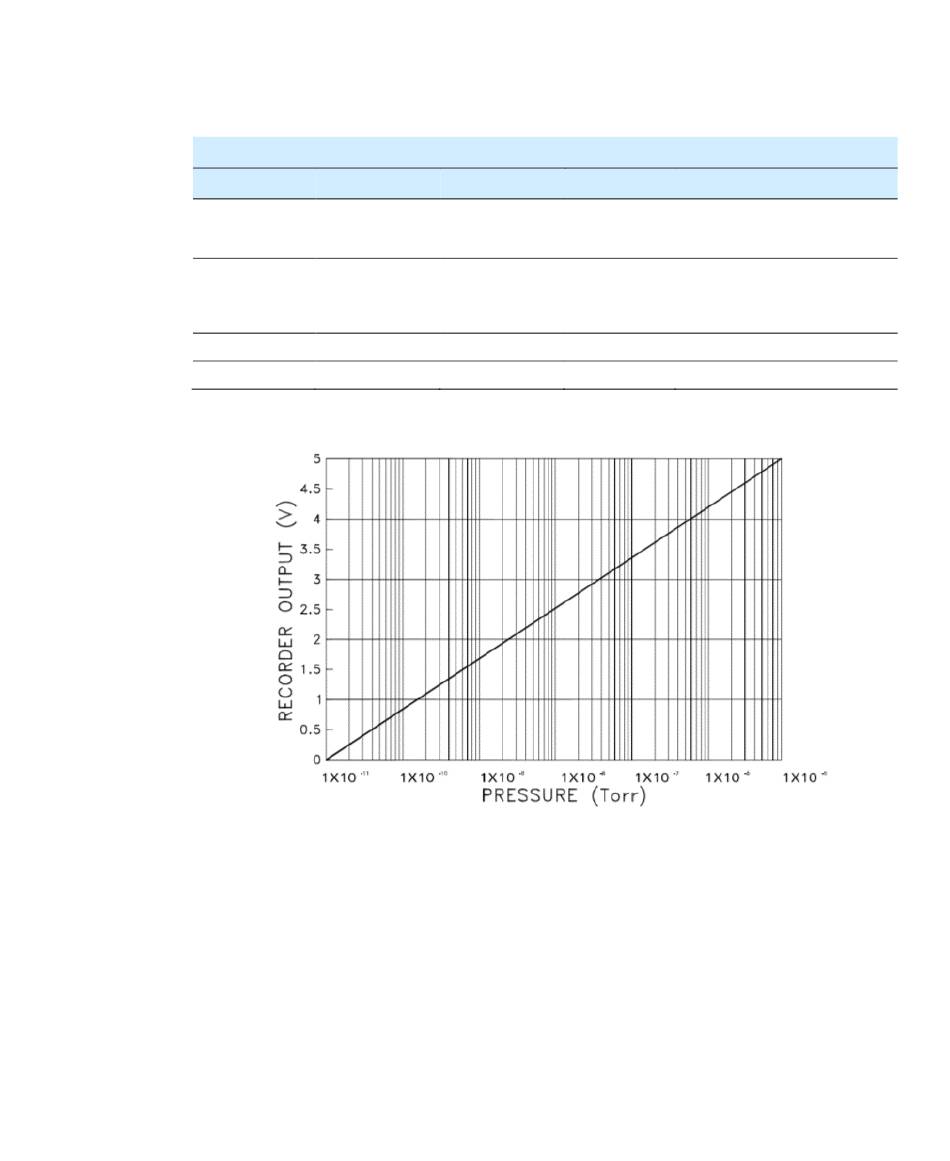

Figure 53 Recorder Output Pressure
190
ON
OFF
Input Digital
V < 12V
I > 2.25mA
Agilent 4UHV Ion Pump Controller User Manual
I/O Ratings
Max Load
Note
1mA
0-5V when proportional
to pressure
0-10V when proportional
to current
24V , 1A max
24V +/- 10% - 60mA max
