Technical Information
9299200
9299201
9299400
9299401
9299210
9299211
9299022
9299402
9299212
9299213
The controller has the following features:
Front panel with keypad and a 4-row display (4x20, 146 x 62 mm) for displaying

the operating values (voltage, current, pressure)
Remote I/O card with DB37 connector

RS232 and RS485 serial communication or profibus option.


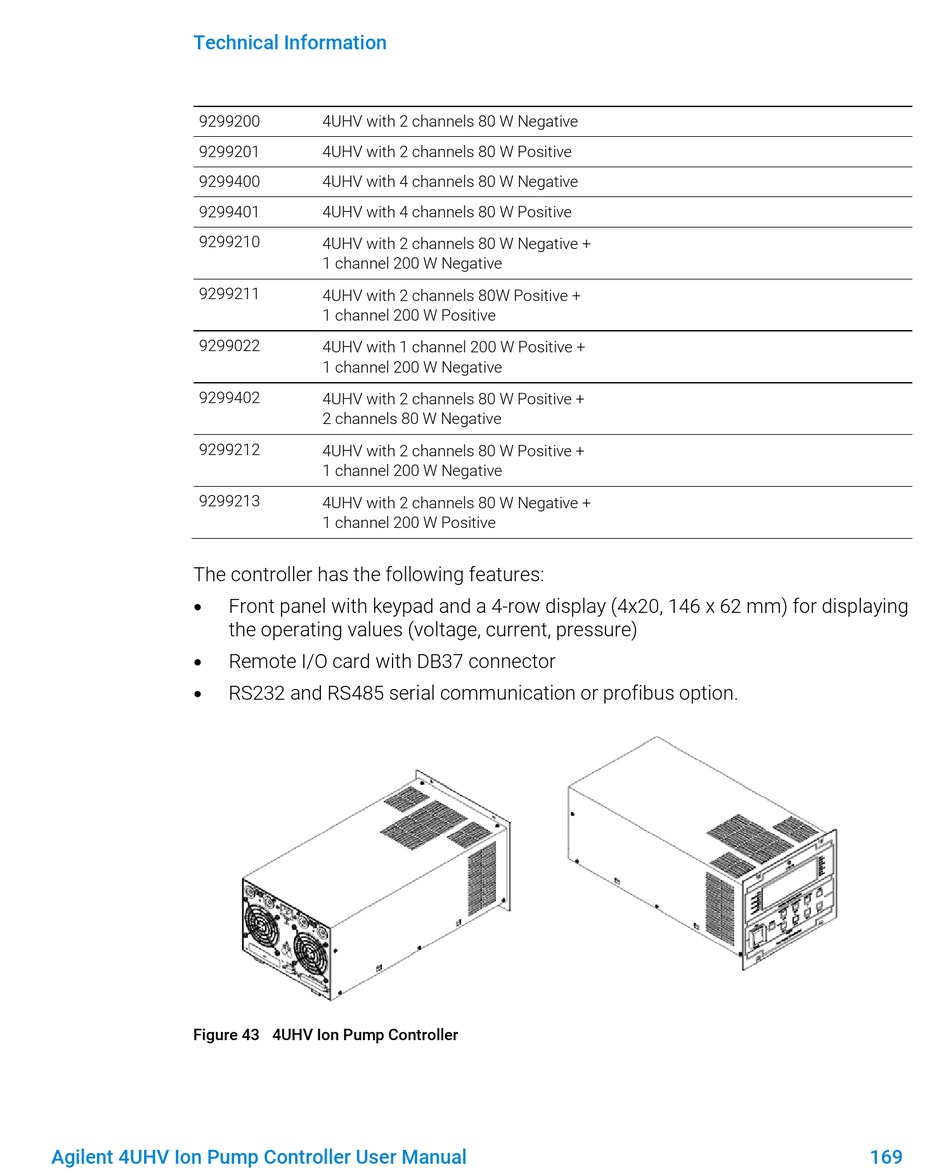

Figure 43 4UHV Ion Pump Controller
Agilent 4UHV Ion Pump Controller User Manual
4UHV with 2 channels 80 W Negative
4UHV with 2 channels 80 W Positive
4UHV with 4 channels 80 W Negative
4UHV with 4 channels 80 W Positive
4UHV with 2 channels 80 W Negative +
1 channel 200 W Negative
4UHV with 2 channels 80W Positive +
1 channel 200 W Positive
4UHV with 1 channel 200 W Positive +
1 channel 200 W Negative
4UHV with 2 channels 80 W Positive +
2 channels 80 W Negative
4UHV with 2 channels 80 W Positive +
1 channel 200 W Negative
4UHV with 2 channels 80 W Negative +
1 channel 200 W Positive
