Technical Information
Fan configuration
If you select "Always ON" in the menu configuration (configure – general – fan ) ,
the two cooling fan in the rear panel are always switched ON.
If you select "Threshold" the two cooling fan are switched OFF if the output current
of each HV channel is below of the 1mA.
Reset standard settings
If "yes" is selected, the settings are restored to the standard unit configuration.

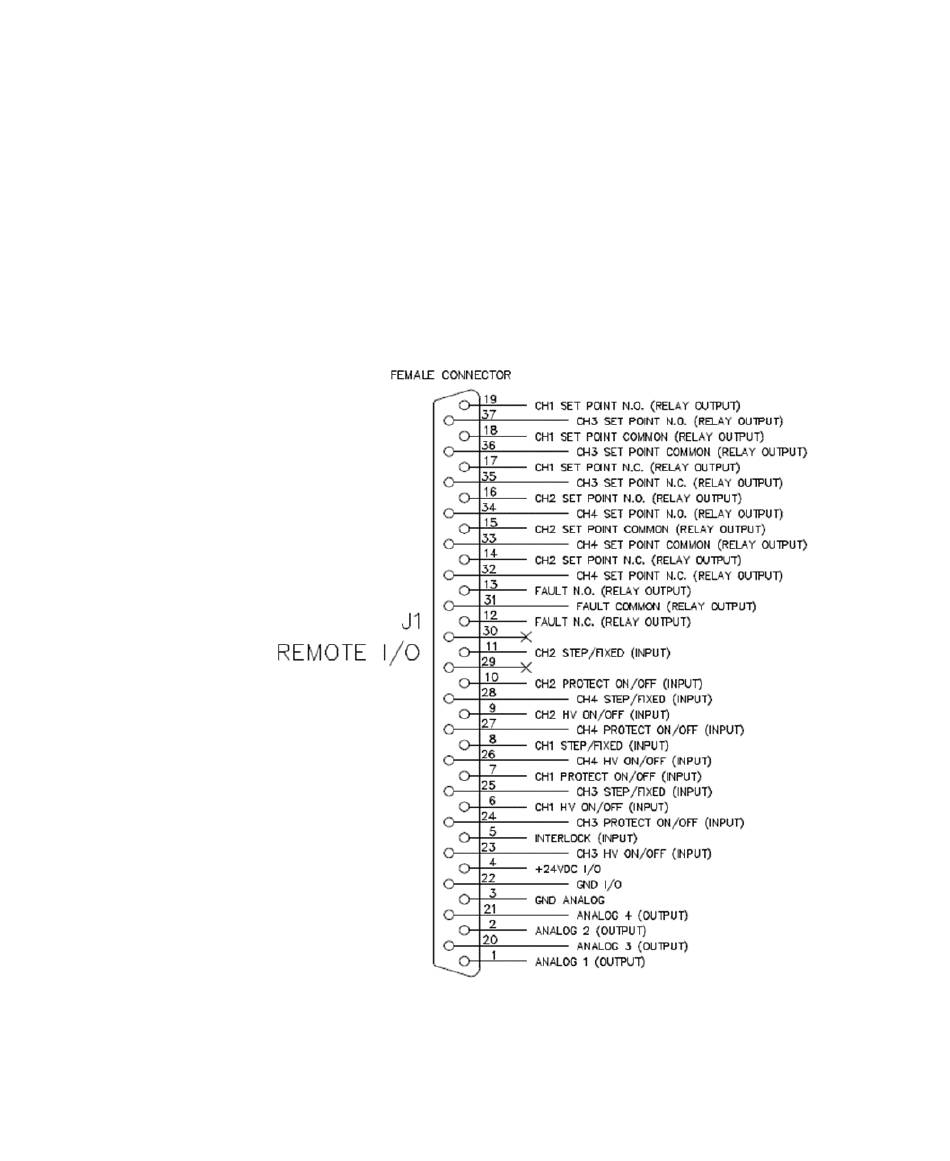

Figure 52 I/O Pin out
