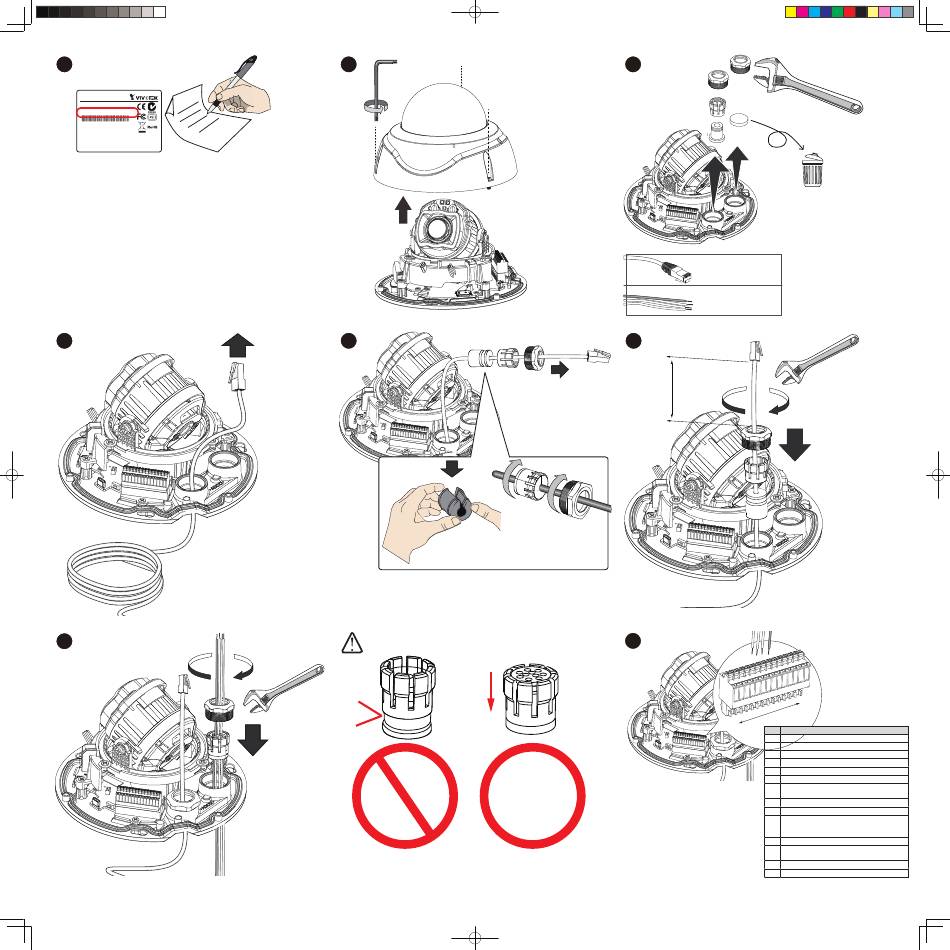

1
Network Camera
Model No: XXXXXX
MAC: 0002D1083236
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Pat. 6,930,709
Made in Taiwan
4
7
625073600G_FD837-HTV_QIG,v1.0_20220410.indd 2
625073600G_FD837-HTV_QIG,v1.0_20220410.indd 2
2
5
3
5~6.3mm
DI/DO: 1.8~2.1mm
6
Approx.
12 cm
8
1
14
#
Name
1
AC 24V*
2
AC 24V*
3
DC 12V IN-
4
DC 12V IN+
5
VIDEO-OUT N
6
VIDEO-OUT P
7
DI- (Common GND for all DI, DO, MIC-IN, and
AUDIO-OUT)
8
DI+ 1
9
DI+ 0
10
DO- 1 (If external devices are powered by
external sources, can use DI- as common
ground)
11
DO- 0
12
DO+ (12V; if used, can be paired with DO- 0 and
DO- 1.)
13
MIC-IN P
14
AUDIO-OUT P
* Optional, available by project request.
