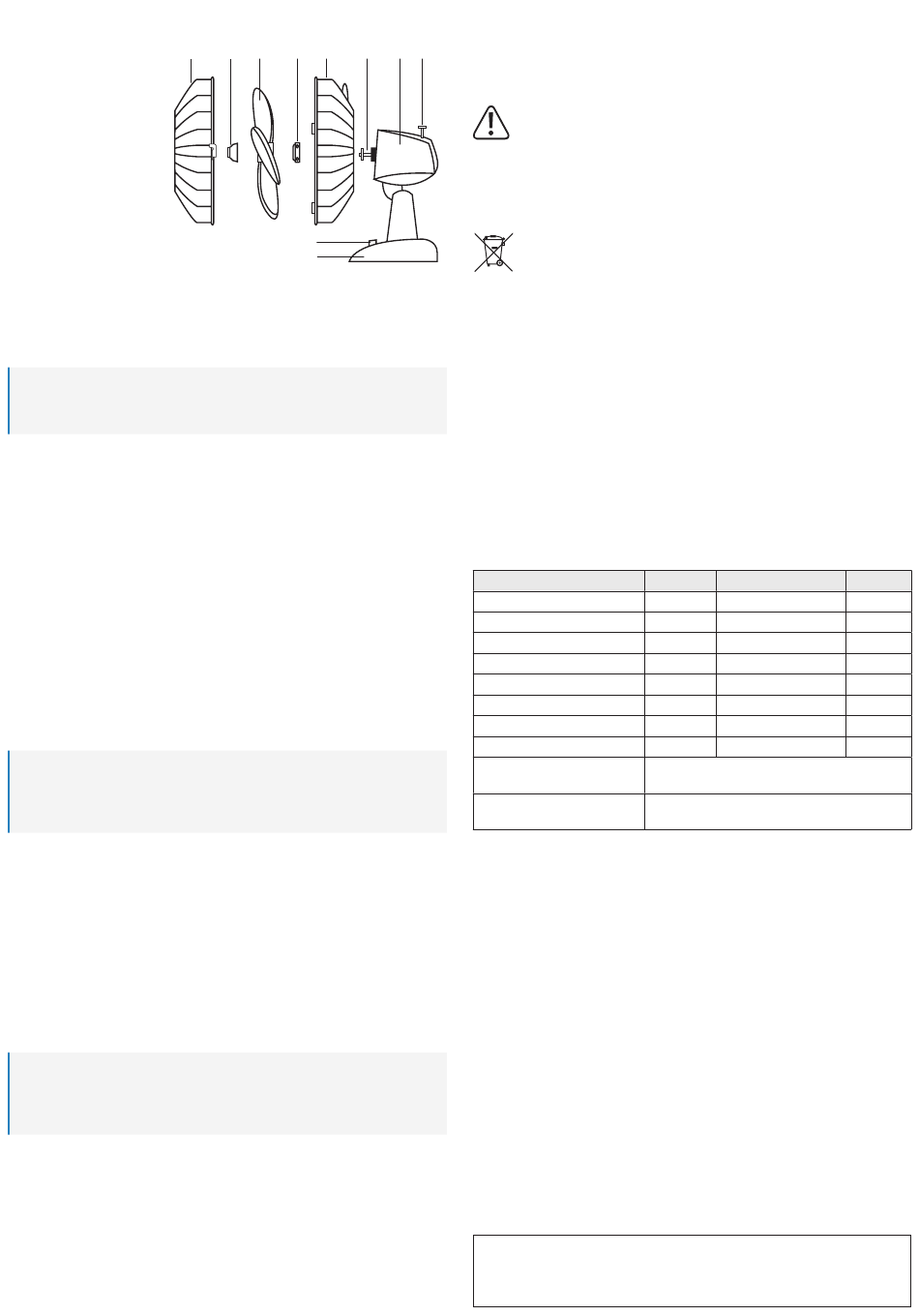

6 Operating elements
1. Front protective cage
2. Cap nut
3. Rotor blade
4. Mounting ring for rear protec-
tive cage
5. Rear protective cage
6. Rotor shaft
7. Motor housing
8. Oscillation switch
9. Function switches
10. Stand
7 Assembly
Carefully unpack the product and remove the packaging. Sort the components, place them
on a clean surface and check that all parts are present as shown under "Operating elements"
(see above).
Important:
– Only turn the mounting ring and cap nut until you feel slight resistance
– Overtightening these parts may damage the thread.
1. Place the main unit with the motor housing (7) into the stand (10) until it clicks into place.
2. Turn the mounting ring (4) anticlockwise and remove it from the rotor shaft (6).
3. Place the rear protective cage (5) onto the motor housing, ensuring that the protective cage
is aligned with the motor housing and that the notches hold it in position. The handle should
be at the top. Place the mounting ring over the rotor shaft onto the thread on the motor
housing and turn it clockwise until the rear protective cage is fixed in place.
4. Place the rotor blade (3) onto the rotor shaft, ensuring that the slots on the back fit into the
pegs on the rotor shaft.
5. Fix the rotor blade in place using the cap nut (2). Hold the rotor blade in place with one hand
and turn the cap nut anticlockwise until it is secure.
6. Check that the rotor blade rotates properly by turning it with your hand. Ensure that there is
no friction; if so, repeat the previous steps again.
7. Remove the fixing screw and nut from the front protective cage (1). Attach the front protec-
tive cage to the rear protective cage, ensuring that the holes for the fixing screw are on
top of each other. Tighten the screw with a crosshead screwdriver. Place the nut onto the
opposite side to secure the screw in place, and then lock the clips.
8 Operation
Important:
– Keep the fan away from devices that generate heat.
– Do not place the product under vases or flowerpots to prevent water dripping onto the
product.
1. Ensure that the fan is placed on a flat and stable surface to prevent accidents.
2. Ensure that the fan is turned off. Press the function switch 0 (9) to turn the fan off. Insert the
mains plug into a suitable mains socket.
3. Set the desired fan speed using the function switches.
4. Change the air flow by carefully moving the motor housing (7) up or down. Do not use ex-
cessive force when moving the motor housing. Do not attempt to move the motor housing
further than it is intended to go.
5. Push the oscillation switch (8) downwards. The fan swivels left and right. Pull the oscillation
switch upwards to stop the oscillation.
6. Press the function switch 0 to turn off the fan.
9 Maintenance and cleaning
Important:
– Do not use aggressive cleaning agents, rubbing alcohol or other chemical solutions.
They damage the housing and can cause the product to malfunction.
– Do not immerse the product in water.
9.1 General information
Turn off the fan before cleaning and remove the mains plug from the mains socket.
Do not use any abrasive or chemical cleaning materials.
Wipe the fan components (only the protective cage and the stand) regularly with a dry
dustcloth.
If you are not going to use the product for a long time, cover it and store it in a dry location
away from direct sunlight.
1
2
3
4
5
9
8
10
9.2 Cleaning the rotor blade and protective cage
If a significant amount of dust accumulates on the rotor blade (3), the fan can be disas-
sembled by following the steps in "Assembly" in the reverse order.
6
7
8
The rear and front protective cages and the rotor blade can be wiped clean using a slightly
damp cloth.
Danger of injury! The rotor blade has sharp edges.
Dry all components carefully after cleaning and before reassembly.
Assemble the product in the reverse order.
10 Disposal
This symbol must appear on any electrical and electronic equipment placed on the
EU market. This symbol indicates that this device should not be disposed of as
unsorted municipal waste at the end of its service life.
Owners of WEEE (Waste from Electrical and Electronic Equipment) shall dispose
of it separately from unsorted municipal waste. Spent batteries and accumulators,
which are not enclosed by the WEEE, as well as lamps that can be removed from
the WEEE in a non-destructive manner, must be removed by end users from the
WEEE in a non-destructive manner before it is handed over to a collection point.
Distributors of electrical and electronic equipment are legally obliged to provide free take-back
of waste. Conrad provides the following return options free of charge (more details on our
website):
in our Conrad offices
at the Conrad collection points
at the collection points of public waste management authorities or the collection points set
up by manufacturers or distributors within the meaning of the ElektroG
End users are responsible for deleting personal data from the WEEE to be disposed of.
It should be noted that different obligations about the return or recycling of WEEE may apply in
countries outside of Germany.
11 Technical data
Description
Maximum fan flow rate
Fan power input
Service value
Standby power consumption
Off power consumption
Fan sound power level
Maximum air velocity
Seasonal electricity consumption
Measurement standard for service
value
Contact details for obtaining more
information
Operating voltage ......................... 220 – 240 V/AC, 50 Hz
Protection class ............................ II
Cable length ................................. approx. 1.6 m
Operating/storage conditions ........ -5 to +45 °C, 0 – 95 % RH
Cage diameter .............................. approx. 34 cm
Power consumption ...................... 40 W
Oscillation range ........................... approx. 85 °
Tilt angle ....................................... approx. 25 °
Air flow rate ................................... approx. 1535.4 m³/h
Speed levels ................................. 3
Dimensions (L x W x H) ................ approx. 34 x 25 x46 cm
Weight .......................................... approx. 1.75 kg
Sound level ................................... 51.08 dB
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com). All rights in-
cluding translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data
processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited. This publication
represents the technical status at the time of printing.
Copyright 2022 by Conrad Electronic SE.
Symbol
Value
F
25.59
P
30.30
47
S
0.84
V
P
--
SB
P
0
OFF
L
51.08
WA
C
2.00
Q
9.70
EN IEC 60879:2019
Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240
Hirschau
*2525730_v2_1022_02_dm_mh_EN
Unit
m
/min
3
W
m
/min/W
3
W
W
dB(A)
meters/sec
kWh/a
