6. ASSEMBLY, INSTALLATION AND COMMISSIONING
6.
Assembly, installation and commissioning
490655499-2
An optimally assembled and installed product ensures a safe and continuous operation.
This chapter provides instructions on the mounting, hydraulic and electrical installation
with the subsequent commissioning.
6.1
Rotating the display (only CS1x2x)
EN
490724747-2

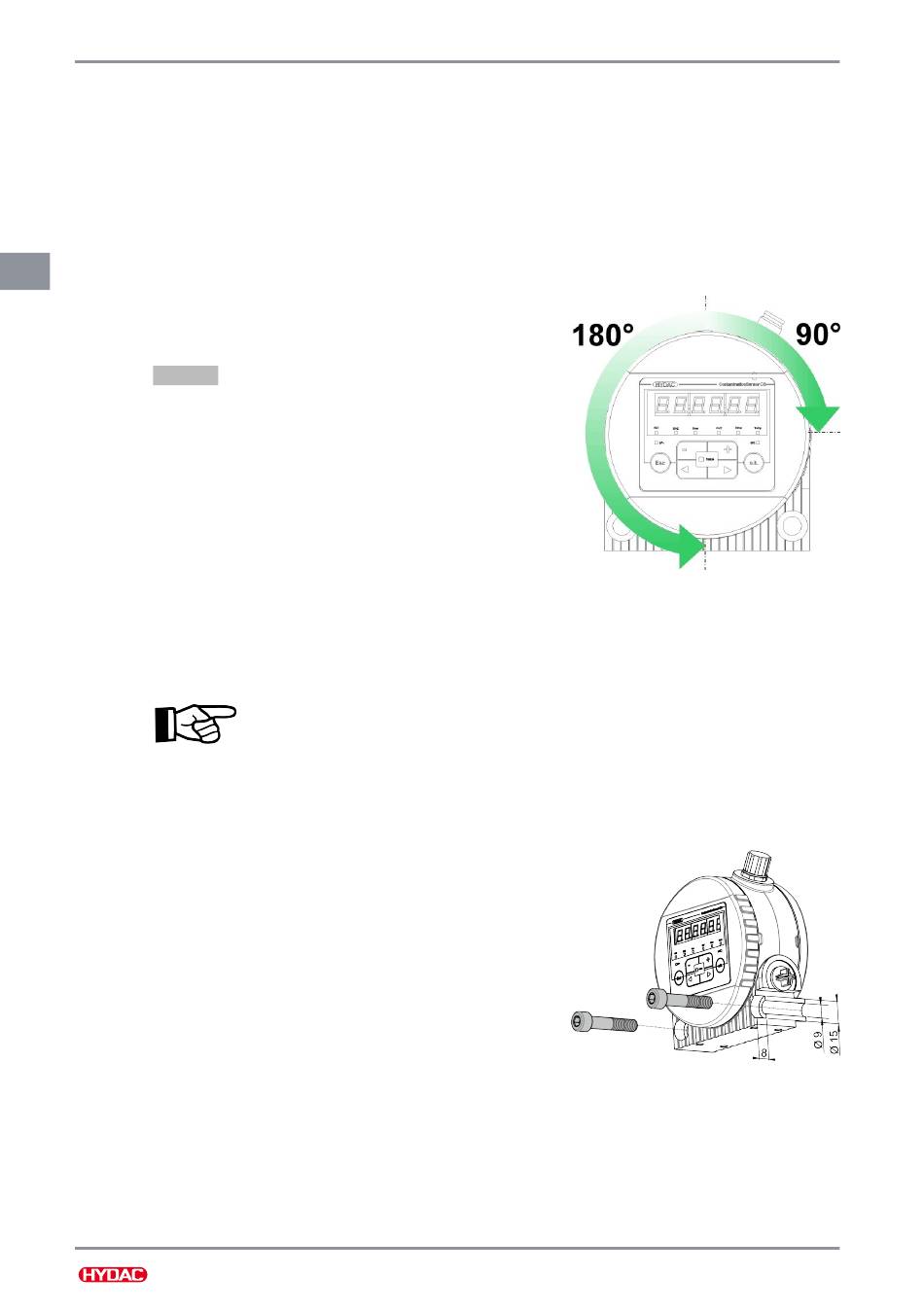

The display can be continuously rotated by a total
of 270°; 180° counterclockwise and 90° clockwise.
Rotate the display by hand in the direction desired.
NOTICE
6.2
Assembling / Fastening the sensor
490718475-2
This chapter provides the different permitted installation types for the
ContaminationSensor.
Mount the sensor as shown in the following examples, for drilling template see ▶Sec. 3
"Dimensions".
Mounting on a wall
Mount on a wall with two cheese-head screws with
an M8 internal hexagon measuring at least 40 mm
in length according to ISO 4762.
Do not use any tools to rotate the display.
When selecting the location, take the environmental conditions such the
temperature, dust, water, etc. into account.
Fig. 5: Wall mounting
