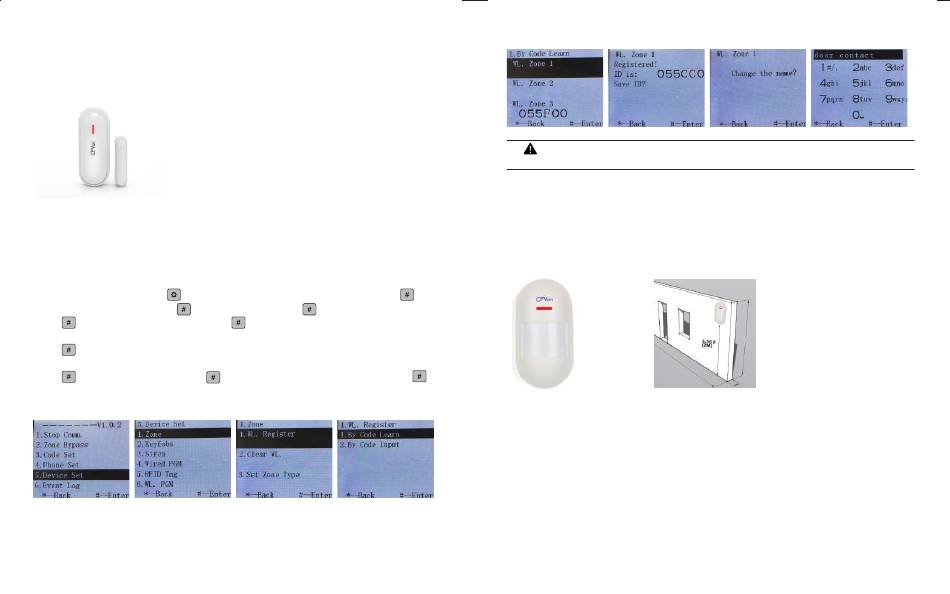

CPVan CP5 Installationsanleitung Seite 4

- Now, at the desired (cleaned) location, stick it to the door/door frame, or to the window/
window frame. (Note: the Magnet has a triangle on it, this should be closest to the Contact) &
The space between the Magnet & Contact should be no longer than 10mm.
- Once installed, test that it works by arming your system & then open
the door or window. You should hear the alarm. If not, Repeat steps for any additional Door/
Window Contacts you have( the distance better within 150ft between CP5 panel and Door/
Window Contacts.
Adding Your Door/Window Contacts.into CP5 panel
From the Home Screen, press Then Input the Main user password "0808" Press
-- Scroll to " 5.Device Set", Press , Select " 1.Zone", Press
Press , Select " 1.By Code Learn", Press
Zone 3 &etc), it's total in 46 zones. Select any zone, Let's Select "WL, Zone 1", as example.
Press , Then Make your door/window contact and magnet separate to send signal to CP5
panel( remove the insulating trip from door/window contact first). it will shows " Registered!",
Press to "Change the name" Press
Below Pictures For Reference
Questions? Contact us at E-Mail info@cpvans.com
, Select "1.WL.Register",
, it shows" WL.Zone1, WL.Zone 2, WL
to edit the name at your side. Finally, Press
-04-
There Is No Tom/Bottom, So You Can Mount The Contact Or Magnet To The Door or Doorframe.
As Long As The Triangles Are Closest To Each Other.
Note
Installing Your Motion Detector
Location
- The most common false alarm is caused by a Motion Detector that can often be prevented
by choosing a better location. With a 90 degree vertical detection angle, 110 degree horizontal
viewing angle & a detection range of up to 30 ft (distance of object from motion detector). We
recommend not pointing Motion Detectors directly at windows, or in direct sunlight.
.
- Using the provided screws, hang the Mounting Plate approximately 6ft (2m) from the floor.
- Slide the Ball into the slot on the back of the Motion Detector. Remove the battery tab & turn
the power switch to'ON'.
- With the Ball attached to the Motion Detector, firmly press the Ball into the Socket on the
Mount hanging from the wall. Adjust for best angle.
- To test your Motion Detector, arm your system & then walk in front of the Motion Detector. An
alarm will sound. disarm your system. If not, Repeat for any additional Motion Detectors.
Questions? Contact us at E-Mail info@cpvans.com
-05-
