Electric Connection - SUEVIA EASYCLEANER MINI Montageanleitung

Adjustment of force of automatic stop:
X4
Starting
impulse
08.2022 · Technische Änderungen vorbehalten · Technical data can be changed without prior notice · Des changements techniques reservés · Мы оставляем за собой право на технические изменения и
14
дополнения, а также возможные опечатки. · 104.8171

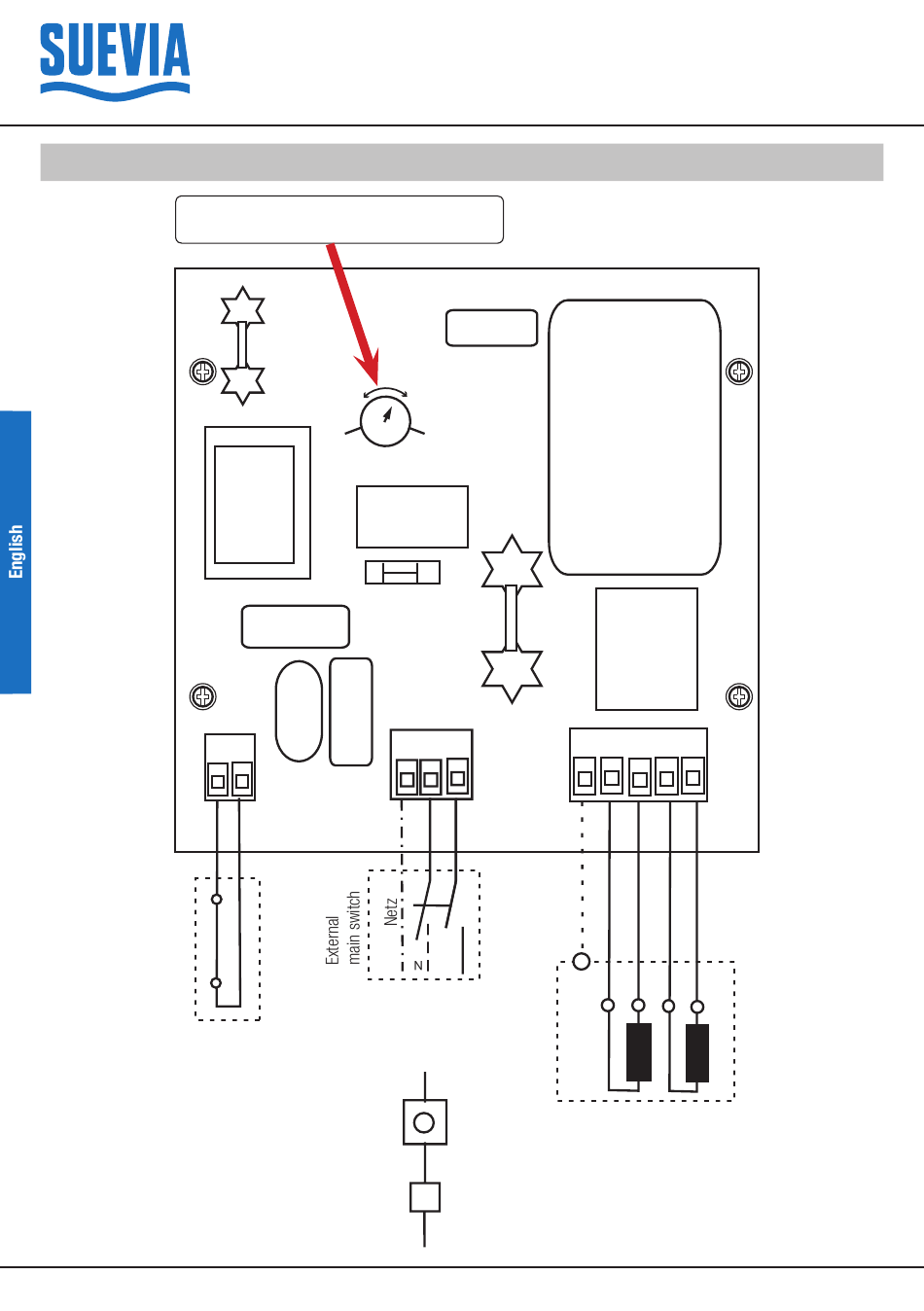

Electric Connection

factory pre-adjusted 4 A
max.
P1
F1
1 2
PE
PE
230 V AC 50/60 Hz
Fusible cut-out:
Emergency shutt-off switch
provided by the customer
RCD
230 V / 0,03 A
provided by the customer
min.
X2
1 2 3
X1
N L1 PE
PE
L1
Supply line:
max. 16 A
Single-phase A.C.motor
Voltage: 230 V
Ampere: 3,2 A
Frequency: 50/60 Hz
Power consumption: 0,37 kW
Montageanleitung
Mounting Instructions
Instructions de montage
Инструкция по монтажу
1 2 3 4 5
N L1 C1 C2
W2 W1 U1 U2
