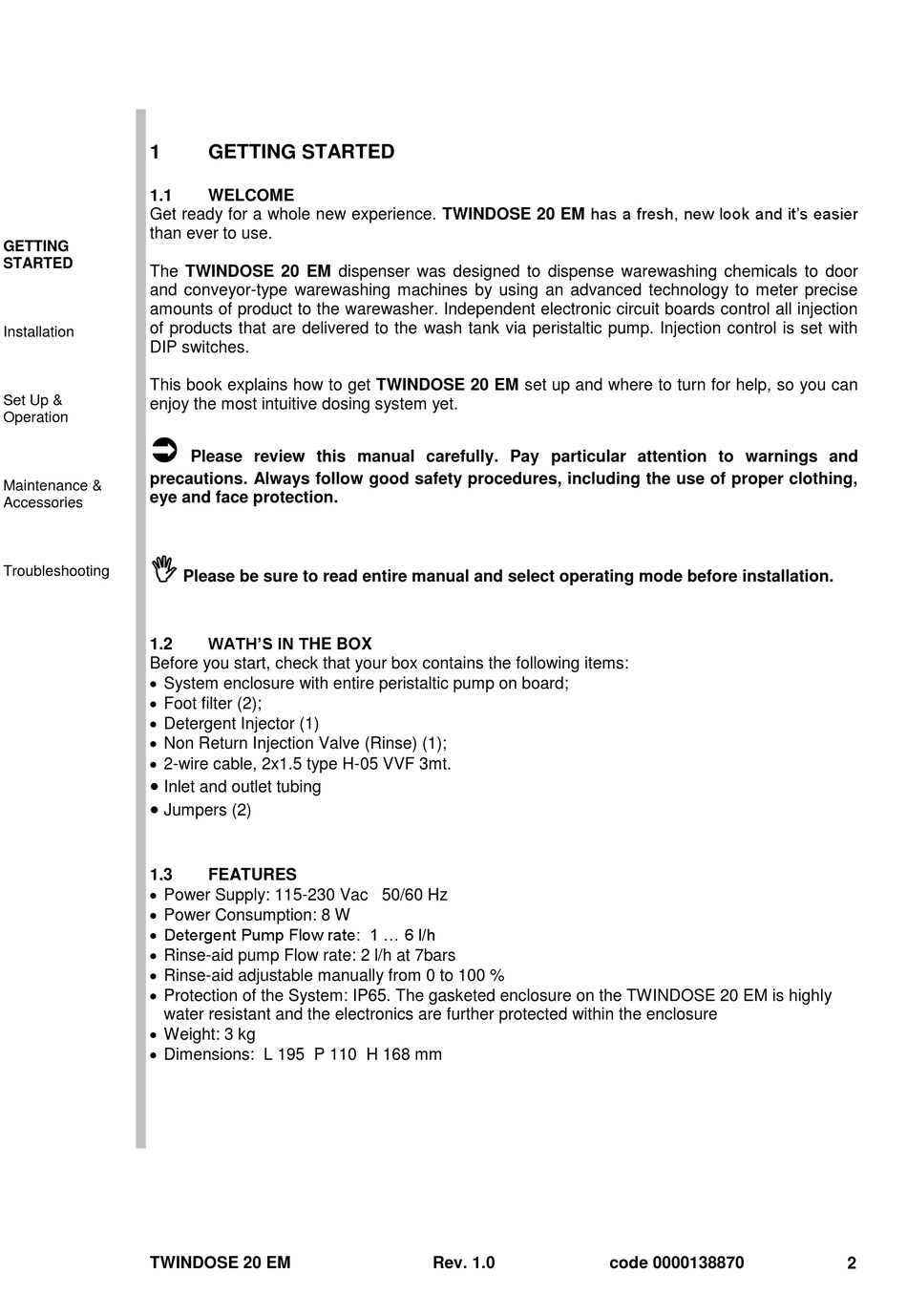

Getting Started; Wath's In The Box - REPA TWINDOSE 20 EM Handbuch

1
1.1
Get ready for a whole new experience. TWINDOSE 20 EM has a fresh, new look and it's easier
than ever to use.
GETTING
STARTED
The TWINDOSE 20 EM dispenser was designed to dispense warewashing chemicals to door
and conveyor-type warewashing machines by using an advanced technology to meter precise
amounts of product to the warewasher. Independent electronic circuit boards control all injection
of products that are delivered to the wash tank via peristaltic pump. Injection control is set with
Installation
DIP switches.
This book explains how to get TWINDOSE 20 EM set up and where to turn for help, so you can
Set Up &
enjoy the most intuitive dosing system yet.
Operation

precautions. Always follow good safety procedures, including the use of proper clothing,
Maintenance &
eye and face protection.
Accessories

Troubleshooting
1.2
Before you start, check that your box contains the following items:
• System enclosure with entire peristaltic pump on board;
• Foot filter (2);
• Detergent Injector (1)
• Non Return Injection Valve (Rinse) (1);
• 2-wire cable, 2x1.5 type H-05 VVF 3mt.
•
Inlet and outlet tubing
•
Jumpers (2)
1.3
• Power Supply: 115-230 Vac 50/60 Hz
• Power Consumption: 8 W
• Detergent Pump Flow rate: 1 ... 6 l/h
• Rinse-aid pump Flow rate: 2 l/h at 7bars
• Rinse-aid adjustable manually from 0 to 100 %
• Protection of the System: IP65. The gasketed enclosure on the TWINDOSE 20 EM is highly
water resistant and the electronics are further protected within the enclosure
• Weight: 3 kg
• Dimensions: L 195 P 110 H 168 mm
TWINDOSE 20 EM

GETTING STARTED

WELCOME
Please review this manual carefully. Pay particular attention to warnings and
Please be sure to read entire manual and select operating mode before installation.

WATH'S IN THE BOX

FEATURES
Rev. 1.0 code 0000138870 2
