Mounting

4.
The ELTROTEC SuperNova LED has a screw thread, that can be screwed to universal standard optical fiber
connectors from Storz/ACMI.
4.1
Do not over-tighten.
NOTICE
> Stripped thread
> Damage of the light source

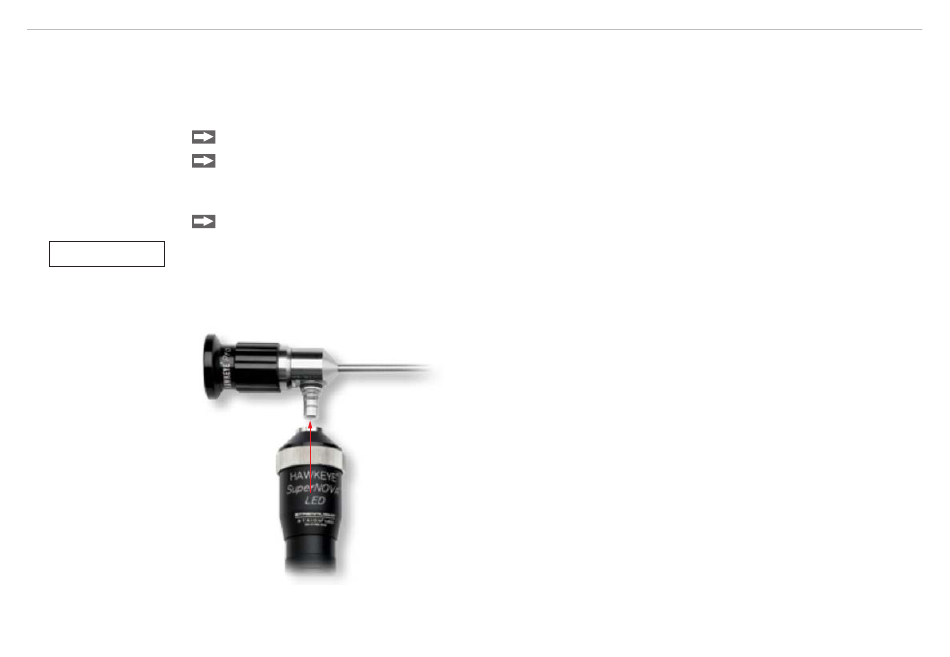

Fig. 1 Unscrewing of the LED lamp to an endoscope
ELTROTEC SuperNova LED
Mounting

Installing and Uninstalling the SuperNova LED

Attach the SuperNova LED with the screw thread on the endoscope.
Keep the SuperNova LED in such a way that the housing fits comfortably in one hand and the light
source can be screwed easily counterclockwise onto the optical fiber connection of the endoscope, see
Fig. 1.
Remove the SuperNova LED from the endoscope by rotating the light source counterclockwise.
