• high compatibility and offsite backup:
compatible with all major IP cameras that are ONVIF certified
•
added NAS function to back up all kind of IP cameras on the internet
•
works with free Central Management System (CMS) software for offsite backup
•
local and remote control completely independent
•
HDMI video output resolution up to 1080p
•
• automatic integrated Dynamic Domain Name Service (DDNS): free service
• USB mouse: incl.
IR remote control: incl.
•
Optional hardware
hard disk: HD500GB/S, HD1TB/S, HD2TB/S
•
monitor: MONSCA9
•
• HDMI cable: Professional or Premium
suitable IP cameras: CAMIP11, CAMIP12, CAMIP16, CAMIP17, CAMIP18, CAMIP19
•
also compatible with: CAMIP9, CAMIP13, CAMIP14 & ONVIF cameras
router: EM4544, EM4543, EM4571, PCRT1
•

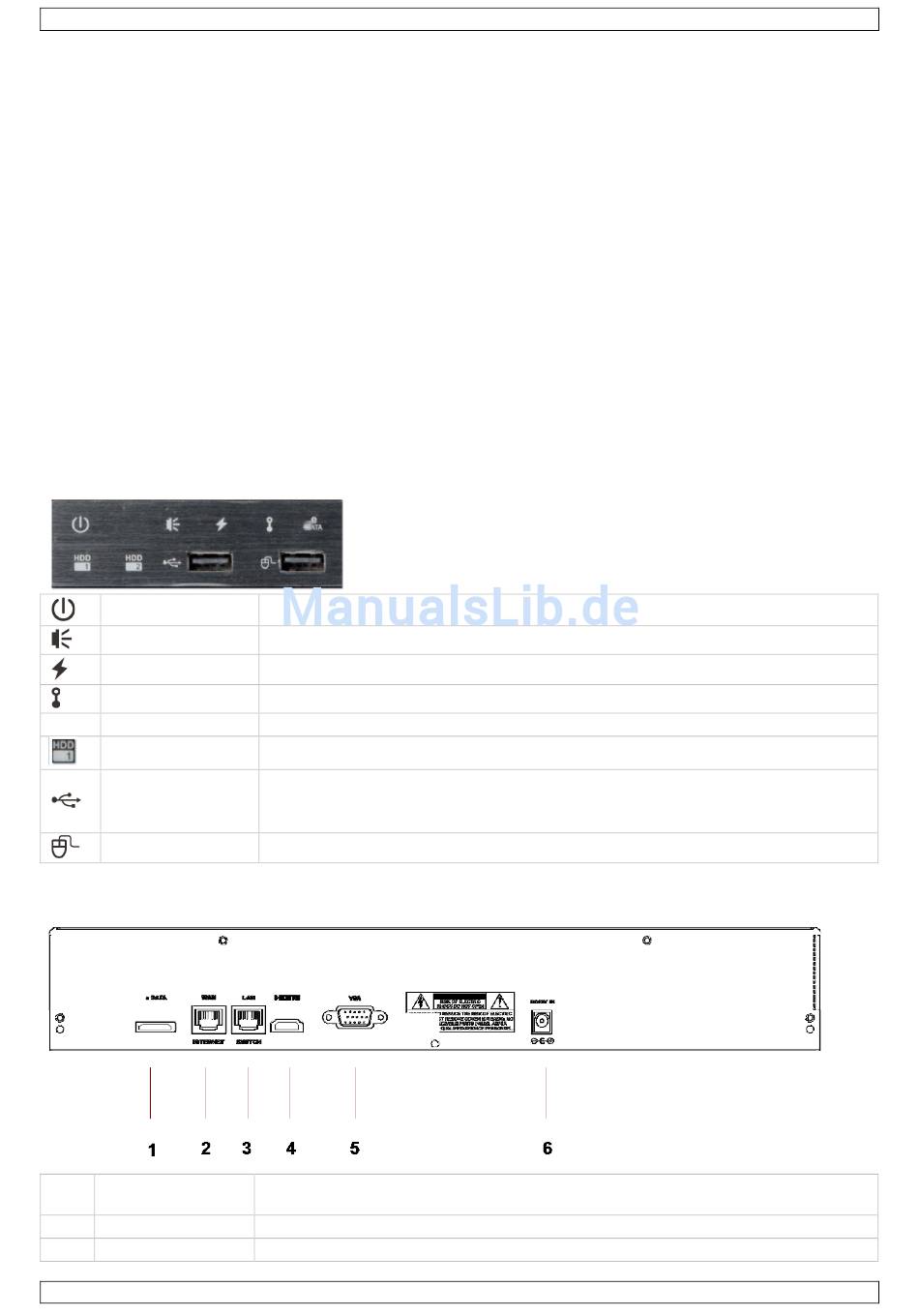

5. Overview

Front panel

Power
alarm
wan
lan
SATA
HDD1 and HDD2
USB port
mouse port
Back panel
1 eSATA
2
WAN
3
LAN
V. 01 – 14/04/2014
LED indicator: the NVR is switched on
LED indicator: an alarm event occurs
LED indicator: the NVR is connected to internet
LED indicator: the NVR is connected to the LAN
LED indicator: SATA hard disk is active
LED indicator: up to 2 hard disks are installed in the NVR and connected well
Insert a compatible USB flash drive for video backup.
Note: For the list of compatible USB flash drives, refer to the full manual on the
CD-ROM.
Insert a mouse (included).
This port is used to connect a storage device supporting eSATA interface; for
instance, an external disk array.
Connect to internet via an 8P8C (RJ45) network cable
Connect to local IP cameras via an 8P8C (RJ45) network cable.
NVR5
4 ©Velleman nv
