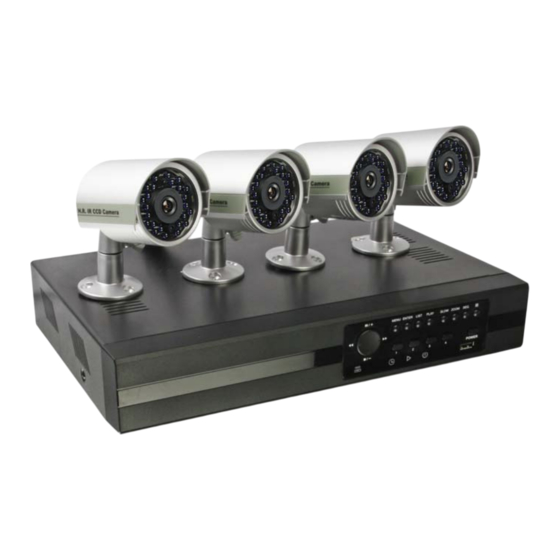

CCTVPROM5
ALL-ROUND SECURITY SET
MULTIFUNCTIONELE BEVEILIGINGSSET
ENSEMBLE VIDÉOSURVEILLANCE MULTIFONCTIONNEL
JUEGO DE VIDEOVIGILANCIA MULTIFUNCIÓN
UNIVERSELLER ÜBERWACHUNGSSATZ
QUICK INSTALLATION GUIDE
BEKNOPTE INSTALLATIEHANDLEIDING
GUIDE D'INSTALLATION RAPIDE
GUÍA RÁPIDA
SCHNELLEINSTIEG
4

10

16

22

28


Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für Velleman CCTVPROM5

  • Seite 1 CCTVPROM5 ALL-ROUND SECURITY SET MULTIFUNCTIONELE BEVEILIGINGSSET ENSEMBLE VIDÉOSURVEILLANCE MULTIFONCTIONNEL JUEGO DE VIDEOVIGILANCIA MULTIFUNCIÓN UNIVERSELLER ÜBERWACHUNGSSATZ QUICK INSTALLATION GUIDE   BEKNOPTE INSTALLATIEHANDLEIDING   GUIDE D’INSTALLATION RAPIDE   GUÍA RÁPIDA   SCHNELLEINSTIEG  ...
  • Seite 2 CCTVPROM5 1 DC 12V input terminal 2 Video output connector 1 DC 12V ingangsaansluiting 2 Video-uitgangsaansluiting 1 Connexion d’entrée CC 12V 2 Connexion de sortie vidéo 1 DC 12V-Eingangsanschluss 2 Video-Ausgangsanschluss 1 Conexión de entrada CC 12V 2 Conexión de salida de vídeo...
  • Seite 3 CCTVPROM5 16/09/2009 ©Velleman nv...
  • Seite 4: Safety Instructions

    If in doubt, contact your local waste disposal authorities. Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer. Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
  • Seite 5 CCTVPROM5 4. Features DVR4L4 • H.264 video compression technology highly improves video quality for live viewing and recording recording file size is minimized for longest recording time • multiplex: allows live display, recording, playback, and backup at the same time •...
  • Seite 6 CCTVPROM5 the setting in the menu. = SLOW + ZOOM AUDIO Press SLOW and ZOOM simultaneous to select live or play-back sounds = MENU + ENTER KEY LOCK Press MENU and ENTER simultaneously to lock the front panel keys. Press any key followed by the DVR password to unlock the keys.
  • Seite 7: Preliminary Settings

    CCTVPROM5 7. Preliminary settings • Make sure the connected cameras are on and press the POWER button to switch on the DVR. It takes about 10 to 15 seconds to start up. Setting date and time • Before using the DVR the time and date should be set to get a valid time stamp.
  • Seite 8: Technical Specifications

    CCTVPROM5 Note that actual screen icons might differ slightly from the ones shown above. Recording • Check whether the camera(s) is (are) properly connected and a HDD is present inside the device. • When the auto-recording and pre-alarm functions are enabled, the device will start recording images.
  • Seite 9 0°C - 45°C Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulted from (incorrect) use of this device. For more info concerning this product, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.
  • Seite 10: Beknopte Installatiehandleiding

    Trek de stekker uit het stopcontact (trek niet aan de kabel!) voordat u het toestel reinigt en als u het niet gebruikt. 3. Algemene richtlijnen Raadpleeg de Velleman® service- en kwaliteitsgarantie achteraan de handleiding. Enkel voor gebruik binnenshuis. Bescherm dit toestel tegen regen, vochtigheid en opspattende vloeistoffen.
  • Seite 11 CCTVPROM5 4. Eigenschappen DVR4L4 • videocompressie H.264 verbeterde videokwaliteit voor monitoring en opnames langere opnameduur dankzij een verminderde bestandgrootte • multiplexing: simultane liveweergave, opname, playback en back-up • back-upfunctie: ondersteunt back-up via USB 2.0 flash drive • opname door bewegingswaarneming...
  • Seite 12 CCTVPROM5 Druk tijdens het instellen op om de instellingen te wijzigen. = SLOW + ZOOM AUDIO Druk gelijktijdig op SLOW en ZOOM om de geluidsopties te selecteren. = MENU + ENTER TOETS- Druk gelijktijdig op MENU en ENTER om de toetsen te vergrendelen. Druk op een VERGR.
  • Seite 13 CCTVPROM5 7. Basisinstellingen • Schakel de aangesloten camera’s en de DVR in. De opstarttijd duurt 10 à 15 seconden. Instellen van het uur en de datum • Stel voor het eerste gebruik de datum en het uur in. • Druk op MENU en geef het paswoord in om het menu weer te geven.
  • Seite 14: Technische Specificaties

    CCTVPROM5 Opname • Sluit de camera(’s) en de HDD correct aan de DVR. • De DVR start de opname indien de automatische opname- en de prealarmfunctie ingeschakeld zijn. Opmerking: De DVR overschrijft 8 GB van de oudste gegevens. • De icoon verschijnt op de display.
  • Seite 15 0°C - 45°C Gebruik dit toestel enkel met originele accessoires. Velleman nv is niet aansprakelijk voor schade of kwetsuren bij (verkeerd) gebruik van dit toestel. Voor meer informatie over dit product, zie www.velleman.eu. De informatie in deze handleiding kan te allen tijde worden gewijzigd zonder voorafgaande kennisgeving.
  • Seite 16: Guide D'installation Rapide

    ; non pas le câble. 3. Directives générales ® Se reporter à la garantie de service et de qualité Velleman en fin de notice. Pour usage à l’intérieur uniquement. Protéger contre la pluie, l’humidité et les projections d’eau. Ne jamais placer d’objet contenant un liquide sur l’enregistreur.
  • Seite 17: Caractéristiques

    CCTVPROM5 4. Caractéristiques DVR4L4 • norme de compression vidéo H.264 qualité d’image améliorée pour le monitorage et l’enregistrement réduction de la taille des fichiers pour une durée d’enregistrement prolongée • multiplexage : image directe, enregistrement, lecture et sauvegarde simultanés • fonction de sauvegarde : supporte la sauvegarde via USB 2.0 flash drive •...
  • Seite 18: Installation Du Matériel

    CCTVPROM5 Augmentation ( ) ou diminution ( ) de la valeur à configurer. = SLOW + ZOOM AUDIO Enfoncer simultanément pour sélectionner le mode audio. = MENU + ENTER VERR. Enfoncer simultanément pour verrouiller/déverrouiller les touches. Port de connexion pour clef USB lors de la sauvegarde ou la mise à jour du port USB firmware.
  • Seite 19 CCTVPROM5 7. Configuration de base • Interconnecter dûment l’enregistreur et les périphériques. Allumer l’enregistreur avec la touche POWER. L’enregistreur se réinitialise pendant 10 à 15 secondes. Réglage de l’heure et de la date • Il est nécessaire de configurer l’heure et le date avant le premier emploi.
  • Seite 20: Spécifications Techniques

    CCTVPROM5 • L’icône s’affiche. • L’icône s’affiche après une détection de mouvement en mode d’enregistrement par détection de mouvement. • L’icône s’affiche et la DEL s’allume en mode d’enregistrement programmé. Lecture d’un enregistrement • Enfoncer la touche PLAY pour démarrer la lecture d’un fichier d’enregistrement.
  • Seite 21 © DROITS D’AUTEUR SA Velleman est l’ayant droit des droits d’auteur pour cette notice. Tous droits mondiaux réservés. Toute reproduction, traduction, copie ou diffusion, intégrale ou partielle, du contenu de cette notice par quelque procédé ou sur tout support électronique que se soit est interdite sans l’accord préalable écrit de l’ayant droit.
  • Seite 22: Guía Rápida

    Si tiene dudas, contacte con las autoridades locales para residuos. ¡Gracias por haber comprado la CCTVPROM5! Lea atentamente las instrucciones del manual antes de usarla. Si el aparato ha sufrido algún daño en el transporte no lo instale y póngase en contacto con su distribuidor.
  • Seite 23 CCTVPROM5 4. Características DVR4L4 • compresión de vídeo H.264 calidad de la imagen mejorada para la vigilancia y la grabación disminución del tamaño de los ficheros para una duración de grabación prolongada • funciones multiplex: reproducción directa, grabación, reproducción y copia de seguridad al mismo tiempo •...
  • Seite 24: Instalar El Hardware

    CCTVPROM5 Pulsar simultáneamente para seleccionar el modo audio. = MENU + ENTER BLOQUEO Pulsar simultáneamente para bloquear/desbloquear las teclas. Puerto de conexión para llave USB al hacer una copia de seguridad o al instalar una puerto USB versión mejorada del firmware.
  • Seite 25: Configuración Básica

    CCTVPROM5 7. Configuración básica • Interconecte la videograbadora y los aparatos periféricos de manera correcta. Active la videograbadora con la tecla POWER. La videograbadora se reinicializa durante 10 a 15 segundos. Ajustar la hora y la fecha • Es necesario configurar la hora y la fecha antes del primer uso.
  • Seite 26: Especificaciones

    CCTVPROM5 Grabación • Asegúrese de que las cámaras y el disco duro están conectados correctamente a la videograbadora. • El aparato empieza una grabación si las funciones de grabación automática y de prealarma están activadas. Nota: La videograbadora sobre-escriba 8 GB de los ficheros más viejos.
  • Seite 27 0°C - 45°C Utilice este aparato sólo con los accesorios originales. Velleman NV no será responsable de daños ni lesiones causados por un uso (indebido) de este aparato. Para más información sobre este producto, visite nuestra página web www.velleman.eu. Se pueden modificar las especificaciones y el contenido de este manual sin previo aviso.
  • Seite 28: Sicherheitshinweise

    Falls Zweifel bestehen, wenden Sie sich für Entsorgungsrichtlinien an Ihre örtliche Behörde. Wir bedanken uns für den Kauf des CCTVPROM5! Lesen Sie diese Bedienungsanleitung vor Inbetriebnahme sorgfältig durch. Überprüfen Sie, ob Transportschäden vorliegen. Sollte dies der Fall sein, verwenden Sie das Gerät nicht und wenden Sie sich an Ihren Händler.
  • Seite 29 CCTVPROM5 • Bei Schäden, die durch Nichtbeachtung der Bedienungsanleitung verursacht werden, erlischt der Garantieanspruch. Für daraus resultierende Folgeschäden übernimmt der Hersteller keine Haftung. • Respektieren Sie die Gesetzgebung hinsichtlich der Intimsphäre bei Anwendung dieses Gerätes. 4. Eigenschaften DVR4L4 • Videokompression H.264 verbesserte Videoqualität für Monitoring und Aufnahmen...
  • Seite 30: Die Hardware Installieren

    CCTVPROM5 Drücken Sie auf oder während der Konfiguration, um die Einstellungen zu ändern. = SLOW + ZOOM AUDIO Drücken Sie gleichzeitig auf SLOW und ZOOM um die verschiedene Töne auszuwählen. TASTEN- = MENU + ENTER VERRIEGE- Drücken Sie gleichzeitig auf MENU und ENTER um die Tasten zu verriegeln. Drücken LUNG Sie eine Taste und geben Sie das Passwort ein, um die Tasten zu entriegeln.
  • Seite 31: Basiskonfiguration

    CCTVPROM5 7. Basiskonfiguration • Schalten Sie die angeschlossenen Kameras und das Gerät ein. Dies dauert etwa 10 bis 15 Sekunden. Die Uhrzeit und das Datum einstellen • Stellen Sie das de Datum und die Uhrzeit vor der ersten Inbetriebnahme ein.
  • Seite 32: Technische Daten

    CCTVPROM5 Aufnahme • Verbinden Sie die Kamera(s) und die Festplatte korrekt mit dem Gerät. • Das Gerät startet die Aufnahme wenn die automatische Aufnahme- und die Prealarm-Funktion eingeschaltet sind. Bemerkung: Das Gerät überschreibt 8 GB der ältesten Daten. • Das Symbol erscheint im Display.
  • Seite 33 380g (mit Montagebügel) Arbeitstemperatur 0°C - 45°C Verwenden Sie dieses Gerät nur mit originellen Zubehörteilen. Velleman NV übernimmt keine Haftung für Schaden oder Verletzungen bei (falscher) Anwendung dieses Gerätes. Für mehr Informationen zu diesem Produkt, siehe www.velleman.eu. Alle Änderungen ohne vorherige Ankündigung vorbehalten.
  • Seite 34 Velleman®. Afin de garantir la qualité, nous soumettons régulièrement nos • Articles to be repaired must be delivered to your Velleman® dealer, produits à des contrôles de qualité supplémentaires, tant par solidly packed (preferably in the original packaging), and be notre propre service qualité...
  • Seite 35 Geräts heraus, dass kein Geräteschaden vorliegt, könnte dem Velleman® ; Kunden eine Untersuchungspauschale berechnet. - se calcula gastos de transporte de y a Velleman® si el aparato • Für Reparaturen nach Ablauf der Garantiefrist werden ya no está cubierto por la garantía.
