• The welder must not be placed on a heated surface.
Store the machine in a dry and clean room.
•

5.3. Connecting the unit

5.3.1. Electrical connection

The unit should be connected by a qualified person. In addition, a person with the necessary
•
qualifications should check that the earthing and electrical installation including protection
system complies with safety regulations and is functioning properly.
• Place the unit near the work area.
Avoid excessively long wires to connect the unit.
•
• Single-phase welding machines should be connected to an outlet equipped with a grounding
pin.
Welders supplied from 3-phase mains are delivered without a plug, you should obtain one
•
yourself and have it installed by a qualified person.
CAUTION! The device may only be operated if connected to installation with a functional fuse.

6. Product overview

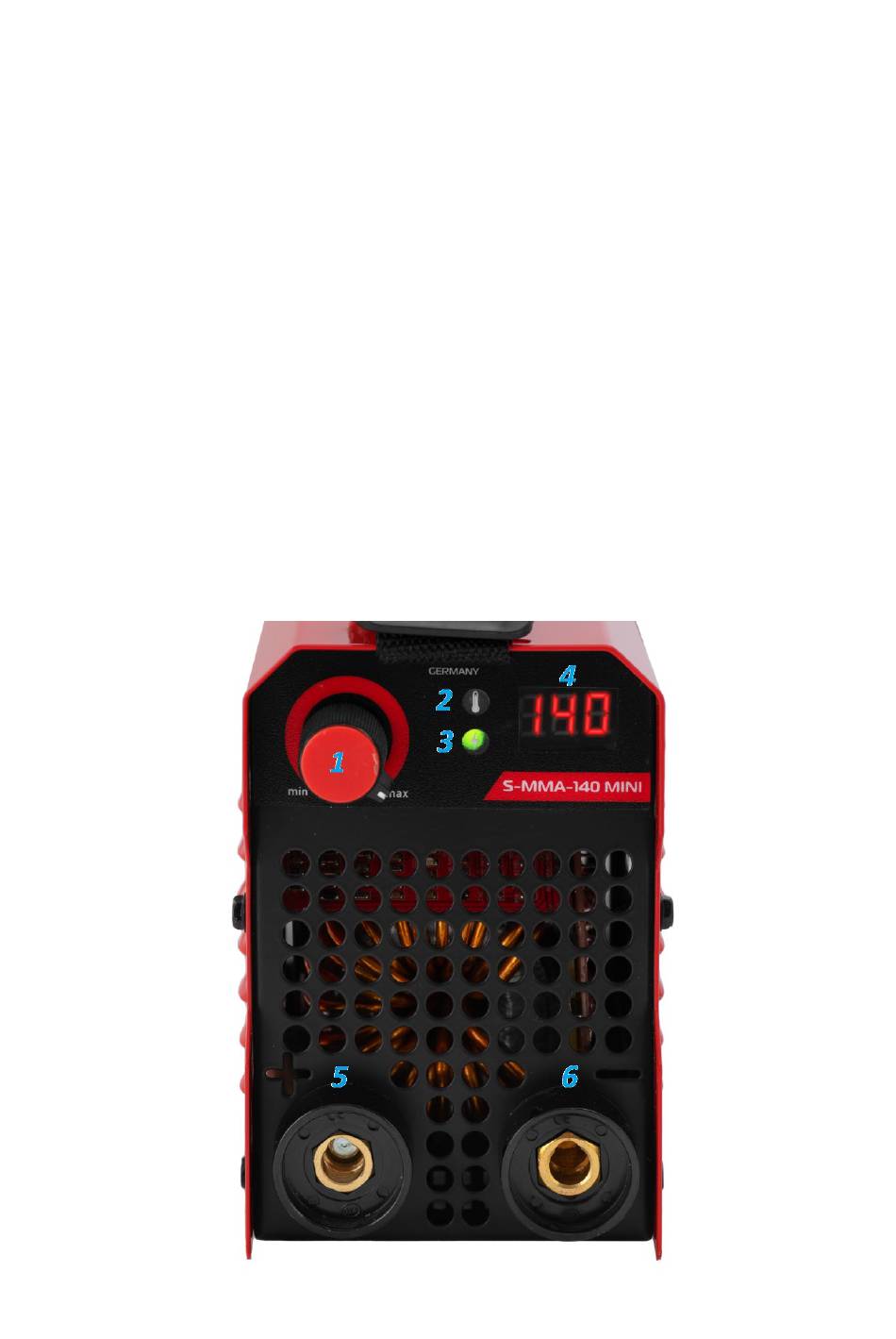

The following is an image of the S-MMA-140 MINI welding machine, the other models described in
this manual, apart from the technical parameters, look the same.
Front view
