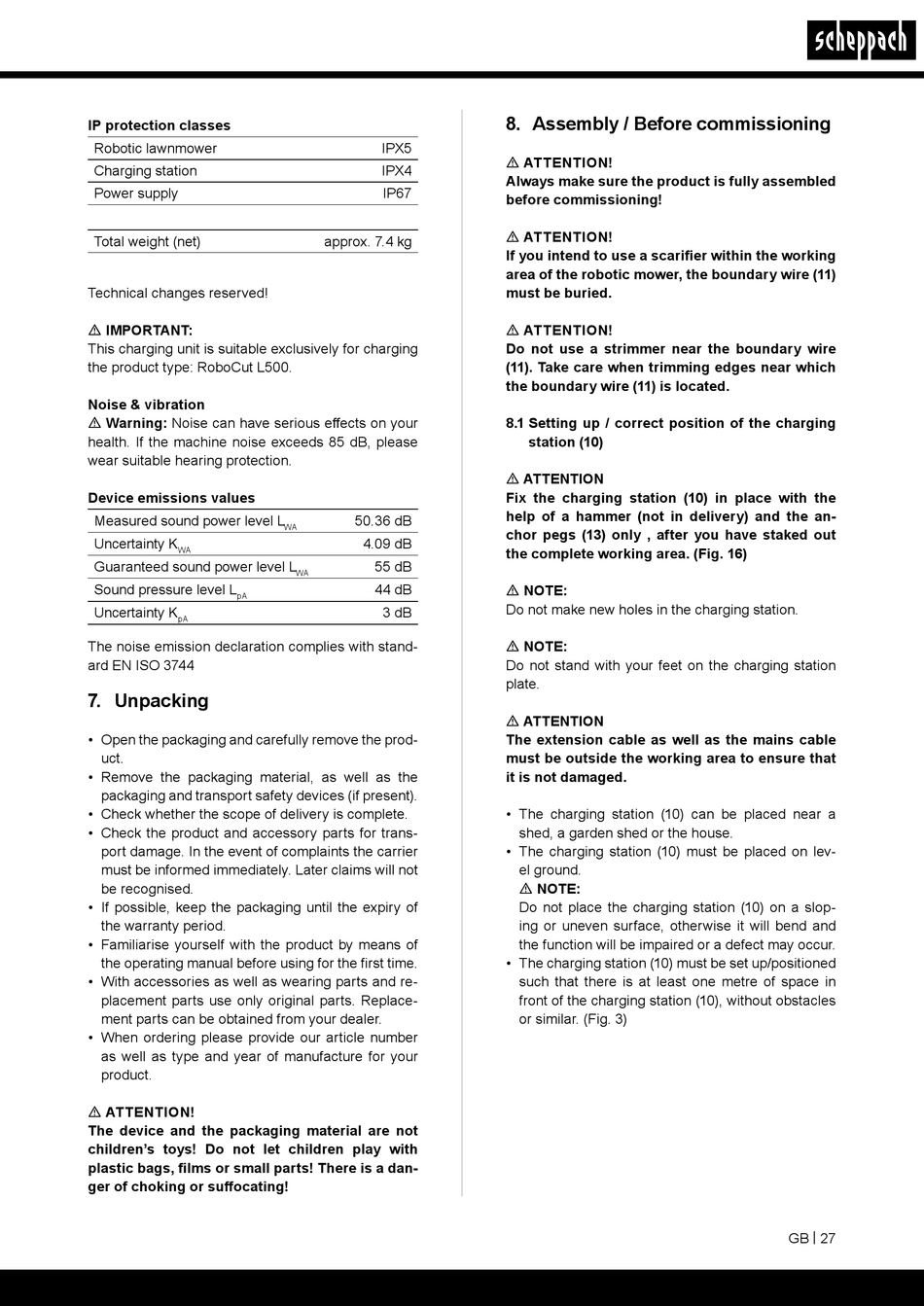

IP protection classes
Robotic lawnmower
Charging station
Power supply
Total weight (net)
Technical changes reserved!
m IMPORTANT:
This charging unit is suitable exclusively for charging
the product type: RoboCut L500.
Noise & vibration
m Warning: Noise can have serious effects on your
health. If the machine noise exceeds 85 dB, please
wear suitable hearing protection.
Device emissions values
Measured sound power level L
Uncertainty K
WA
Guaranteed sound power level L
Sound pressure level L
pA
Uncertainty K
pA
The noise emission declaration complies with stand-
ard EN ISO 3744

7. Unpacking

• Open the packaging and carefully remove the prod-
uct.
• Remove the packaging material, as well as the
packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the product and accessory parts for trans-
port damage. In the event of complaints the carrier
must be informed immediately. Later claims will not
be recognised.
• If possible, keep the packaging until the expiry of
the warranty period.
• Familiarise yourself with the product by means of
the operating manual before using for the first time.
• With accessories as well as wearing parts and re-
placement parts use only original parts. Replace-
ment parts can be obtained from your dealer.
• When ordering please provide our article number
as well as type and year of manufacture for your
product.
m ATTENTION!
The device and the packaging material are not
children's toys! Do not let children play with
plastic bags, films or small parts! There is a dan-
ger of choking or suffocating!
IPX5
IPX4
IP67
approx. 7.4 kg
50.36 dB
WA
4.09 dB
55 dB
WA
44 dB
3 dB

8. Assembly / Before commissioning

m ATTENTION!
Always make sure the product is fully assembled
before commissioning!
m ATTENTION!
If you intend to use a scarifier within the working
area of the robotic mower, the boundary wire (11)
must be buried.
m ATTENTION!
Do not use a strimmer near the boundary wire
(11). Take care when trimming edges near which
the boundary wire (11) is located.
8.1 Setting up / correct position of the charging
station (10)
m ATTENTION
Fix the charging station (10) in place with the
help of a hammer (not in delivery) and the an-
chor pegs (13) only , after you have staked out
the complete working area. (Fig. 16)
m NOTE:
Do not make new holes in the charging station.
m NOTE:
Do not stand with your feet on the charging station
plate.
m ATTENTION
The extension cable as well as the mains cable
must be outside the working area to ensure that
it is not damaged.
• The charging station (10) can be placed near a
shed, a garden shed or the house.
• The charging station (10) must be placed on lev-
el ground.
m NOTE:
Do not place the charging station (10) on a slop-
ing or uneven surface, otherwise it will bend and
the function will be impaired or a defect may occur.
• The charging station (10) must be set up/positioned
such that there is at least one metre of space in
front of the charging station (10), without obstacles
or similar. (Fig. 3)
GB | 27
