GENERAL SAFETY PRECAUTIONS
• Keep these instructions for future reference.
• Installation, electrical connections and adjustments must be per-
formed by qualified personnel in accordance with Good Working Meth-
ods and in compliance with the current standards.
• This product must only be used for the specific purpose for which it
was designed. Any other use is to be considered improper and there-
fore dangerous. The manufacturer cannot be held responsible for any
damage caused by improper, incorrect or unreasonable use.
• Read the instructions carefully before installing the product. Incorrect
installation may cause danger.
• Before installing the product, make sure it is in perfect condition.
• Do not install the product in explosive areas and atmospheres: the pres-
ence of inflammable gas or fumes represents a serious safety hazard.
• Danger of explosion if a battery is replaced with an incorrect type.
The packaging materials (plastic, polystyrene, etc.) should not
be discarded in the environment or left within reach of children,
as they are a potential source of danger.

1. TECHNICAL SPECIFICATIONS

• Degree of protection
• Temperature
• Frequency band
• Radiated power
• Supply voltage
2. INSTALLATION
Secure the function selector switch near the automation in a safe posi-
tion which is also suitable for use (ref. fig. 2-8).
3. ELECTRICAL CONNECTIONS
Carry out the electrical connections indicated on page 2, 3.
For more examples, please refer to the automation installa-
tion manual for Ditec DAS200 sliding doors.
To read the complete manual use the following QR code or type the fol-
lowing link:
https://www.ditecautomations.com/global/market-documents/
QR/Multilanguages/DAS200/DitecDAS200.pdf
4. OPERATING MODE
Enabling the use of the selector.
The different operation modes are selected by pushing their respective
symbols. The present selection is indicated by a blue light.
The following functions can be selected on the control panel (MCU) for
operation mode selector key lock.
Parameter B1= 00. No access code (not allowed in escape route, ac-
cording to EN16005 and DIN18650).
Parameter B1= 01. Hold for 2s (not allowed in escape route, according
to EN16005 and DIN18650).
Access is obtained by holding any mode selection button for 2 seconds.
Parameter B1= 02. Passcode (COM501ES).
Passcode can be selected where the access is obtained by briefly
pushing the buttons in correct order.
The entire passcode must be entered within 10 seconds.
The passcode can be changed through the DAS900CT.
Default passcode is
Parameter B1= 03. Key (only COM501ER)
To enable the use of the selector, rotate the key clockwise towards the sym-
bol . The will light up for 15 seconds. Select the required mode.
NOTE: When B1 is set to Hold for two sec (01), the access will be locked
5 seconds after a button has been pushed.
Bluetooth abilitato
Il modulo Bluetooth si sta associando
con la App Entrematic Door Connect
IP4X
-20°C / +55°C
2402.0 - 2480.0 MHz
< 1 mW
24 V
.
NOTA: vedere importanti informazioni nell'ultima pagina.
When b1 is set to Passcode (02) or Key (03), the access will be locked
15 seconds after entering passcode or activating key, or when a new
mode selection has been confirmed.
NOTE: When B1 is set to either Passcode (02) or Key (03), the operation
mode selection must be confirmed by pressing the
In the a light can be displayed.
- A red light every 1 s. indicates an error. Carry out a RESET. If the error
persists, contact Technical Service.
- A yellow light every second is indicating that maintenance is due (parametro B2).
- A magenta light every second is indicating that STOP contact 1-3 is
active. E.g. a break-out door is standing open.
- A steady green light is displayed when the OMS is unlocked and B1 is
configured for Passcode (02) or Key (03).
- A green light is flashing 4 times per second when a new operation
mode has been selected but not yet confirmed.
- A green light will flash whenever a button is pressed while typing the
passcode.
- A green light will be displayed for 1 second when Mode Selector Key
Impulse (Parameter B8= 02) is given by holding
when the operation mode is OFF.

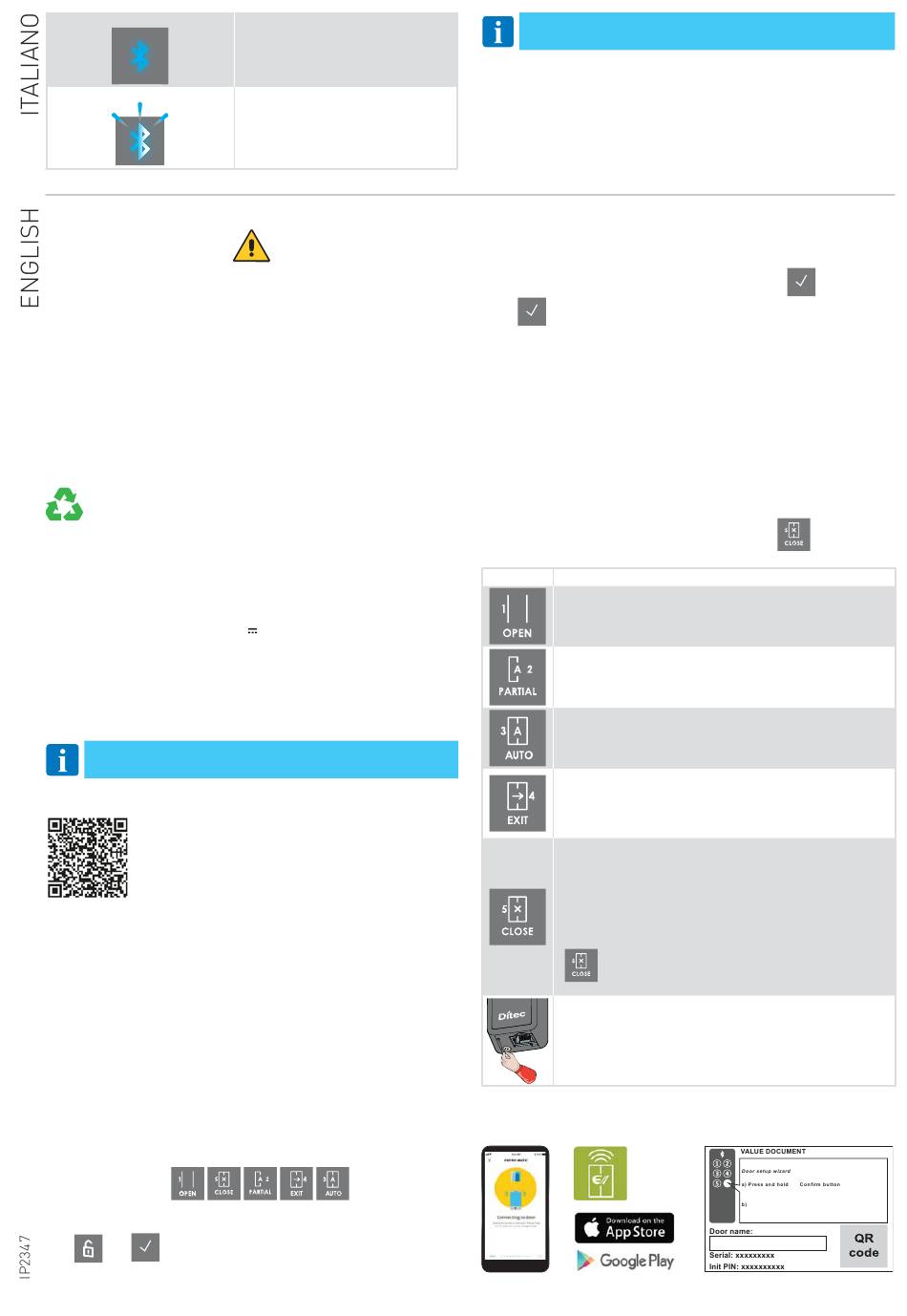

SYMBOL
OPEN
The door is permanently open. The door can be moved by hand e.g.
for window cleaning. All activation units except for the emergency
push button (if fitted) are disconnected.
PARTIAL
Two-way traffic, PARTIAL is obtained. The door can be opened par-
tially with the inner and outer activation units and with a key switch
(if fitted). With an emergency push-button the door opens fully.
AUTO
Two-way traffic, normal operation of the door. The door can be
opened with the inner and outer activation units and with a key
switch/emergency push-button (if fitted).
EXIT
Passage from inside only. The door is normally locked (unlocked
if escape route) if an electromechanical locking device has been
fitted. The door can only be openedwith the inner activation unit or
with a key switch/emergency push-button (if fitted).
OFF
In an escape route the OFF mode may only be set after it is certain
that all people have left the building.
The door cannot be opened with inner or outer activation units. The
door is locked if an electromechanical locking device has been fit-
ted. The door can be opened partially with a key switch (if fitted). The
door can be opened fully with an emergency pushbutton (if fitted).
The door can be opened partially from the operation mode selector
if is pushed (based on how Key impulse is configured). This
function depends on how parameters B1 and B8 are set.
RESET
By briefly pushing the button placed in the hole accessible from the
underside of the OMS with a narrow object, the door operator will
make a RESET function with a system test. The door will then be
ready for normal operation.
5. ENTREMATIC DOOR CONNECT
With the app, Entrematic Door Connect, all the main operation mode
selector functionalities can be operated with a smartphone.
5
.
for 2 seconds
FUNCTION
Follow these steps in the app, when the
prompts to enter the Initialization Pin:
the until the BLE led
starts flashing.
Enter the Initialization Pin on the OMS, and press the
Confirm button on the OMS after each digit.
