The connection for a mute switch/button in MIC/LINE channel 1 can be used for two devices at the same
time (muting of a music signal and/or activation of the chime/signal tone). In this case, the mute cont-
acts of both devices must be connected to poles C and + of the terminal block connector for MIC/LINE 1.
+ -/G
When wiring terminal blocks, please ensure that the poles/terminals are correctly assigned.
The manufacturer takes no responsibility for damage caused by faulty wiring! Information
on the correct wiring of terminal block connections can be found in the section TERMINAL
BLOCK CONNECTIONS in this user manual.

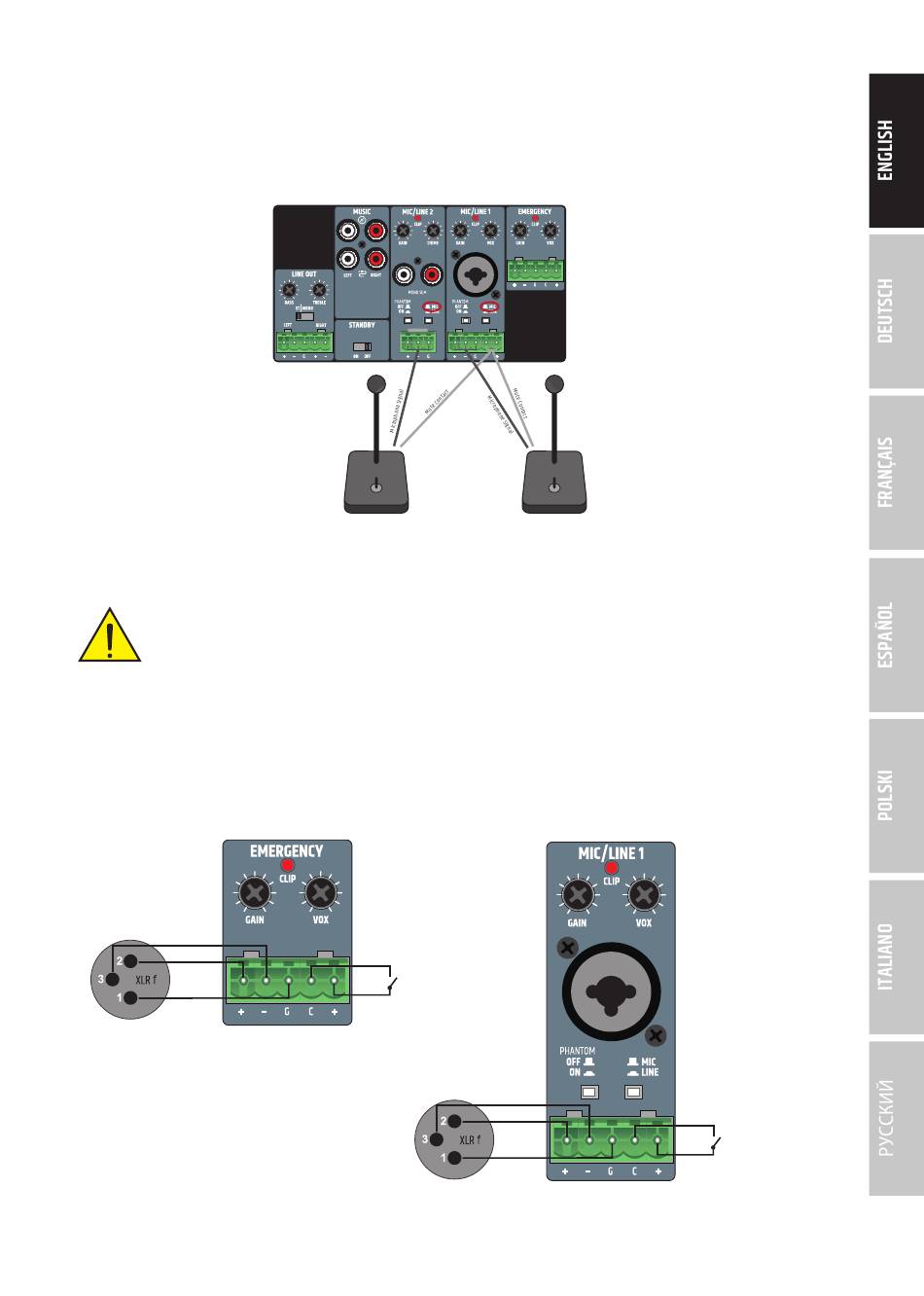

TERMINAL BLOCK CONNECTIONS

EMERGENCY CHANNEL CONNECTIONS
XLR m
Call Station 2
1
XLR m
3
2
Call Station
Call Station 1
+ -/G
MIC/LINE 1 CONNECTIONS
