PRIORITY LEVELS

Priority Trigger source
level
Emergency VOX circuit and
1
Contact closure
2 MIC/LINE 1 VOX
MIC/LINE 1, contact closure during
3
chime/signal tone output
MIC/LINE 1, contact closure after
4
chime/signal tone output
5 –

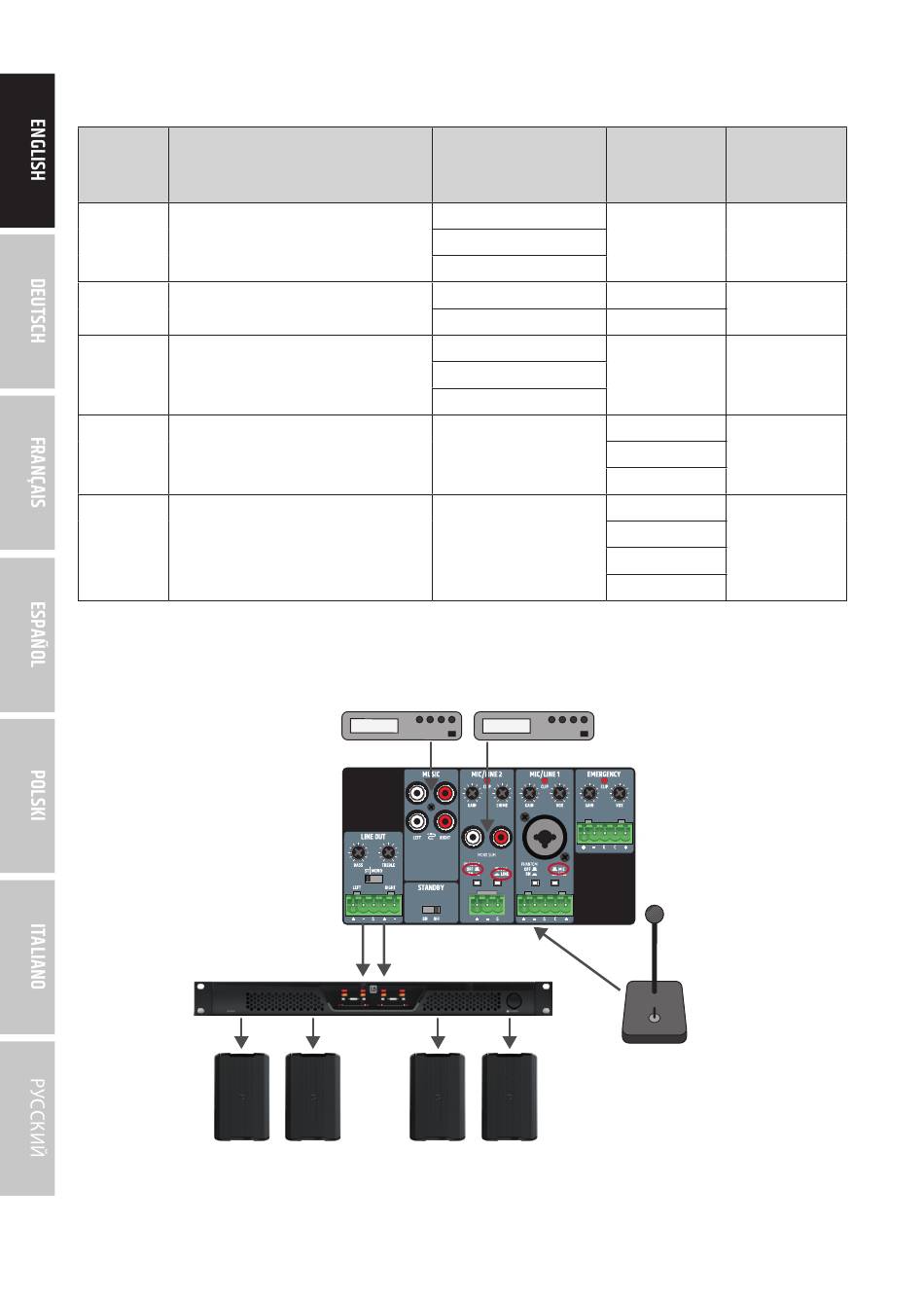

CONNECTION EXAMPLES

14
Muted signal
sources
MIC/LINE 1
MIC/LINE 2
MUSIC
MIC/LINE 2
MUSIC
MIC/LINE 1
MIC/LINE 2
MUSIC
MUSIC
–
Player 1 Player 2
Active Indication
signal in the front
sources panel
EMERGENCY EMERG
EMERGENCY
PRIO
MIC/LINE 1
EMERGENCY PRIO
EMERGENCY
MIC/LINE 1 PRIO
MIC/LINE 2
EMERGENCY
MIC/LINE 1
–
MIC/LINE 2
MUSIC
Call Station
