opposite side of the door.
A
B

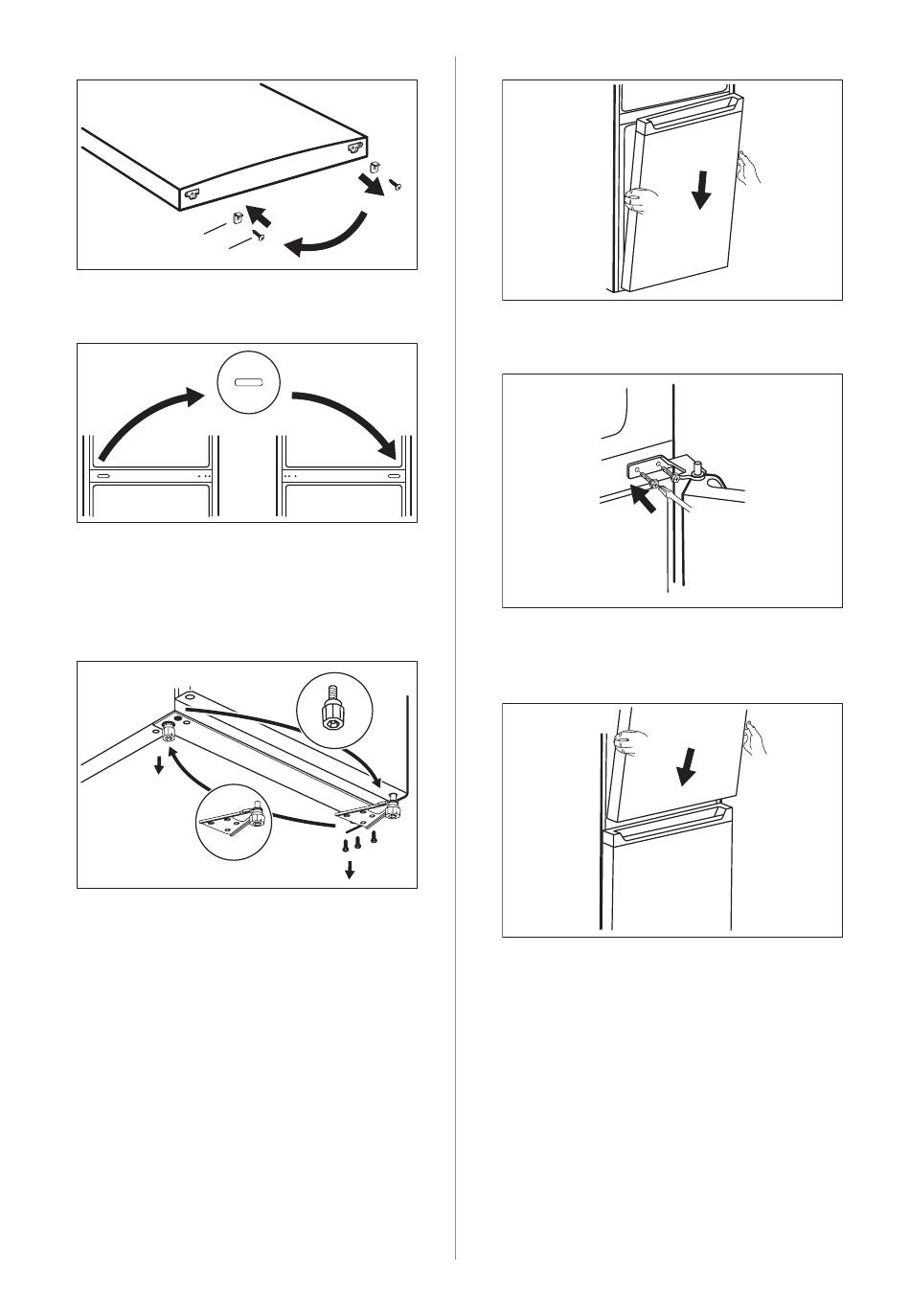

10. Remove the hole cover of the middle
hinge and put it in the holes on the
opposite side.
11. Tilt the appliance carefully on a soft foam
packaging or similar material to avoid any
damage to the back of the appliance and
the floor.
12. Remove both adjustable feet and
unscrew the screws of the lower hinge.
13. Reverse the lower hinge to the other side
of the appliance, screw it with screws and
install adjustable feet.
14. Install the lower door by placing the
bottom door hole on the bottom hinge pin.
10 ENGLISH
1
3
2
Tighten the screws.
15. Install the middle hinge to the left side of
the appliance by reversing its original
position.
16. Fit the upper hole of the lower door on the
middle hinge pin. Tighten the screws.
17. Install the upper door by fitting the lower
hole of the door on the middle hinge pin.
18. Put the upper hinge to the left top side of
the appliance. Supporting the door with
your hand put the hinge pin into the upper
hole of the upper door. Tighten the
screws of the upper hinge.
19. Take out an upper hinge cover (A) from a
bag. Install it on the upper hinge. Place
the screw hole cover (B) on the top right
side of the appliance where screw holes
