OWNER'S MANUAL
LW4.480
Gain Control CH 1/2 & 3/4:
Used to adjust gain
to match source unit
CH1 CH1
CH2 CH2
RCA Input CH 1/2:
Input from source unit
via Cinch/RCA output
Crossover-Switch
CH 1/2 & 3/4:
Low Pass Filter /
Full Range Mode /
High Pass Filter /
Band Pass Filter (only CH 3/4)
CAUTION:
Speaker Output:
Left and right speaker
connections. Use Left Positive(+)
and Right Negative (-) for
bridged output
CAUTION:
Bass Boost CH 1/2 & 3/4:
Switch 0 /+6 /+12dB
GAIN GAIN LPF LPF HPF HPF
. . . . . . . . . . . .
MIN MIN MAX MAX 50Hz - 650Hz 50Hz - 650Hz 50Hz - 650Hz 50Hz - 650Hz
12dB 6dB 12dB 6dB 0dB 0dB HPF FULL LPF HPF FULL LPF
BASS BOOST BASS BOOST
Low Pass Filter (LPF) CH 1/2 & 3/4:
Frequency adjustment
50 Hz to 650 Hz
High Pass Filter (HPF) CH 1/2 & 3/4:
Frequency adjustment
50 Hz to 650 Hz
Please never use the RCA/Cinch Inputs and the High Level Inputs at the same time.
Otherwise your amplifier will get damaged.
Fuses:
Never replace
with a fuse greater
than specified
BRIDGED
- -
+ +
- -
+ +
BRIDGED
Please observe speaker channel and polarity as printed by the speaker terminal block.
Incorrect phasing of the speakers results in total loss of bass response.

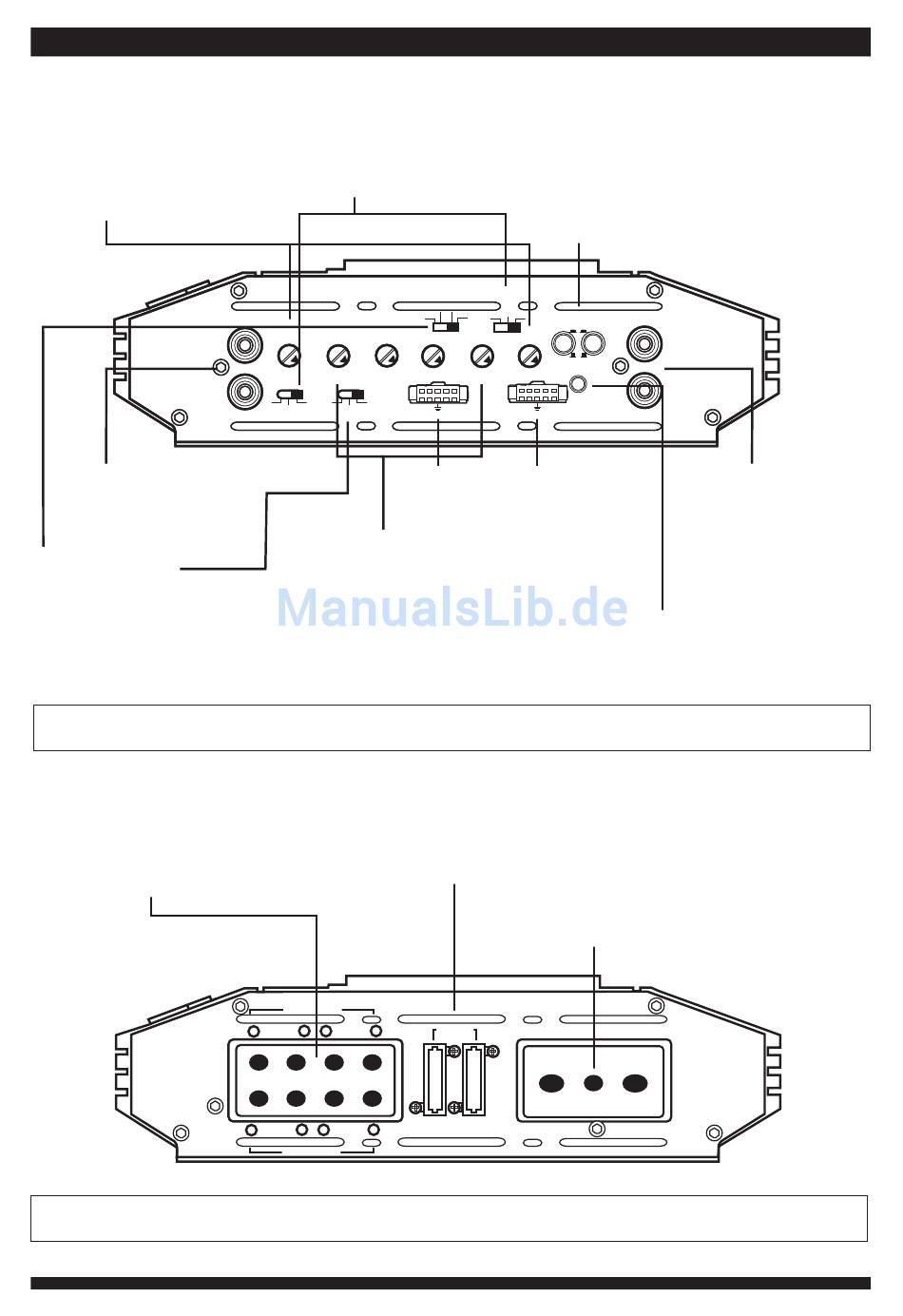

INPUTS & CONTROLS
Frequency Range (HIGH/LOW)
for Bandpass-Mode (BP):
Switch frequency from
50 Hz to 650 Hz (LOW) or from
500 Hz to 6.5 kHz (HIGH) on CH 3/4
BASS BOOST BASS BOOST
FULL LPF FULL LPF
6dB 6dB
HPF HPF BPF BPF 0dB 0dB 12dB 12dB 50Hz-650Hz 50Hz-650Hz
LOW LOW
HPF HPF LPF LPF GAIN GAIN
. . . . . . . . . . . .
HIGH HIGH
500Hz - 6.5KHz 500Hz - 6.5KHz
50Hz - 650Hz 50Hz - 650Hz 50Hz - 650Hz MIN MIN MAX MAX
PWR/PRT PWR/PRT
+ + - - - + - + + + - - - + - +
HI INPUT HI INPUT HI INPUT HI INPUT
High Inputs CH 1/2 & 3/4:
High Level Input from source
unit via speaker output
Power Terminal:
Connect heavy (8 gauge / 10 sqmm)
stranded wire to the 12 volt and
grounded source. Connect the
ground to the chassis near the amp
Connenct Remote Turn On wire
from source unit with the REM input
FUSES
+12V
8
CH3 CH3
CH4 CH4
RCA Input CH 3/4:
Input from source unit
via Cinch/RCA output
Power LED:
Green: power on
Red: protection mode
REM GND
ENGLISH
