OWNER'S MANUAL
LW5.830
Subwoofer Switch (SUB on/off):
Activates CH 5 for subwoofer mode
Bass Boost CH 5:
Adjust Bass Boost 0 – 18dB
Low Pass Filter (LPF):
Freq. adjustment
50 to 250 Hz
PWR/PRT
Power LED:
Green: power on
Red: protection mode
High Inputs CH 1/2:
High Level Input from source
unit via speaker output
Phase Shift:
Adjust the acoustic Phase
Shift from 0 – 180°
CAUTION:
Fuses (located inside):
Never replace with a fuse
greater than specified
Subwoofer Output (CH 5):
Use SUB only for a
subwoofer operation
CAUTION:
Gain Control:
Used to adjust gain
to match source unit
CH4
SUB
. . . .
ON OFF
0dB 18dB MIN MAX
. . . .
50Hz - 250Hz 0° 180°
SUB PHASE CH3
RCA Input CH 1/2 & CH 3/4:
Input from source unit
via Cinch/RCA output
Crossover-Switch CH 1/2 & 3/4:
Low Pass Filter /
Full Range Mode /
High Pass Filter /
Band Pass Filter (only CH 3/4)
Please never use the RCA/Cinch Inputs and the High Level Inputs at the same time.
Otherwise your amplifier will get damaged.
Speaker Output:
Left and right speaker connections.
Use Left Positive (+) and Right
Negative (-) for bridged output
SUB BRIDGED
+ + - + -
- + - + -
SUB BRIDGED
Please observe speaker channel and polarity as printed by the speaker terminal block.
Incorrect phasing of the speakers results in total loss of bass response.

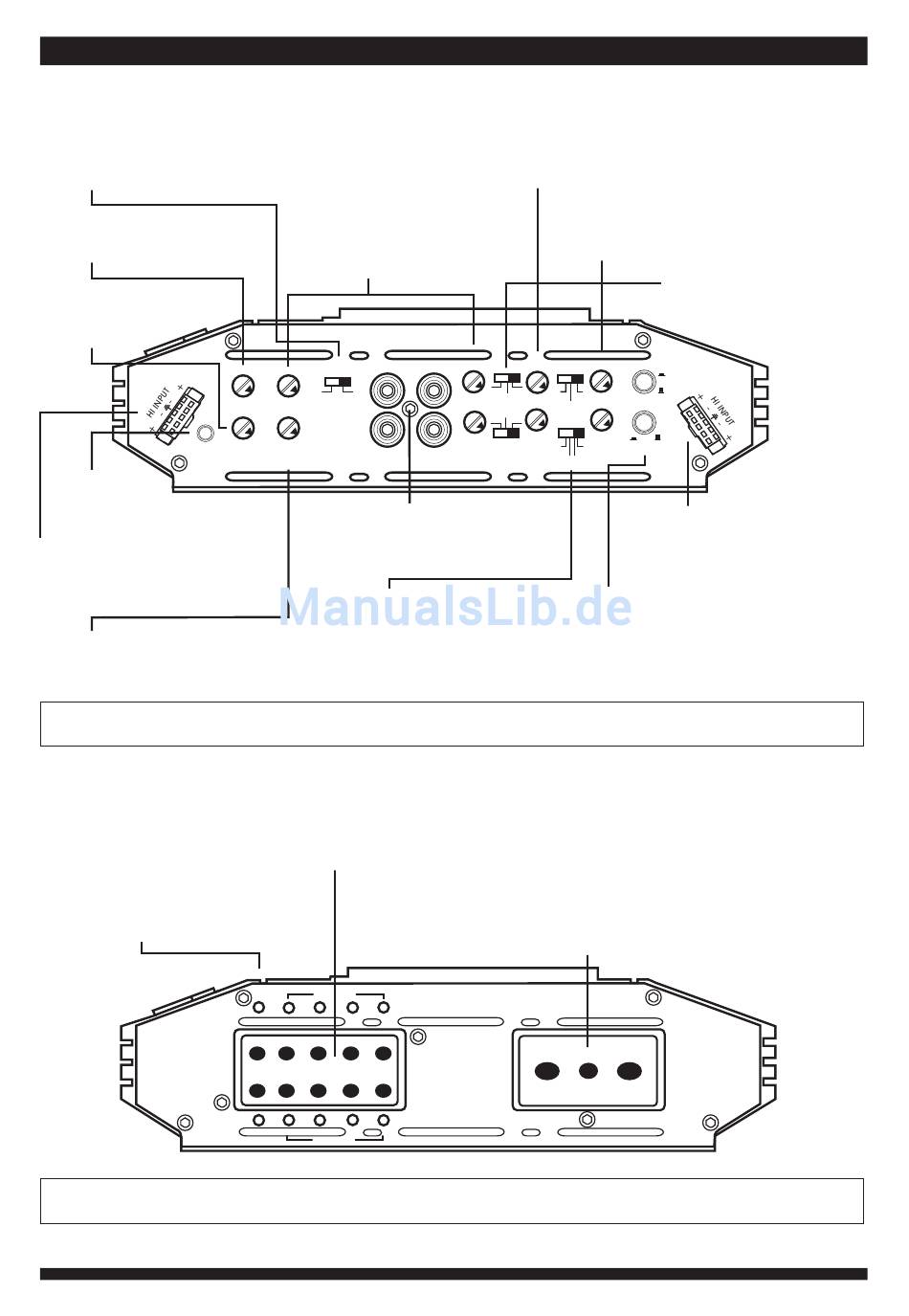

INPUTS & CONTROLS
Low Pass Filter (LPF) CH 1/2 & 3/4:
Frequency adjustment 50 Hz to 650 Hz
High Pass Filter (HPF) CH 1/2 & 3/4:
Frequency adjustment
50 Hz to 650 Hz
CH2 GAIN LPF
CH1/CH2
.
. . . .
0dB 12dB
LPF HPF
6dB
50Hz - 650Hz
MIN MAX
50Hz - 650Hz
FULL
6dB
0dB 12dB
. . .
. . CH3/CH4
50Hz - 650Hz
50Hz - 650Hz
MIN MAX
LPF BPF
GAIN LPF
CH1
FULL HPF
Power Terminal:
Connect heavy (2 gauge / 35 sqmm)
stranded wire to the 12 volt and
grounded source. Connect the
ground to the chassis near the amp
Connenct Remote Turn On wire
from source unit with the REM input
+12V REM
10
Bass Boost CH 1/2 & 3/4:
Switch 0 /+6 /+12dB
HPF
LOW 50Hz-650Hz
.
HIGH 500Hz - 6.5KHz
.
LOW HIGH
50Hz- 500Hz -
HPF 650Hz 6.5KHz
High Inputs CH 3/4:
High Level Input from source
unit via speaker output
Frequency Range (HIGH/LOW)
for Bandpass-Mode (BP):
Switch frequency from
50 Hz to 650 Hz (LOW) or from
500 Hz to 6.5 kHz (HIGH) on CH 3/4
GND
