OWNER'S MANUAL
LW2.240

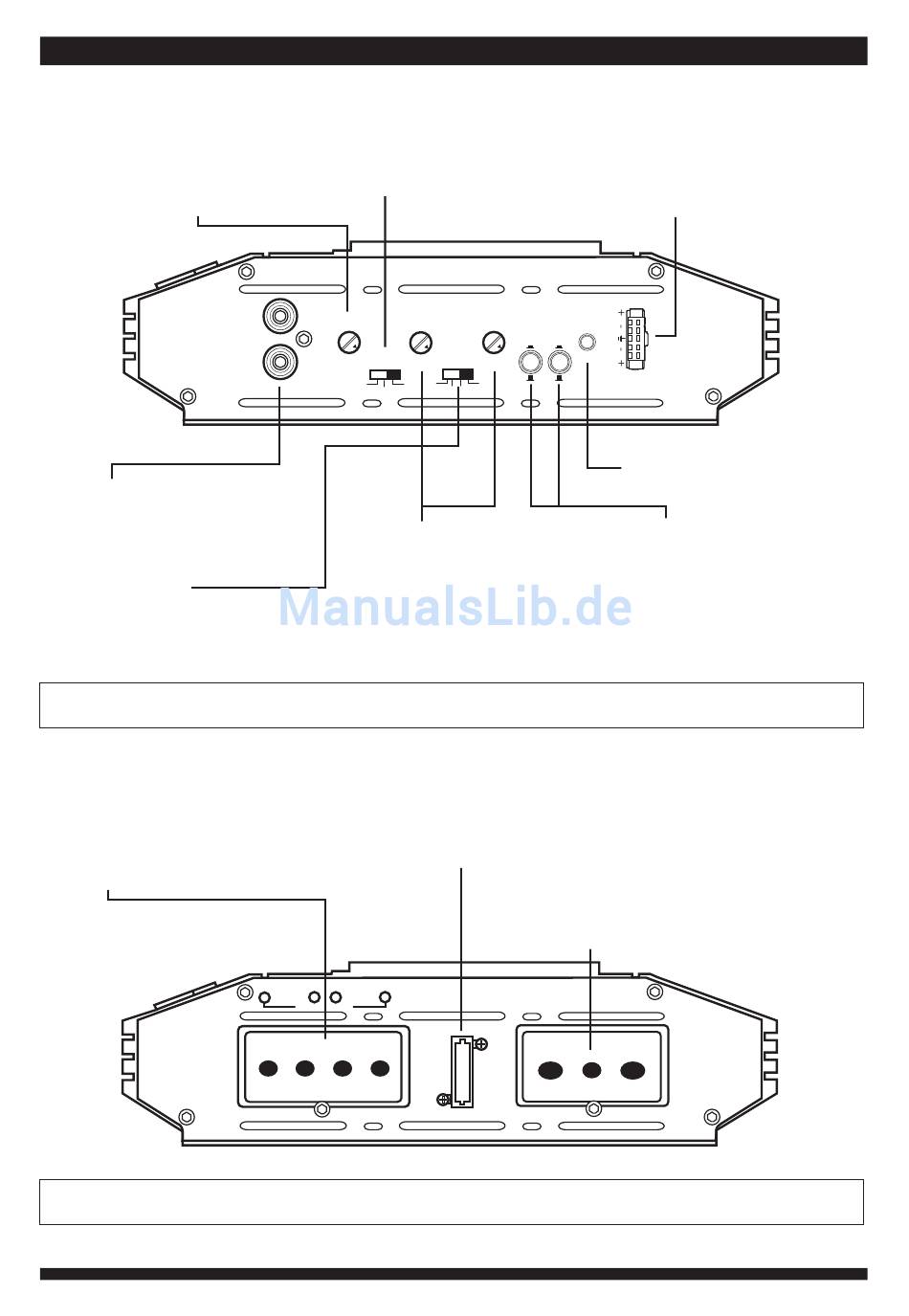

Gain Control:
Used to adjust gain
to match source unit
RCA Input L / R:
Input from source unit
via Cinch/RCA output
Crossover-Switch:
Low Pass Filter /
Full Range Mode /
High Pass Filter /
Band Pass Filter
CAUTION:
Speaker Output:
Left and right speaker
connections. Use Left Positive (+)
and Right Negative (-) for
bridged output
CAUTION:
Bass Boost:
Switch 0 /+6 /+12dB
L
GAIN
. .
BASS
R
BOOST
MIN MAX
12dB 6dB 0dB
Low Pass Filter (LPF):
Frequency adjustment
50 Hz to 650 Hz
High Pass Filter (HPF):
Frequency adjustment
50 Hz to 650 Hz
Please never use the RCA/Cinch Inputs and the High Level Inputs at the same time.
Otherwise your amplifier will get damaged.
Fuse:
Never replace
with a fuse greater
than specified
- + -
+
BRIDGED
Please observe speaker channel and polarity as printed by the speaker terminal block.
Incorrect phasing of the speakers results in total loss of bass response.
INPUTS & CONTROLS
LPF HPF
50Hz-650Hz
LOW
. . . .
50Hz - 650Hz 50Hz - 650Hz
HIGH
LPF FULLHPF BPF
500Hz - 6.5KHz
Frequency Range (HIGH/LOW)
for Bandpass-Mode (BP):
Switch frequency from
50 Hz to 650 Hz (LOW) or from
500 Hz to 6.5 kHz (HIGH)
on Channel L/R
Power Terminal:
Connect heavy (8 gauge / 10 sqmm)
stranded wire to the 12 volt and
grounded source. Connect the
ground to the chassis near the amp
Connenct Remote Turn On wire
from source unit with the REM input
+12V
6
High Input L / R:
High Level Input from source
unit via speaker output
HI INPUT
PWR/PRT
Power LED:
Green: power on
Red: protection mode
REM GND
