1. Activated carbon filter cloth（Optional）
Installation Instruction for castors
Notes, the castors into the water tank, where they are and how
they need to be installed correctly

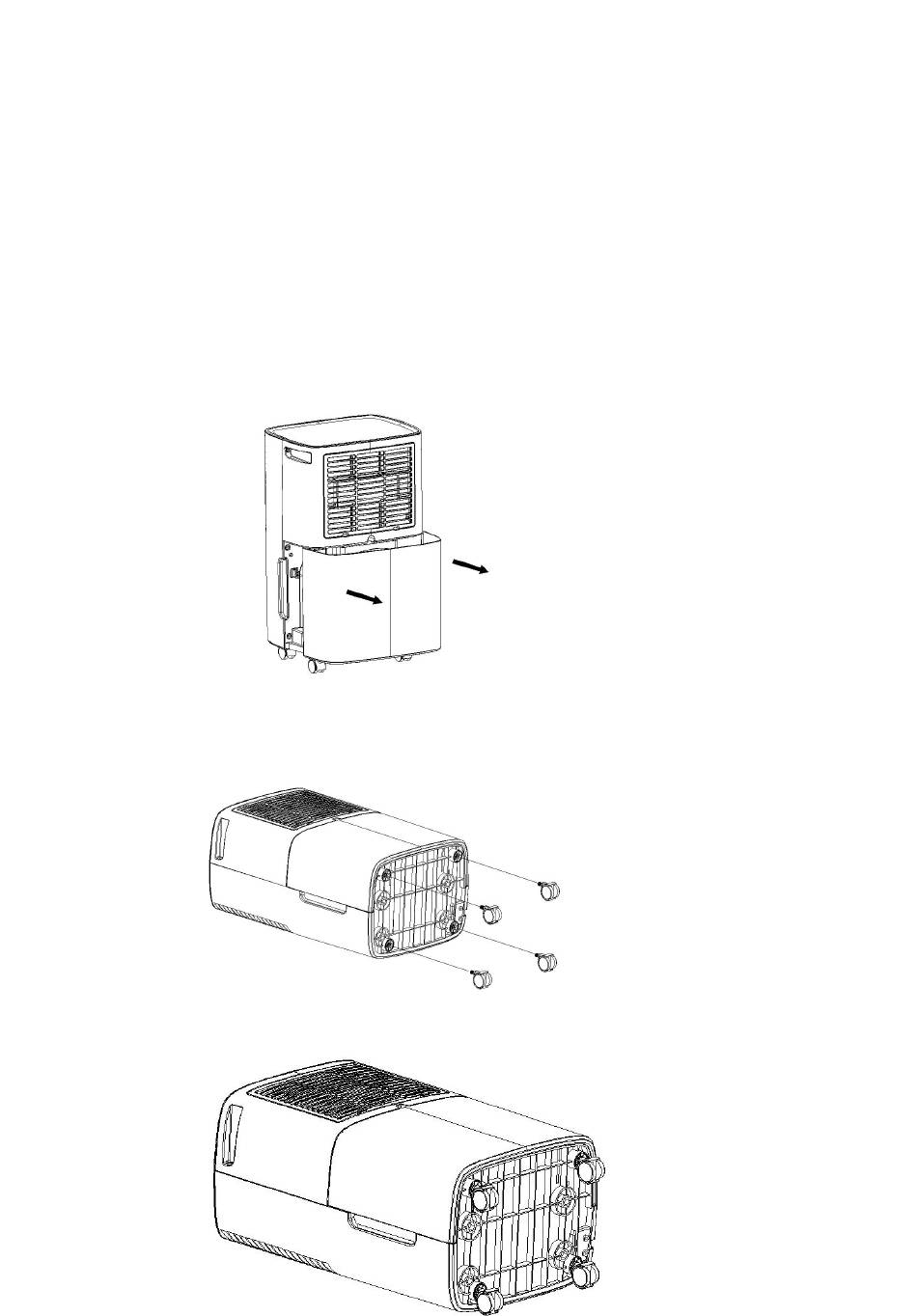

Cartors installation diagram:
Open the water tank and take out the wheels placed inside, as shown in Figure
1.
Figure 1.
Turn the machine down, unfasten the four rubber feet on the base, and insert
the wheels into the holes, as shown in Figure 2.
Figure 2
Install the wheels as shown below, and then move the machine upright.
Figure 3
