From version 2.03!!!
• DIP switch 7 On:
Wiegand mode: disables the possibility to use a Wiegand keypad.
• DIP switch 7 Off:
Wiegand mode: a Wiegand keypad can be used on the D0/D1 input;
The keypad must be configured in Single Key - 8 bits Wiegand - Nibbles Complemented.
• DIP switch 8 On: Address 0.
• DIP switch 8 Off: Address 1.

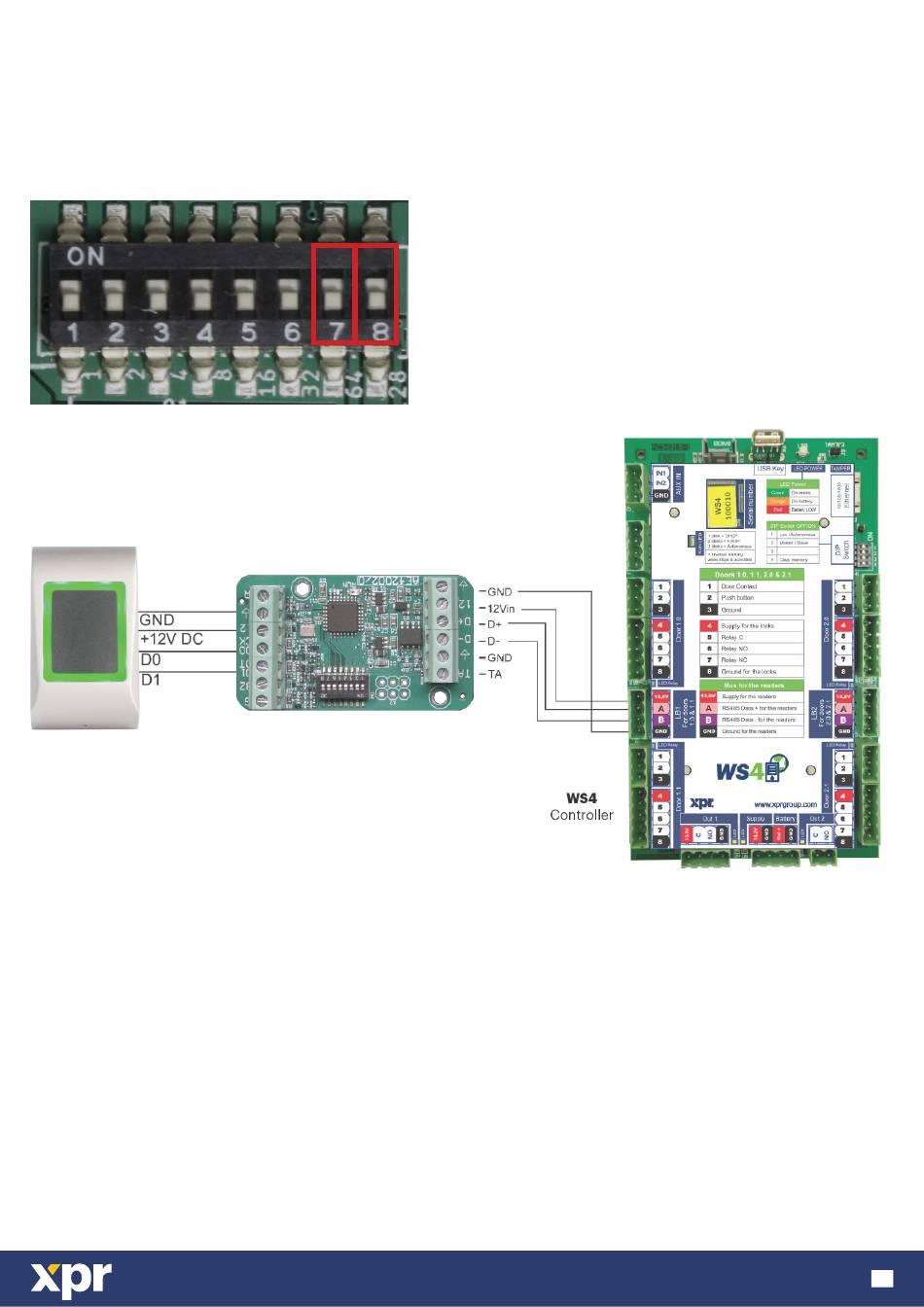

4. CONNECTION DIAGRAM

WS4-CONV-V2
Wiegand
Wiegand to RS-485 converter
Reader
• Set the desired Wiegand Output of the reader.
• Connect the Wiegand Reader to the converter as shown in the picture above.
• Put the Address DIP Switch in the converter to the desired address, 0 or 1.
• Set the parameters for the reader in the WS4 software.
