WS4-CONV
1. DESCRIPTION
This converter allows the connection of any type of reader (Wiegand, Data / Clock ISO2, Dallas and RS-232) to the local bus of the
access units. The converter automatically adapts its inputs (D1/CLK/Dal and D0/DTA/Rx) to the reader's output.
2. SPECIFICATIONS
• Current consumption without external elements : 30 mA
• Output 13,8 Vdc : max. 300 mA
• Tamper input
• Dimensions (mm): 66 x 41

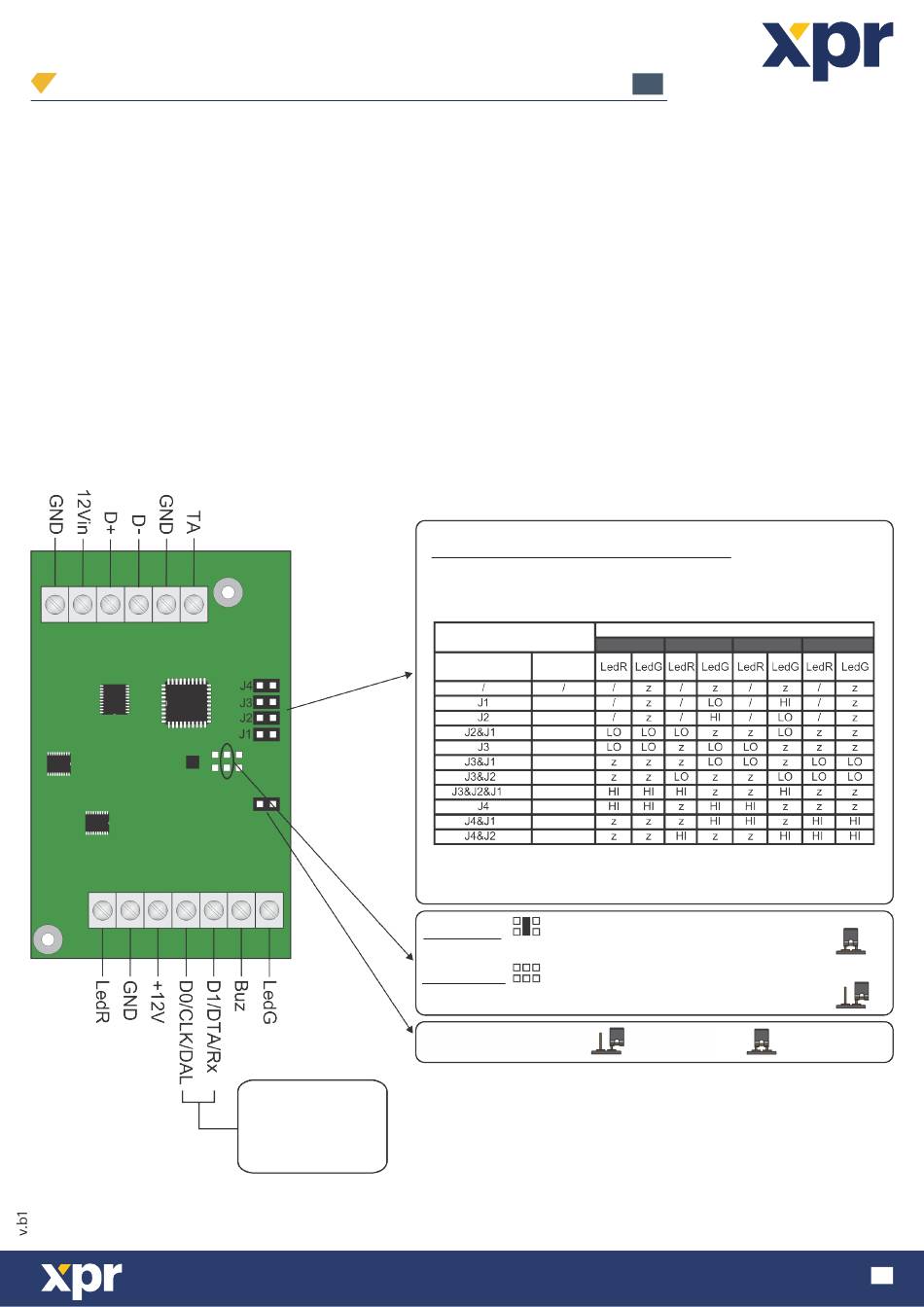

3. JUMPERS AND TERMINAL BLOCKS DESCRIPTION
USER'S MANUAL
Wiegand : DO & D1
ISO2 : CLK & DTA
Dallas : DAL
CodeB : Rx
(9600 BPS)
www.xprgroup.com
Converter Wiegand to RS485
Reader's LEDs configuration
To configure the behavior of the LEDS, check the reader's manual
and put the jumpers according to the table below.
Jumpers position Type
1 wire
1 wire
2 wire
2 wire
2 wire
2 wire
2 wire
2 wire
2 wire
2 wire
z: High impedance/three state
LO: 0 Volts
HI: +5 Volts
Jumper closed:
Wiegand mode: disables the possibility to use a Wiegand keypad
Jumper opened:
Wiegand mode: a Wiegand keypad can be used on D0/D1 input; The Keypad
must be configured in Single Key - 8 bits Wiegand - Nibbles Complemented
Jumper opened: Address 0
Jumper closed: Address 1
EN
Reader's LEDs color
Orange Green
Red
Address 0 Address 1
OFF
1
