4. CONNECTION DIAGRAM

Wiegand
Reader
- Set the desired Wiegand Output of the reader.

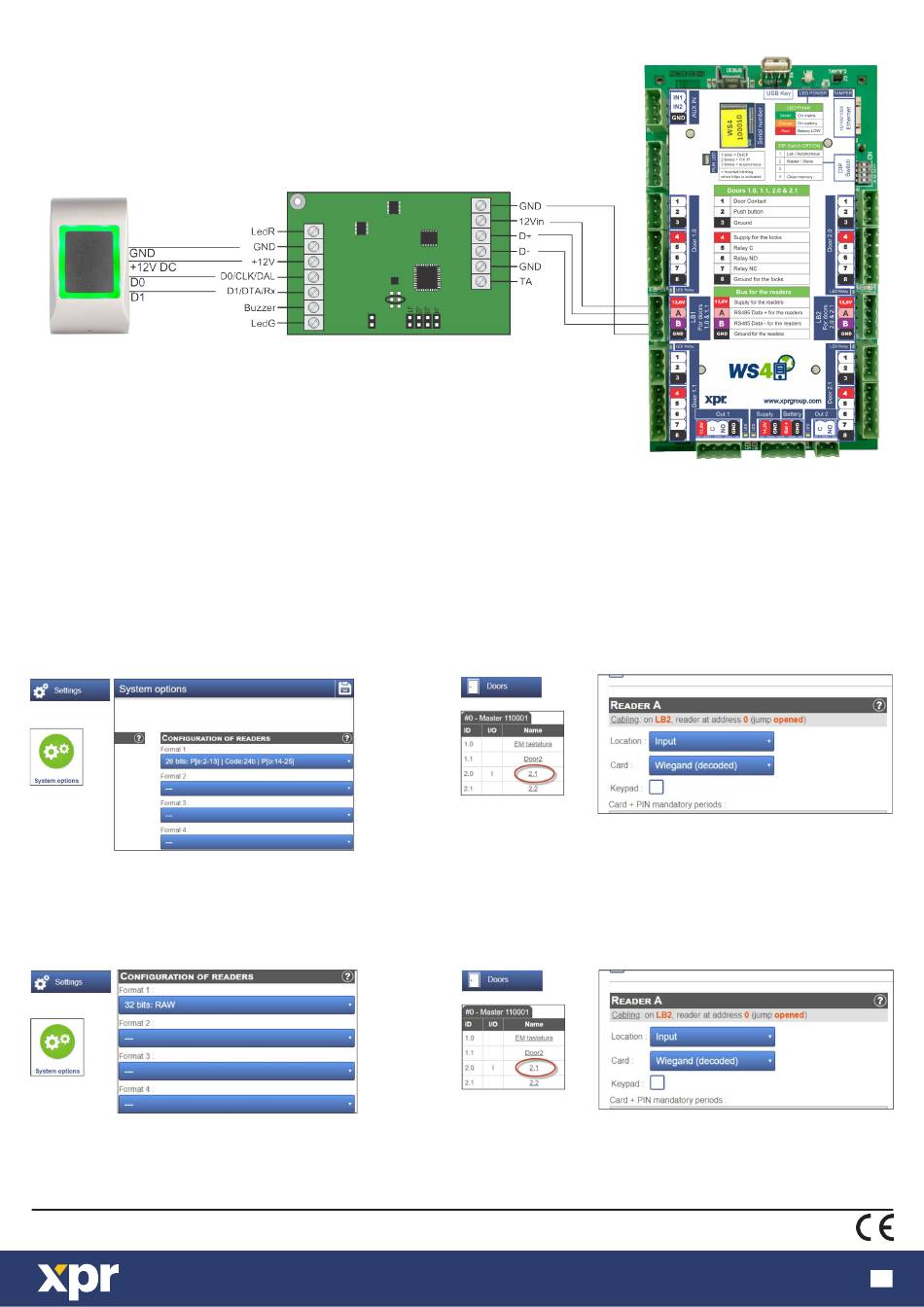

- Connect the Wiegand Reader to the converter as shown in the picture above.
- Put the Address Jumper in the converter to the desired address, 0 or 1.
- Set the parameters for the reader in the WS4 software.
5. SOFTWARE SETTINGS
5.1 WIEGAND 26 BIT
Settings/System Options
In
In Doors/Reader/Card select "Wiegand decoded".
5.2 WIEGAND 32 BIT
Settings/System Options
In
In Doors/Reader/Card select "Wiegand decoded".
This product herewith complies with requirements of EMC directive 2014/30/EU. In addition it complies with RoHS2 directive EN50581:2012 and RoHS3 Directive 2015/863/EU.
WS4-CNV
Wiegand to RS485 converter
select "Wiegand 26bit", the one shown in the picture below.
select "Wiegand 32bit RAW", the one shown in the picture below.
