SEAT

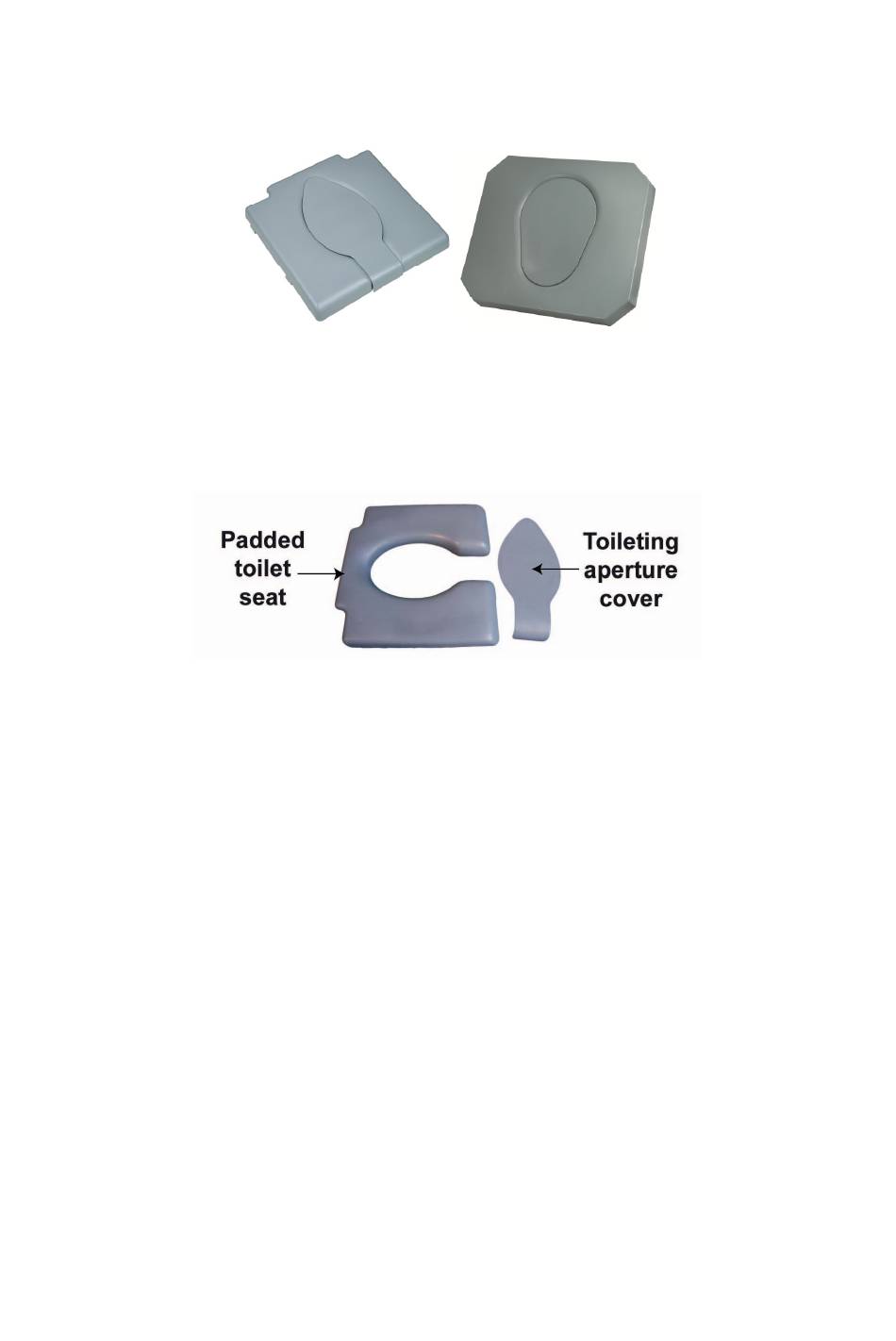

The Bewl comes with a detachable grey horseshoe seat (see Fig. 1) as standard. A pear
shaped aperture seat is also available (see Fig. 2) and may be required by the user, based on
the risk assessment.
APERTURE COVER
When transferring to and from the Bewl Shower Chair be careful not to apply weight to the
grey removable toileting aperture cover. This may cause the padded aperture cover to push
through.
NB. The padded aperture cover is not designed to be load bearing.
SELF PROPELLED WHEELS
On the self propelled model, the 580 mm diameter rear wheels are packed separately. The
wheels are attached to the frame by the large square silver brackets on the rear vertical legs
of the frame.
1. Remove the wheels from their packaging.
2. Hold the wheel in position against the silver bracket so that the centre of the wheel
is against the locating hole in the bracket.
3. Press the black button in the centre of the wheel to pass the locking bar axle
through the bracket into the frame. Do not apply excessive force – when
positioned correctly it should slide gently into the locating hole.
4. Continue to apply pressure until the button clicks into place and will move no
further.
5. Check that the wheel is correctly installed by pulling it away from the frame – if
correctly installed the wheel will remain attached: If the wheel comes away from
the frame follow steps 2 – 4 again until it is correctly installed.
Assembly and Operating Instructions
Fig. 1
4
Fig. 2
