Calibration of channel 1 and 2
1. Turn the directional knob of control channel 1 with maximum width 2-3x to the left and right
2. Turn the throttle knob of control channel 2 2-3x forwards and backwards with maximum width.
3. The calibration is now complete.
Calibration of channel 3 and 4
1. Press the button of channel 3 with the light on and set the driving destination
2. Turn the driving knob of channel 1
3. Press the button of channel 4 with the light on
4. Turn the driving knob of channel 1 again to set the target value
5. The calibration of channels 3 and 4 is now complete.
After completing the setting, press the power button again and confirm that an acoustic path calibration of channels 1-4
is completed.

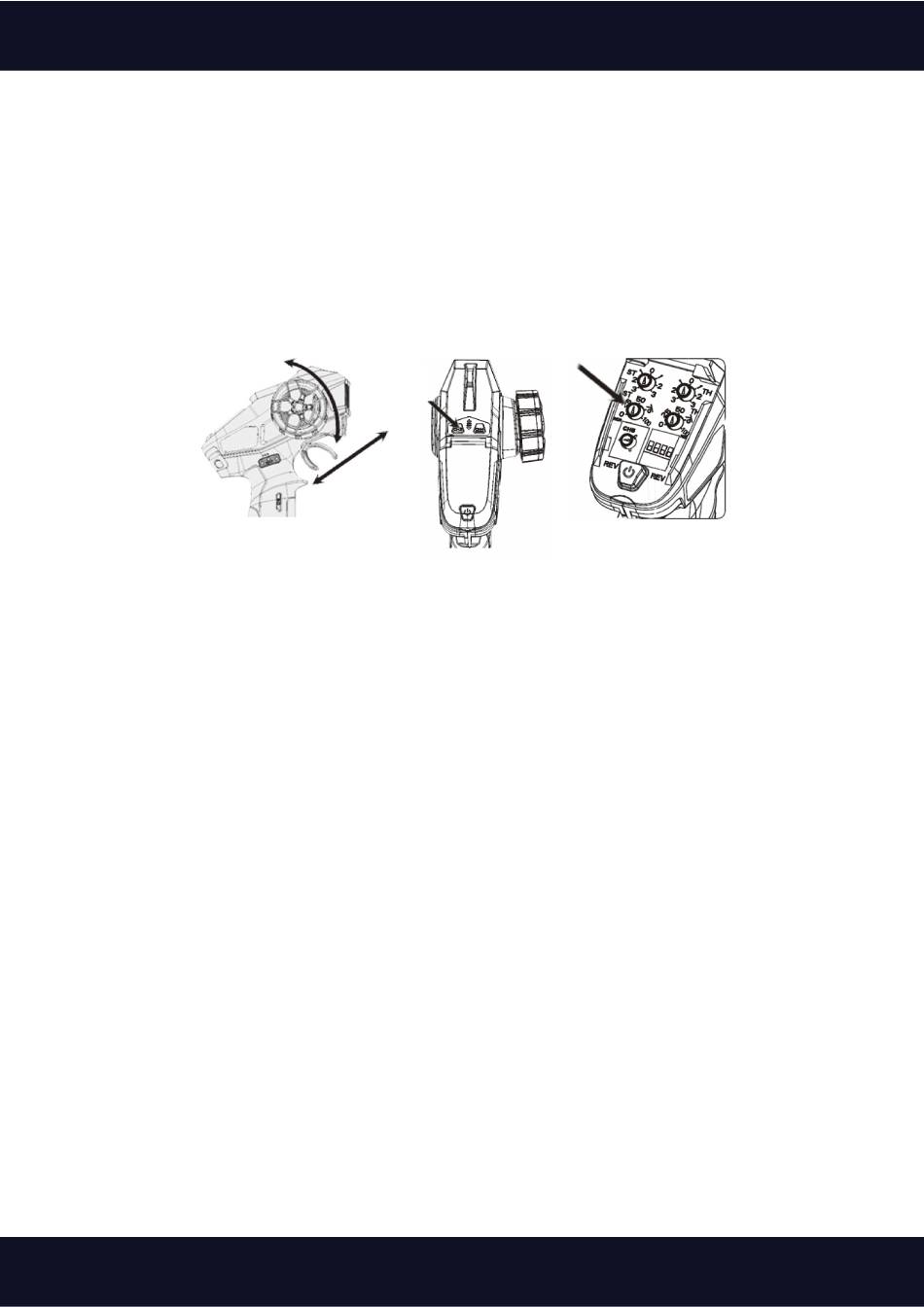

Switching the mode

1. Set the handwheel and the shutter release to the maximum value at the same time.
2. Press the power button to start. An acoustic signal will sound.
3. When the red and blue lights flash, release the handwheel and the shutter release button
4. Press the power button within 5 seconds to change the mode.
5. Advance the shutter release to the maximum and then snap it back to the maximum to change to the appropriate mode
(red mixed control, blue normal mode).
6. This completes the mixed control settings for channels 1 and 2.
7. If you only need mixed control of channels 1 and 2, press the power button to confirm that the mode change is complete.
If you want to operate the mixed control for channels 3 and 4, do not press the power button.
1. Turn the handwheel forwards as far as it will go and then backwards as far as it will go to switch. The status light continues to flash.
2. If the indicator lights of channels 3 and 4 are off, they are in normal mode.
3. If the indicator lights of channels 3 and 4 are on, they are in mixed mode.
4. Press the power button to confirm that the mode change is completedt
When the mode changeover is completed, channels 3 and 4 cannot set the positive and negative value of the travel in mixed control.
If the status lights of channels 3 and 4 light up when the handwheel is operated, this means that they are under mixed control.

Mixed mode

The signal lines of the two controllers are connected to channels 1 and 2 of the receiver.
In mixed control mode, the throttle channel can control 2 motors turning forward and backward at the same time. The motor rotation is
adjusted with the 2 forward and reverse switches on the control panel.
In mixed control mode, the model moves forward at a certain speed. By turning the handwheel of channel 1 at this time, the speed of the two
motors can be adjusted to achieve differential steering.
In mixed control mode, the model moves forward at a certain speed. By turning the direction handwheel of channel 1 at this time, the speed of
both motors can be adjusted to achieve differential steering.
