Basic operations

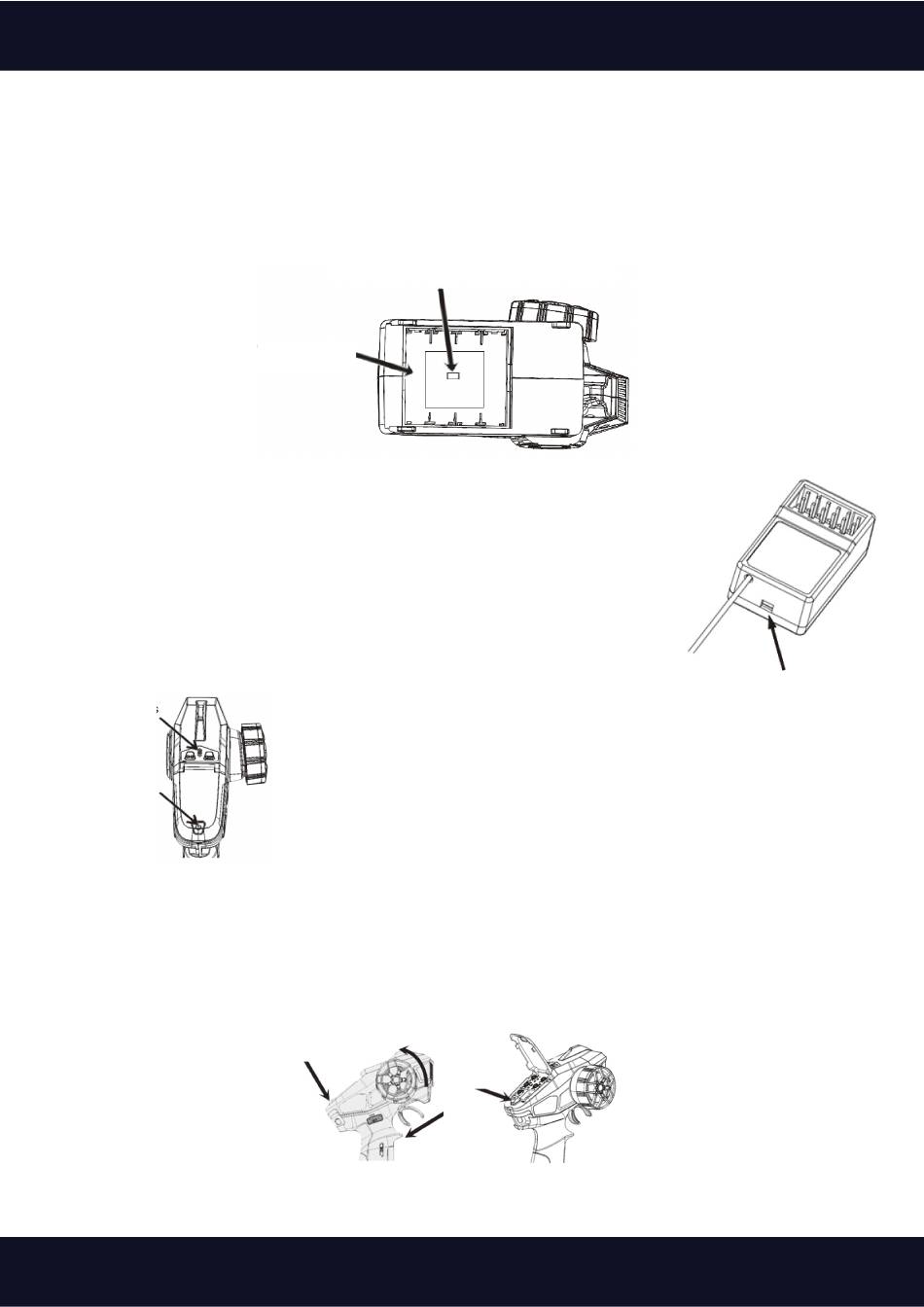

Battery installation
1. Open the battery compartment cover.
2. Insert 4x AA batteries with sufficient power or 2S lithium batteries into the battery compartment, making sure that the metal terminals of the
batteries are connected to the metal terminals in the battery compartment.
3. Close the battery compartment cover.
Or: Insert the lithium battery with JST connector into the external battery connector of the battery compartment - pay attention to the polarity!
Transmitter/receiver binding
1. Switch on the transmitter.
2. Press and hold the code button on the top of the receiver for 3 seconds.
3. The display will start flashing to indicate that it is now in code matching mode.
4. The receiver automatically searches for the nearest remote control signal.
5. The indicator light lights up as soon as the code matching has been successful.
Voltage return lights
Status lights

Settings menu

Enter settings
1. Set the handwheel and the shutter release to the maximum value at the same time.
2. Press the power button to switch on the device. You should hear a sound.
3. Release the handwheel and the trigger and press the power button again within 5 seconds.
4. When the blue light of the power button flashes, it means that the device is in setting mode on.
www.modster.com
External JST connector for a lithium battery
4x AA Batterys
LEDs
Blue light: Lights up for the vehicle's servo control mode.
