IECEx Installation Drawing

LERBAKKEN 10, 8410 RØNDE DENMARK
9113
For safe installation of 9113B the following must be observed. The module shall only be
installed by qualified personnel who are familiar with the national and international laws,
directives and standards that apply to this area.
Year of manufacture can be taken from the first two digits in the serial number.
4501
For Installation in Zone 2 / Division 2 the following must be observed.
The 4501 programming module is to be used solely with PR electronics modules. It is important
that the module is undamaged and has not been altered or modified in any way. Only 4501
modules free of dust and moisture shall be installed.
IECEx Certificate: ............................................................KEM 09.0052 X
Marking
Standards
Hazardous area
Zone 0,1,2, 20, 21, 22
Revision date:
2009-11-27

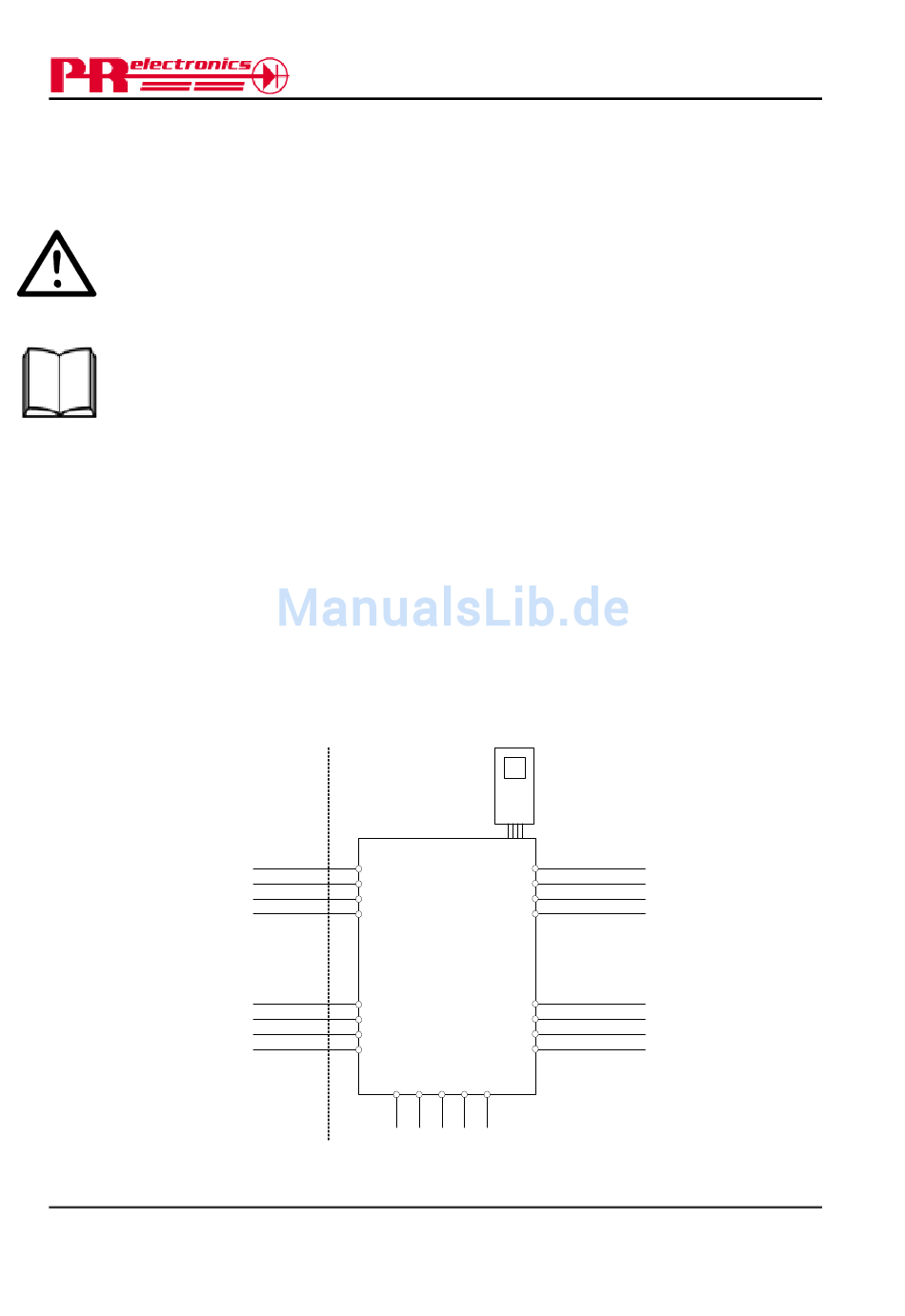

IECEx Installation drawing

Ex nA nC IIC T4 Gc
[Ex ia Ga] IIC/IIB/IIA
[Ex ia Da] IIIC
IEC60079-15 :2005, IEC60079-11:2006, IEC60079-0: 2007
IEC60079-26: 2006, IEC61241-0: 2004, IEC61241-11:2005
Non Hazardous area
or Zone 2
-20 ≤Ta ≤ +60ºC
44
43
42
41
54
53
52
51
91 92 93 94 95
Version Revision:
V3 R0
9113 - Product Version 9113-002
4501
34
33
32
31
14
13
12
11
9113
Power
Rail
Prepared by:
PB
9113QI01
(terminal 11,12,13,14)
(terminal 31,32,33,34)
(terminal
91,92,93,94,95)
U : 253 V, max. 400 Hz
m
Page:
1/3
