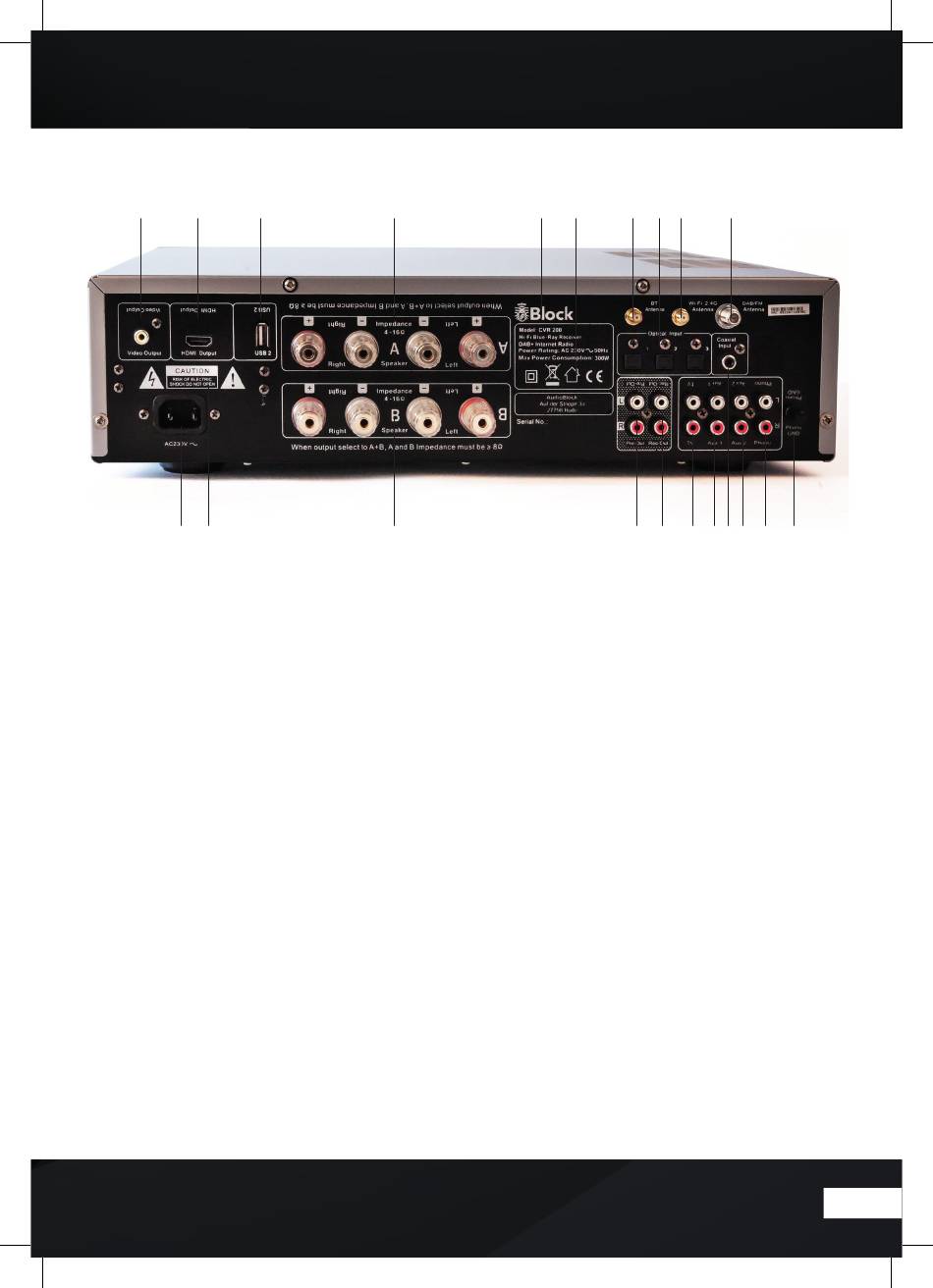

Connections on the device
1.
Mains connection: the mains connection cable
may show no damages or defects.
2.
warnings
3.
Loudspeaker connection A: please en sure the
correct connection of plus and minus!
4.
Loudspeaker connection B: please en sure the
correct connection of plus and minus!
5.
Type designation and electric current specifications.
6.
Optical Inputs 1-3: connect here an optical digital
cable.
7.
Coaxial input: connect here a coaxial cable.
8.
Pre-Out Output jack: to connect another
amplifier or a subwoofer.
9.
Rec-Out jack: to connect a recording device.
10.
TV input jack: to connect a TV set.
3 5
4
11.
AUX1 and AUX2 input jack: to connect an
additional device.
12.
Phonon input jack: to connect a record player
with MM system.
13.
Ground screw connection: to connect a ground
cable for record player.
14.
DAB + / FM aerial connection
15.
Lan connector jack for RJ-45 plug (Ethernet)
16.
Bluetooth-aerial connection
17.
WLAN aerial connection
18.
Inspection marks and disposal instructions.
19.
USB 2
20.
HDMI output
21.
Video output
