Scale division value: 0.01 mm margins of error
(values without measuring jaws):
• PFEIFER rope calliper gauge 40
± (0.02 + 0.00005 x L[mm]) mm
• PFEIFER rope calliper gauge 60 ± 0.02 mm
• PFEIFER rope calliper gauge 75
± (0.02 + 0.00005 x L[mm]) mm
• PFEIFER rope calliper gauge 125
40 mm – 100 mm: ± 0.02 mm
◆
100 mm – 125 mm: ± 0.03 mm
◆
IP protection class:
• PFEIFER rope calliper gauge 60 no IP certification
• PFEIFER rope calliper gauge 60 IP 67
• PFEIFER rope calliper gauge 75 no IP certification
• PFEIFER rope calliper gauge 125 IP 67
Measuring jaws/measuring area:
• PFEIFER rope calliper gauge 40: 45 mm x 16 mm,
material: untempered steel
• PFEIFER rope calliper gauge 60: 60 mm x 30 mm
(effective: 57 mm x 28 mm), material: tempered steel
PFEIFER rope calliper gauge 40
PFEIFER rope calliper gauge 60
• PFEIFER rope calliper gauge 75: 45 mm x 30 mm,
material: untempered steel
• PFEIFER rope calliper gauge 125: 100 mm x 80 mm,
material: aluminium

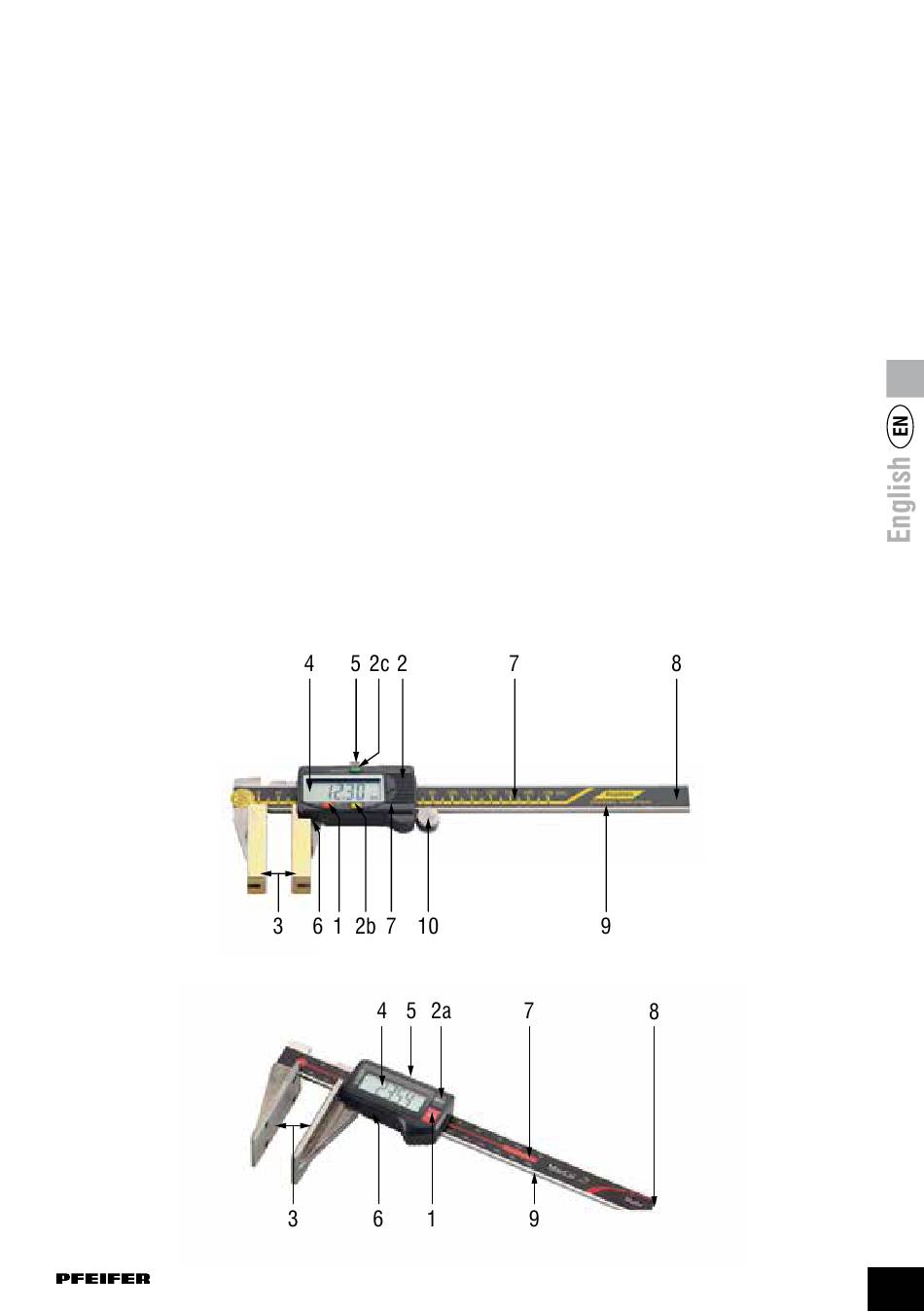

Components/Designations
1 On/Off button & zeroing
2a Millimetre/Inch & hold function (only applies to
PFEIFER rope calliper gauge 60 & 125)
2b Zeroing (only applies to PFEIFER rope calliper
gauge 40 & 75)
2c Millimetre/Inch function (only applies to PFEIFER
rope calliper gauge 40 & 75)
3 Measuring jaws for measuring diameter
4 Display
5 Locking screw
6 Battery compartment
7 Scale (not relevant for rope diameter measurement)
8 Depth (not relevant for rope diameter measurement)
9 Rail
10 Thumb roller (only on PFEIFER rope calliper
gauge 40 & 75)
PFEIFER rope calliper gauge 01/2022 / Subject to change!
