b) Configuration for vehicles with trailers
With vehicles with trailers the control lines must be connected as follows:
GB
Configuration for vehicles with trailers
Control line
Quad
POC
SEL1
SEL2
SEL3
SEL4
The system automatically switches to the trailer camera (camera 2) if this is connected to C2 by
mneas of a suitable cable (e.g. MK84.xx).
3.4 Start-up
Before putting the camera system into operation, the safety regulations outlined under point 2
must be observed. The remaining settings (e.g. image mirroring) should be set up as follows:

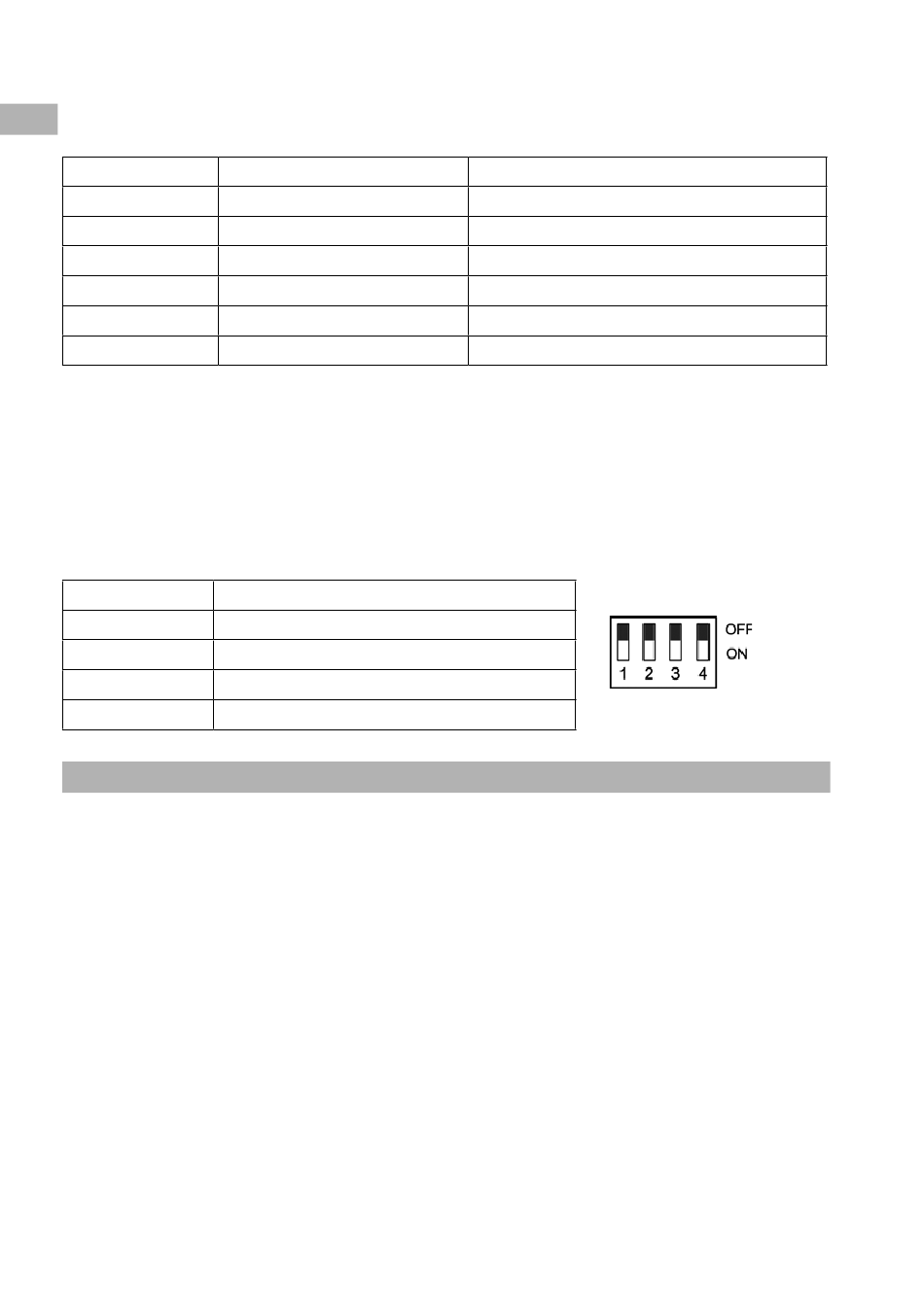

a) Setting the DIP switches
Switch
1
2
3
4
4.1 Operation of the device
The MB1405-Quad is switched on by applying the supply voltage. A display can be switched
on by applying the supply voltage to the "POC" line. The control lines for the MB1405-Quad
are activated using NO contacts (see Fig. 3.1-1).
The appropriate camera is selected via the corresponding control line. When selecting a camera
via the control lines, the camera input with the lowest number has the highest priority.
4.2 Single mode
Example:
Control lines 1 and 4 activated:
Control lines 3 and 4 activated:
Control lines 2, 3 and 4 activated:
18
Function
Split-screen
Display contact On/Off
Control line 1
Control line 2
Control line 3
Control line 4
Function
Camera C4 image mirroring, left/right
Camera C3 image mirroring, left/right
Camera C2 image mirroring, left/right
Camera C1 image mirroring, left/right
4.0 Operation
Display: camera 1
Display: camera 3
Display: camera 2
Connection to
Contact
Switch plus
Reverse gear
Contact trailer camera
Contact
Switch plus (e.g for front camera)
