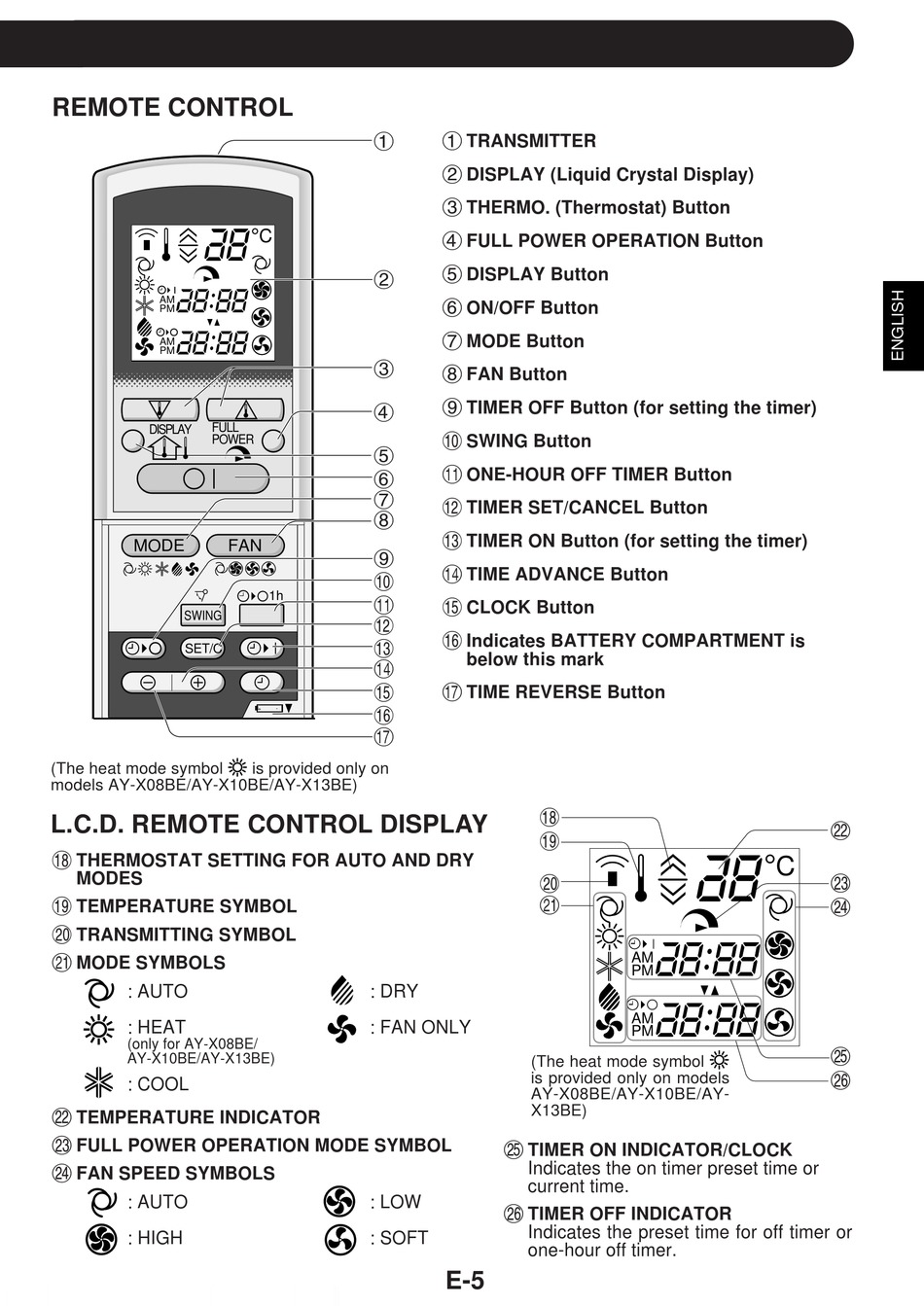

REMOTE CONTROL
AM
PM
AM
PM
FULL
DISPLAY
POWER
MODE
SWING
SET/C
(The heat mode symbol
models AY-X08BE/AY-X10BE/AY-X13BE)
L.C.D. REMOTE CONTROL DISPLAY
i THERMOSTAT SETTING FOR AUTO AND DRY
MODES
o TEMPERATURE SYMBOL
p TRANSMITTING SYMBOL
a MODE SYMBOLS
: AUTO
: HEAT
(only for AY-X08BE/
AY-X10BE/AY-X13BE)
: COOL
s TEMPERATURE INDICATOR
d FULL POWER OPERATION MODE SYMBOL
f FAN SPEED SYMBOLS
: AUTO
: HIGH
1
C
2
3
4
5
6
7
8
FAN
9
0
1h
q
w
e
r
t
y
+ -
u
is provided only on
: DRY
: FAN ONLY
: LOW
: SOFT
1 TRANSMITTER
2 DISPLAY (Liquid Crystal Display)
3 THERMO. (Thermostat) Button
4 FULL POWER OPERATION Button
5 DISPLAY Button
6 ON/OFF Button
7 MODE Button
8 FAN Button
9 TIMER OFF Button (for setting the timer)
0 SWING Button
q ONE-HOUR OFF TIMER Button
w TIMER SET/CANCEL Button
e TIMER ON Button (for setting the timer)
r TIME ADVANCE Button
t CLOCK Button
y Indicates BATTERY COMPARTMENT is
below this mark
u TIME REVERSE Button
i
o
p
a
(The heat mode symbol
is provided only on models
AY-X08BE/AY-X10BE/AY-
X13BE)
g TIMER ON INDICATOR/CLOCK
Indicates the on timer preset time or
current time.
h TIMER OFF INDICATOR
Indicates the preset time for off timer or
one-hour off timer.
E-5
C
AM
PM
AM
PM
s
d
f
g
h
