Installation - Scanic LED Tube Bedienungsanleitung

Inhaltsverzeichnis

Werbung

7. Transport
VORSICHT:
ZERBRECHLICH!
Um Transportschäden auszuschließen, verpacken Sie das Produkt bitte nur in der
ursprünglichen Originalverpackung und lassen Sie beim Transport Vorsicht walten!
Anschlüsse
1
2
1. Steuerungsignal-Eingangskabel
2. Stromversorgungs-Eingangskabel
3. Stromversorgungs-Ausgangskabel
4. Steuerungsignal-Ausgangskabel

Installation

Scanic LED Controller
Stromnetz / power supply
Stromnetz / power supply
1.
Verbinden
Sie
das
Steuerungssignal-Eingangskabel
Steuerungssignal-Ausgangskabel des Scanic LED Controllers.
HINWEIS!
Beachten Sie hierzu auch die Bedienungsanleitung Ihres Scanic LED
Controllers.
2. Verbinden Sie bei Bedarf das Steuerungssignal-Ausgangskabel -4- mit dem
Steuerungssignal-Eingangskabel einer weiteren Scanic LED Tube. Verbinden Sie
dann auch das Stromversorgungs-Ausgangskabel -3- miz dem Stromversorgungs-
Eingangskabel dieser Scanic LED Tube.
HINWEIS!
So können Sie eine Installation von bis zu 1000 Scanic LED Tubes
einrichten. Beachten Sie hierzu, dass Sie alle 60 Scanic LED Tubes
zwischen die Steuerungssignal-Kabel der 60. und 61. Scanic LED Tube
einen Signalverstärker schalten und diesen mit dem Stromnetz
verbinden müssen und dass Sie alle 90 Scanic LED Tubes das
Stromversorgungs-Ausgangskabel der 90. Scanic LED Tube mit einem
Schlussstopfen verschließen und das Netzkabel der 91. Scanic LED Tube
erneut über den Anschluss des Netzkabels mit dem Stromnetz verbinden
müssen.
7. Transport
To avoid damage caused during transport, wrap the product in its original
packaging only and handle it with great care during transport!
Connections
1. Control signal - cable IN
2. Power supply - cable IN
3. Power supply - cable OUT
4. Control signal - cable OUT
Installation
Verschluss-Stopfen / end plug
-1-
mit
dem

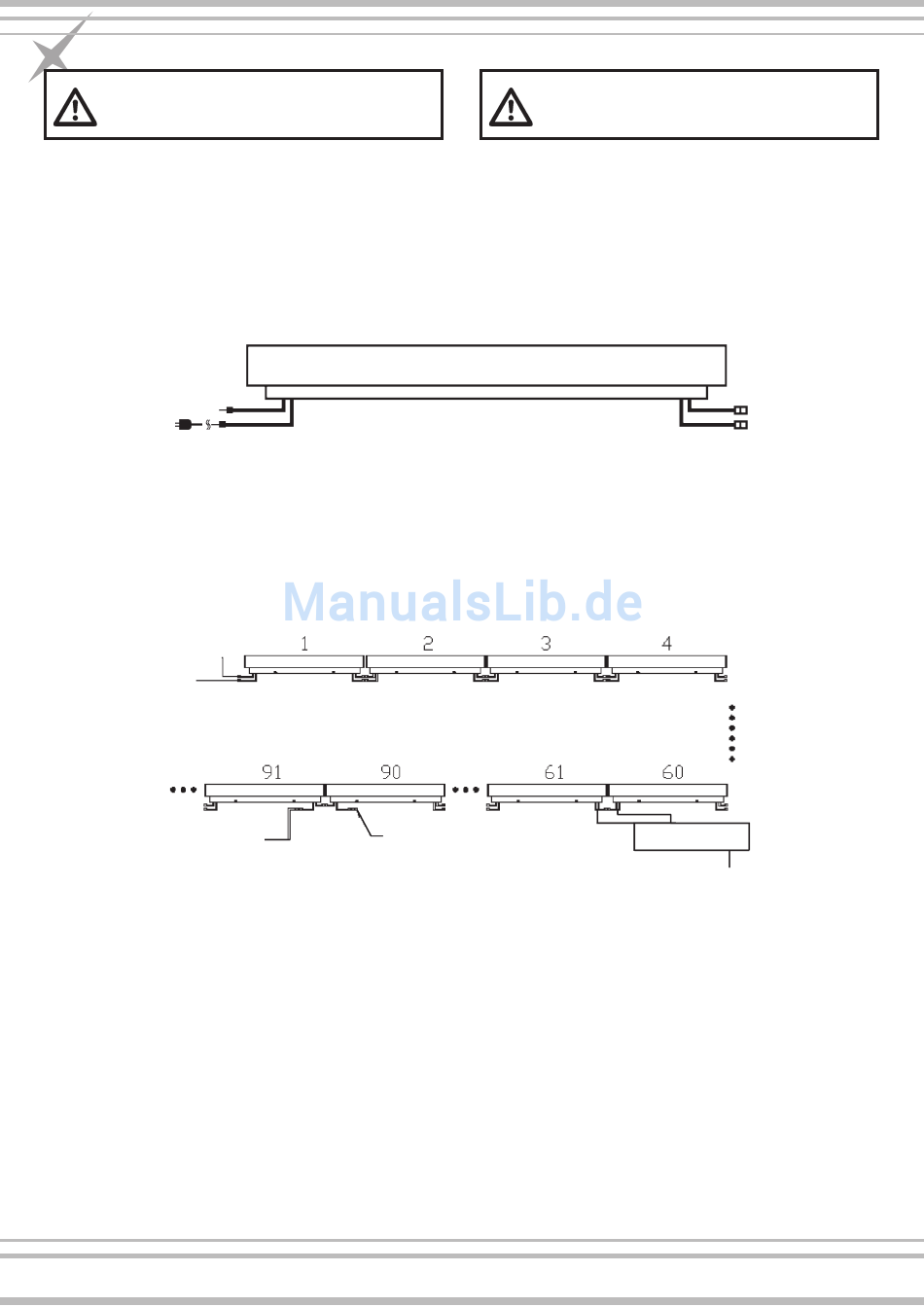

1. Connect the Control Signal - cable IN -1- with the Control Signal - cable OUT of
the Scanic LED Controller.
NOTE!
Please observe the operating instructions of your Scanic LED Controller.
2. Optionally, connect the Control Signal - cable OUT -4- with the Control Signal -
cable IN of an additional Scanic LED Tube. Also connect the Power Supply - cable
OUT -3- with the Power Supply - cable IN of this Scanic LED Tube.
NOTE!
To install up to 1000 Scanic LED Tubes, proceed as follows: Be sure to
switch a signal amplifier for every 60 Scanic LED Tubes between the
Control Signal cables of the 60th and 61st Scanic LED Tube which has to
be connected to the power supply and to close the Power Supply - cable
OUT of the 90th Scanic LED Tube with an end plug for every 90 Scanic LED
Tubes and to connect the mains cable of the 91st Scanic LED Tube yet
again via the mains cable connection with the mains supply.
CAUTION:
FRAGILE!
4
3
Signalverstärker /
signal amplifier
Stromnetz / power supply
6
