Loewe REFERENCE 52 SL Serviceanleitung Seite 29

TECHNICAL CUSTOMER SERVICE
5.3 Disassembly of the controller board
The controller board is also fastened to the panel with three Phillips screws.
The screw in the centre at the bottom can be reached through a hole in the crossbar (see fig.
28).
After unscrewing the screws, the module can be removed from the panel.

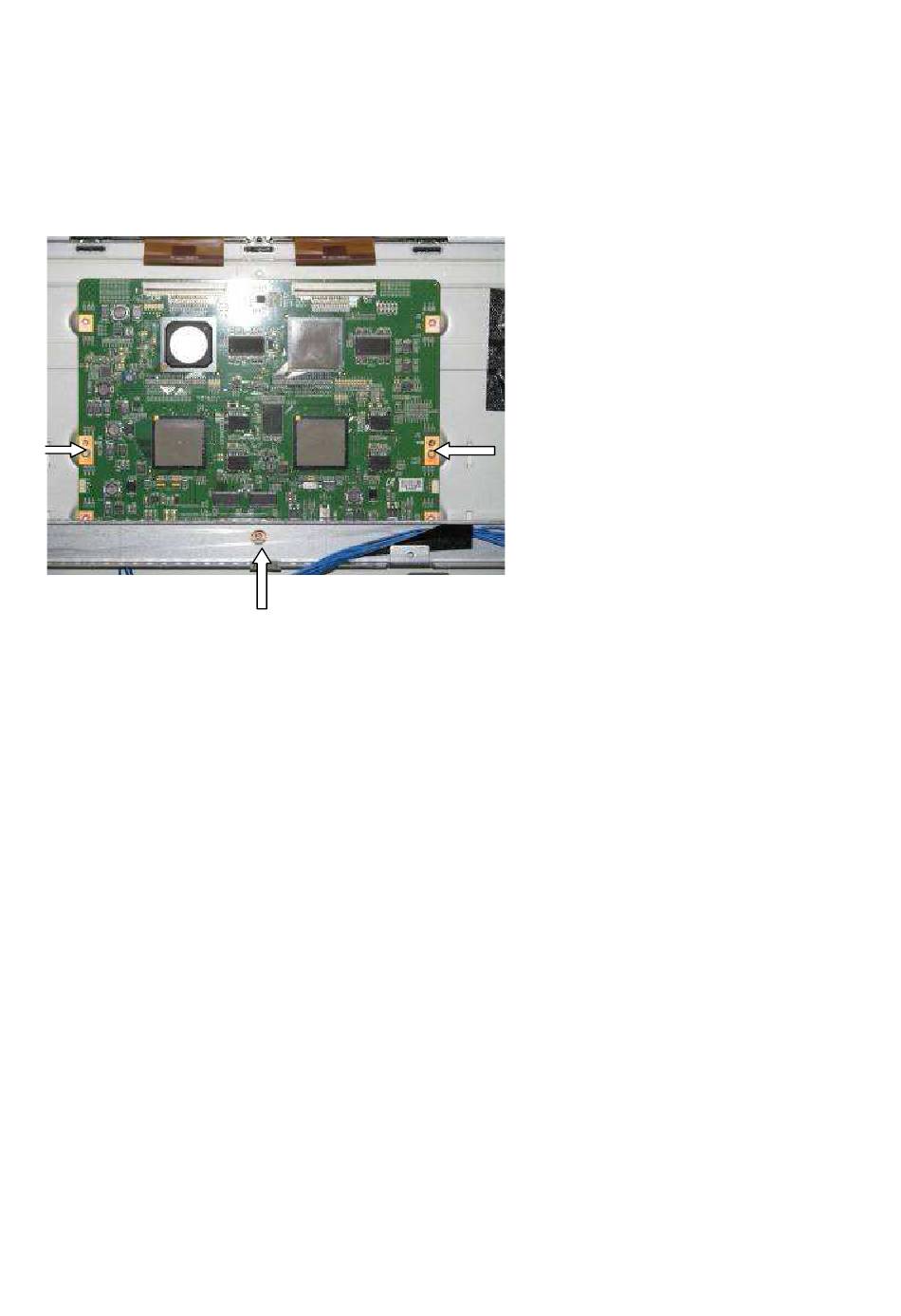

Fig. 28
To install, follow the instructions above in reverse.
