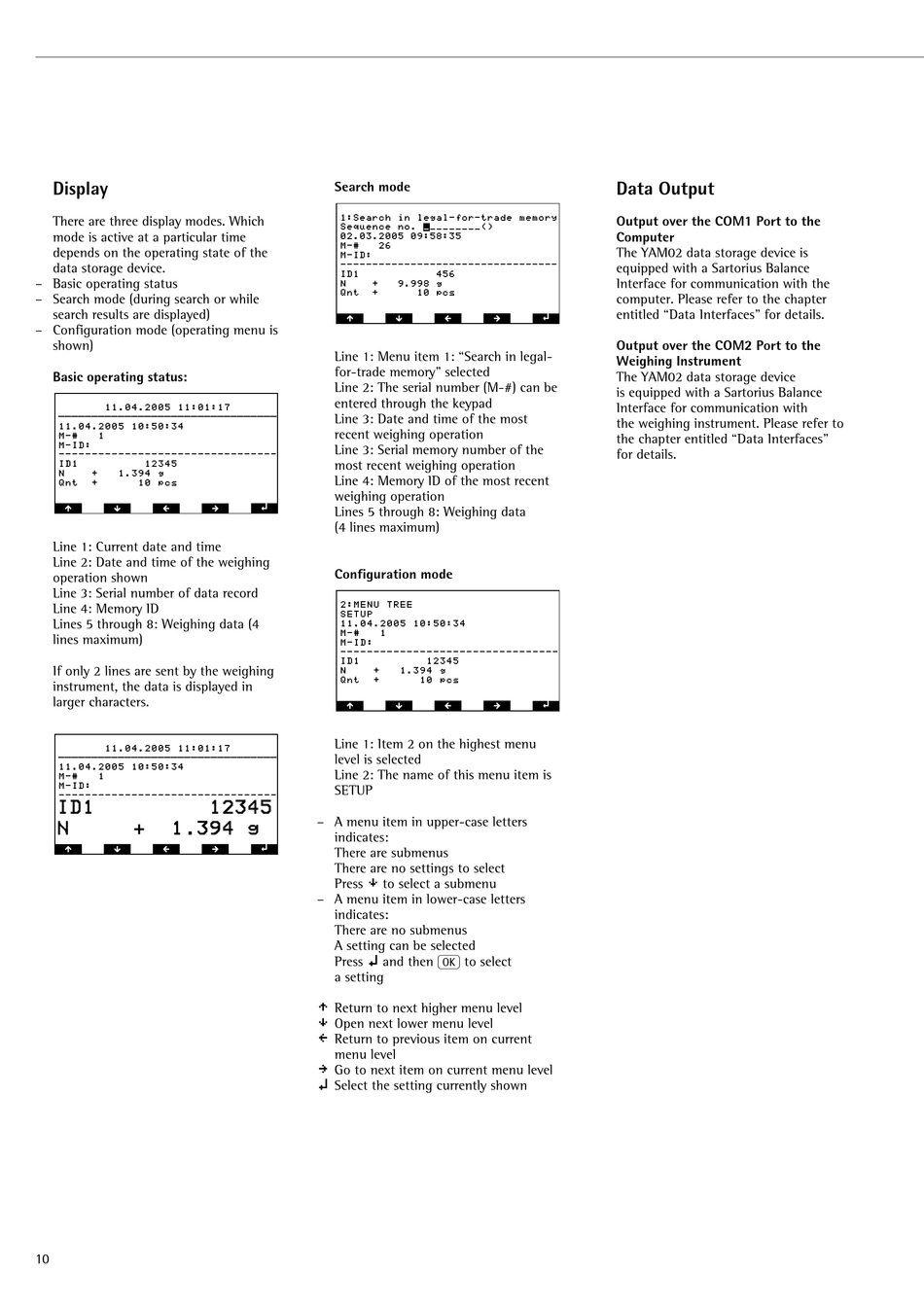

Display

There are three display modes. Which
mode is active at a particular time
depends on the operating state of the
data storage device.
– Basic operating status
– Search mode (during search or while
search results are displayed)
– Configuration mode (operating menu is
shown)
Basic operating status:
11.04.2005 11:01:17
—————————————————————————————————
11.04.2005 10:50:34
M-# 1
M-ID:
---------------------------------
ID1 12345
N + 1.394 g
Qnt + 10 pcs
Line 1: Current date and time
Line 2: Date and time of the weighing
operation shown
Line 3: Serial number of data record
Line 4: Memory ID
Lines 5 through 8: Weighing data (4
lines maximum)
If only 2 lines are sent by the weighing
instrument, the data is displayed in
larger characters.
11.04.2005 11:01:17
—————————————————————————————————
11.04.2005 10:50:34
M-# 1
M-ID:
---------------------------------
ID1 12345
N + 1.394 g
10
Search mode
1:Search in legal-for-trade memory
Sequence no. _________()
02.03.2005 09:58:35
M-# 26
M-ID:
----------------------------------
ID1 456
N + 9.998 g
Qnt + 10 pcs
Line 1: Menu item 1: "Search in legal-
for-trade memory" selected
Line 2: The serial number (M-#) can be
entered through the keypad
Line 3: Date and time of the most
recent weighing operation
Line 3: Serial memory number of the
most recent weighing operation
Line 4: Memory ID of the most recent
weighing operation
Lines 5 through 8: Weighing data
(4 lines maximum)
Configuration mode
2:MENU TREE
SETUP
11.04.2005 10:50:34
M-# 1
M-ID:
---------------------------------
ID1 12345
N + 1.394 g
Qnt + 10 pcs
Line 1: Item 2 on the highest menu
level is selected
Line 2: The name of this menu item is
SETUP
– A menu item in upper-case letters
indicates:
There are submenus
There are no settings to select
Press z to select a submenu
– A menu item in lower-case letters
indicates:
There are no submenus
A setting can be selected
Press l and then O to select
a setting
Z Return to next higher menu level
z Open next lower menu level
u Return to previous item on current
menu level
U Go to next item on current menu level
l Select the setting currently shown

Data Output

Output over the COM1 Port to the
Computer
The YAM02 data storage device is
equipped with a Sartorius Balance
Interface for communication with the
computer. Please refer to the chapter
entitled "Data Interfaces" for details.
Output over the COM2 Port to the
Weighing Instrument
The YAM02 data storage device
is equipped with a Sartorius Balance
Interface for communication with
the weighing instrument. Please refer to
the chapter entitled "Data Interfaces"
for details.
