Mounting and Connection Instructions TouchCenter Keypad TFT BUS-2

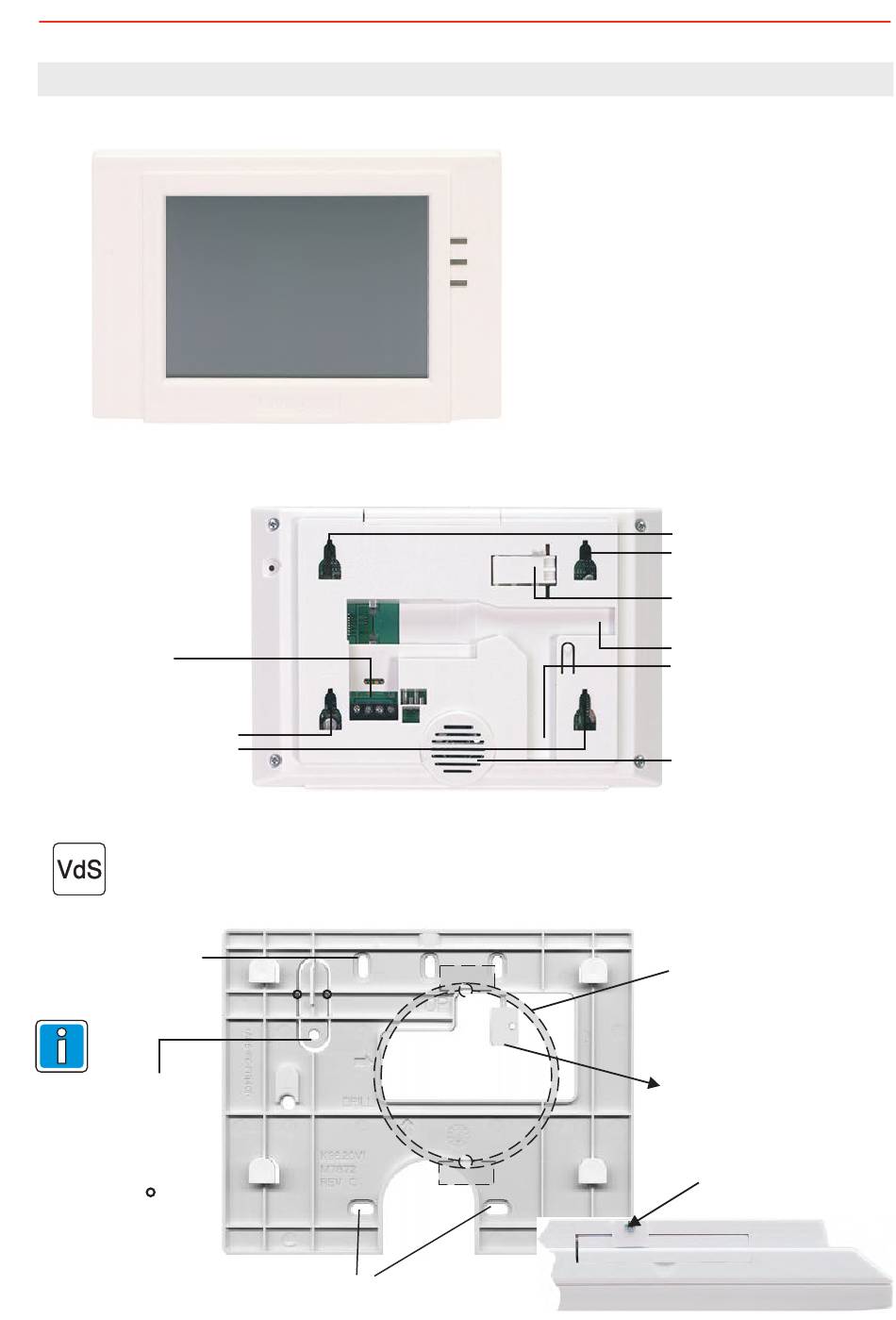

6. Overview

6.1 Front view

6.2 Rear view

Connection
BUS-2
Fixing holes for

mounting plate

6.3 Mounting plate
For installation according to VdS, the mounting plate with screwable locking mechanism
of the VdS-Kit (Item no. 012578) must be used. Please note the mounting hints of the
documentation of the VdS-Kit.
Fixing holes
Fixing hole
for tear-off
protection.
After mounting
please cutt off the
plastic web „ „
with wire cutter!
Fixing holes
LED red
Lights up: Intrusion alarm
Flashes: Tamper- or hold-up alarm
LED green
Lights up: Unit is ready
LED yellow
Lights up: General system fault of the
central control panel
Flashes: Mains fault of the central
control panel
Fixing holes for
mounting plate
Tamper and tear off
protection switch
Cable entry for
surface mounting
Buzzer
Installation options for
the mounting plate, when
surface mounted over
a mounting box
(example).
After mounting the keypad
install the clamp with
enclosed screw to secure
the flap of the housing.
