WARNING
Risk of injury from falling screens
— Do not stay under the screen.
— Check the screen for secure attachment before using
CAUTION
LED lighting (screens, luminaires) may cause discomfort.
— Switch off unneeded LED lighting.
Monitor
To avoid compromising safety, the following restrictions apply to
the installation of a monitor:
• Use only the screen mount of type Ergotron 60-604-003 sup-
plied by Steelcase.
• Screen weight max. 20 kg.
• Screen size max. 1093 mm (W) / 623 mm (H)
• Connect the monitor only by using an appliance plug.
• Observe the distances to the upper edge of the element and
to the top edge of the desk as shown in the following draw-
ing.

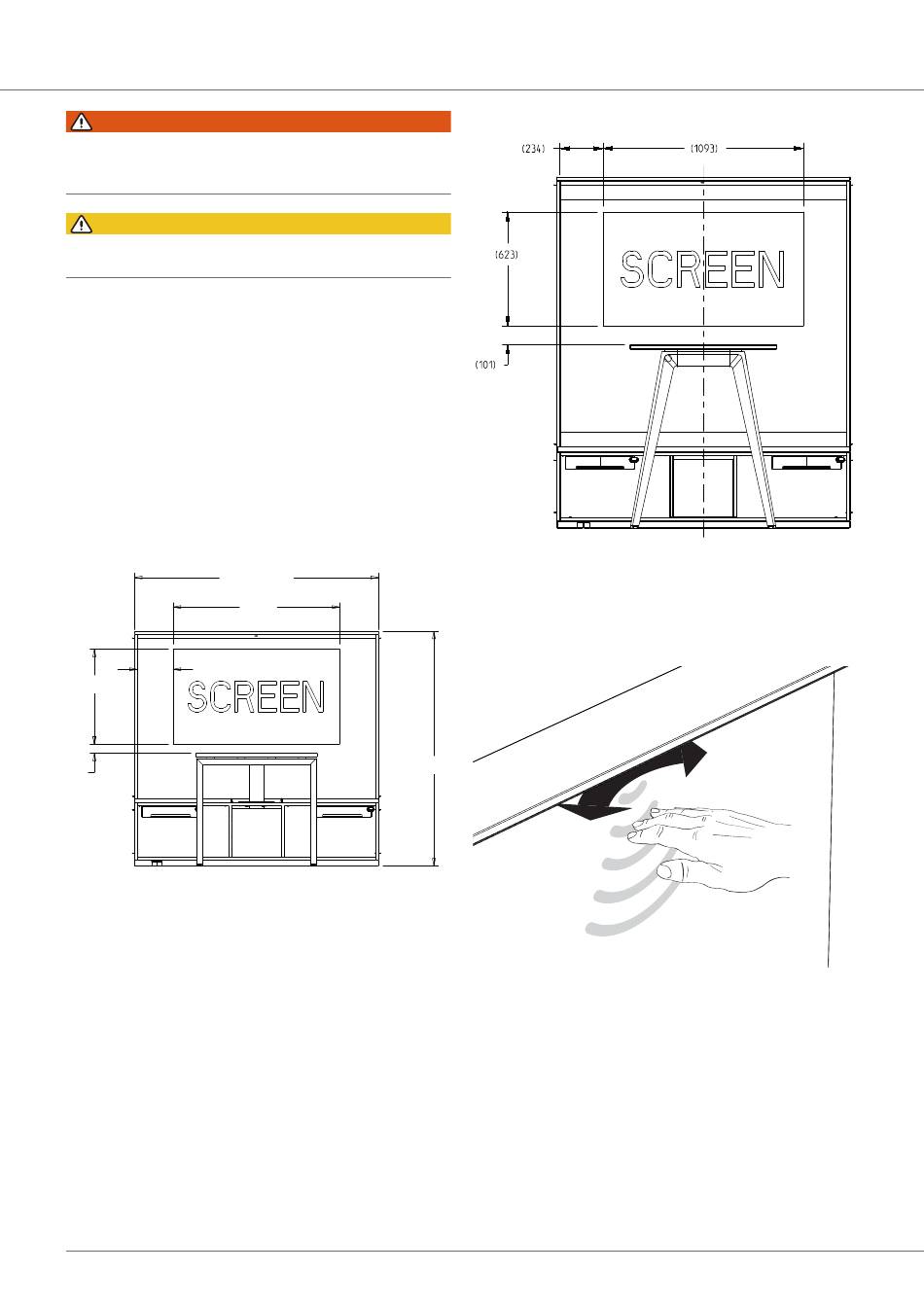

Monitor position (FrameFour)
(WIDTH = 1600)
(234)
(623)
(60)
Dimensions in mm.
116 1075 001 / 01 – 03/2018
16
(1093)
Monitor position (B-Free)
Dimensions in mm.

Operation

Switching on the lighting

(1540)
• Move one hand under the sensor in the centre of the lumi-
naire to turn on the light.
Setting the switching duration of the
luminaire
The switching time of the lighting can be adjusted differently
from the default settings. If there is no movement in the sensor
area, the lighting will switch off after the set time.
