10 Supplement

10.2 Dimensions

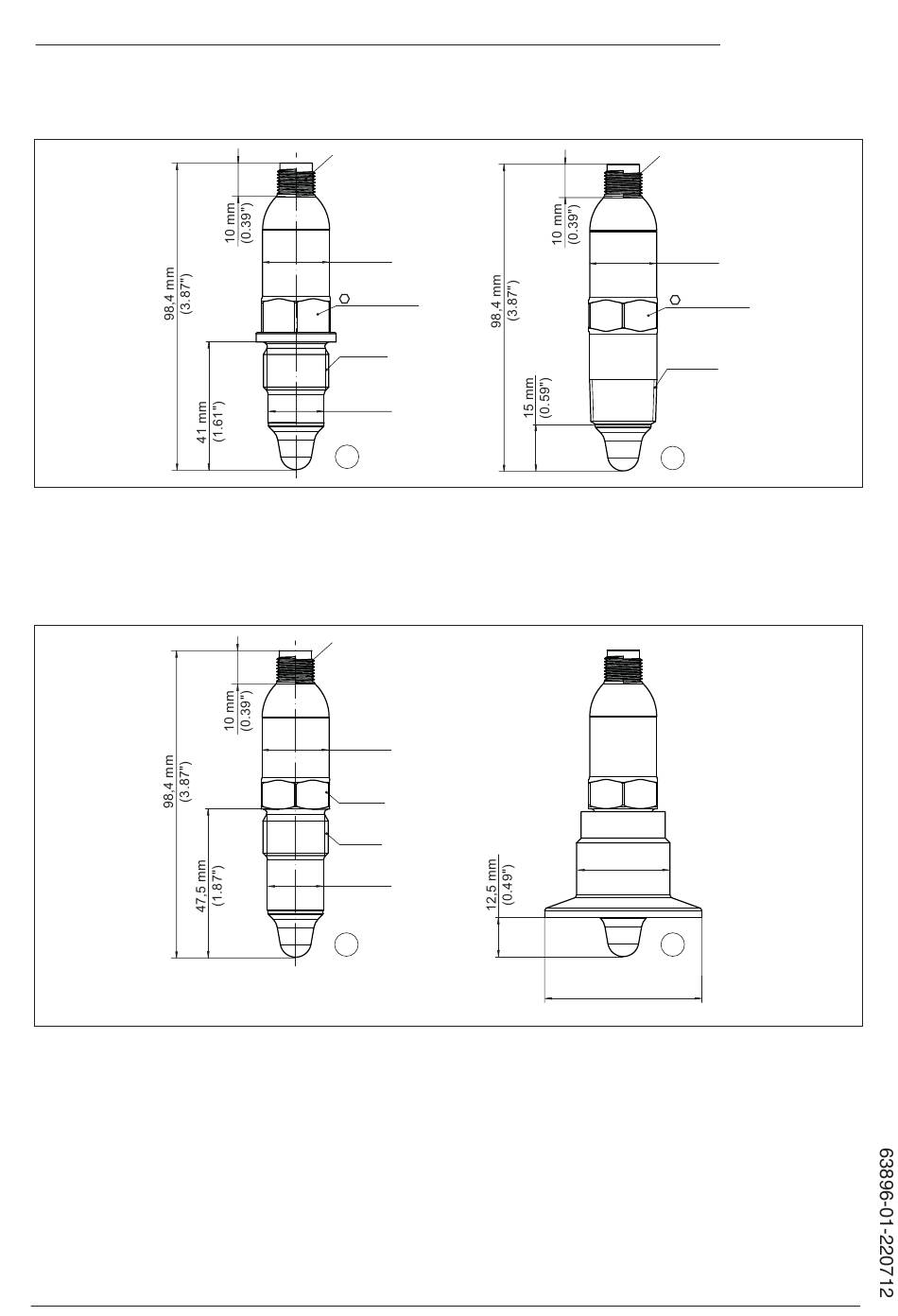

LFC, standard version - thread
Abb. 19: LFC, standard version - thread
1 Thread G½ (DIN ISO 228/1) with M12 x 1 plug connection
2 Thread ½ NPT with M12 x 1 plug connection
LFC, hygienic version - Thread
Abb. 20: LFC, hygienic version - Thread
1 Thread G½ for hygienic threaded adapter (DIN ISO 228/1) with M12 x 1 plug connection
2 LFC, hygienic version in threaded adapter, Clamp
Keep in mind that the total length is extended by the plug connection.
30
M12 x 1
ø 21,5 mm
(0.85")
SW 21/32
G 1 /
2
ø 18 mm
(0.71")
1
M12 x 1
ø 21,5 mm
(0.85")
SW22
G 1 /
2
ø 18 mm
(0.71")
1
M12 x 1
ø 21,5 mm
(0.85")
SW 21/32
1 / NPT
2
2
ø 30 mm
(1.18")
2
ø 50,5 mm
(1.99")
