The application of the KIT Elpro MASTER – SLAVE makes it possible to control, by means of two ELPRO S40 boards, up to 8 retractable
bollards simultaneously.
This instructions sheet refers solely and exclusively to the MASTER/SLAVE connections of the ELPRO S40 control board. For complete
information regarding electrical connections, functions setting and diagnostic on the ELPRO S40 reference should be made to the
instructions provided with the product.
Plug-in PCB for tra c light
provided with the KIT
ELPRO S40 MASTER - SLAVE
63 64 65 66 60 61
+
-
Red
Yellow
55 56
Green
24V DC output
PLUG-IN CONNECTOR FOR 3-
LAMP TRAFFIC LIGHTS MAX
100W EACH LAMP
-
-
+
+
T1
T2
MOTOR RUN TIME
DWELL TIME
1s - 22s
1s - 180s
DIP-SWITCH
ON
L12 L13
OFF
1
2 3
4 5 6 7 8
91011 12
26 27 28 29 30
RADIO
PLUG-IN
CARD
CONNECTOR
E S40 - MASTER
L1
L2
L3
L4
L5
L6
L8
L7
57 58
1
2
3
4
5
6
7
8
9
10
Note well: Whenever Elpro S40 is re-powered, wait 10 seconds for the logic to become fully operating again.
It is IMPORTANT to distinguish the ELPRO S40 MASTER which commands the ELPRO S40 SLAVE by means of the tra c light control card provided
with the KIT Elpro MASTER – SLAVE.
All the accessories for command and safety must be connected to the terminals of the Elpro S40 MASTER that manages and controls the entire
system.
Signalling accessories as LEDs and/or buzzer are connected respectively to the ELPRO S40 MASTER or SLAVE of the bollards it commands.
A possible plug-in tra c light control card is to be connected to the ELPRO S40 SLAVE.

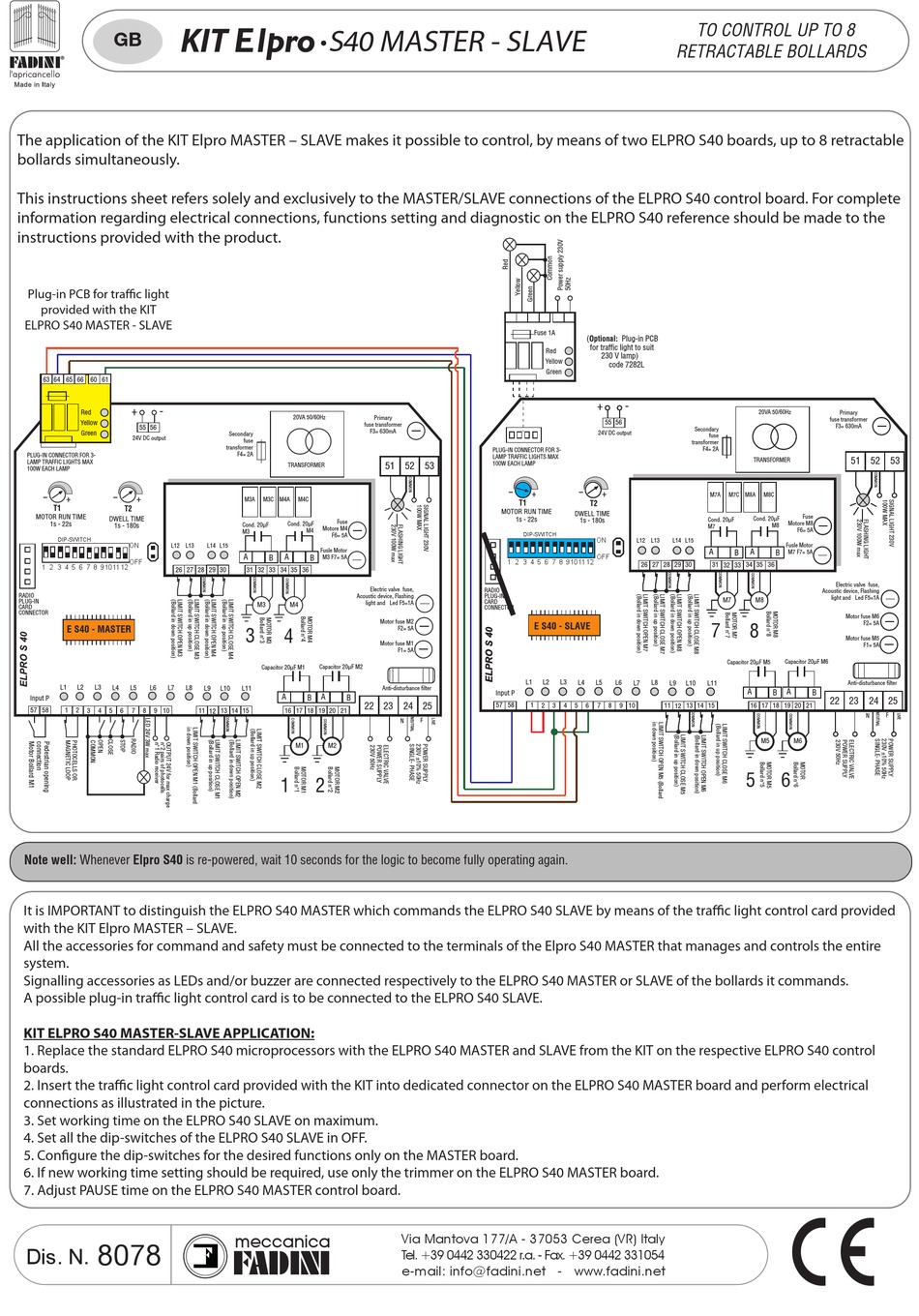

KIT ELPRO S40 MASTER-SLAVE APPLICATION:
1. Replace the standard ELPRO S40 microprocessors with the ELPRO S40 MASTER and SLAVE from the KIT on the respective ELPRO S40 control
boards.
2. Insert the tra c light control card provided with the KIT into dedicated connector on the ELPRO S40 MASTER board and perform electrical
connections as illustrated in the picture.
3. Set working time on the ELPRO S40 SLAVE on maximum.
4. Set all the dip-switches of the ELPRO S40 SLAVE in OFF.
5. Con gure the dip-switches for the desired functions only on the MASTER board.
6. If new working time setting should be required, use only the trimmer on the ELPRO S40 MASTER board.
7. Adjust PAUSE time on the ELPRO S40 MASTER control board.
8078
Dis. N.
S40 MASTER - SLAVE
20VA 50/60Hz
fuse transformer
F3= 630mA
Secondary
fuse
transformer
F4= 2A
TRANSFORMER
M3A
M3C M4A
M4C
Fuse
Motore M4
F6= 5A
L14 L15
Fusle Motor
A
A
B
B
M3 F7= 5A
31 32
33
34 35
36
Electric valve fuse,
Acoustic device, Flashing
light and Led F5=1A
M3
M4
3
4
L9
L10
L11
A
A
B
B
22
11 12 13 14 15
16 17
18
19 20
21
M1
M2
1
2
meccanica
FADINI
63 64 65 66 60 61
Fuse 1A
Red
Yellow
Green
Primary
PLUG-IN CONNECTOR FOR 3-
LAMP TRAFFIC LIGHTS MAX
51
52
53
100W EACH LAMP
-
+
T1
MOTOR RUN TIME
1s - 22s
DIP-SWITCH
1
2 3
4 5 6 7 8
RADIO
PLUG-IN
CARD
CONNECTOR
Motor fuse M2
E S40 - SLAVE
F2= 5A
Motor fuse M1
F1= 5A
L1
L2
Anti-disturbance filter
23
24 25
57 58
1
2
Via Mantova 177/A - 37053 Cerea (VR) Italy
Tel. +39 0442 330422 r.a. - Fax. +39 0442 331054
e-mail: info@fadini.net - www.fadini.net
TO CONTROL UP TO 8
RETRACTABLE BOLLARDS
(Optional: Plug-in PCB
for traffic light to suit
230 V lamp)
code 7282L
+
-
55 56
