3.1 Connection diagrams
Connection diagrams
The cold water chiller can be connected to the following cooling
systems:
• Chilled water unit
• Buffer tank
• Pressure-free manifold
• Pressurised manifold
Info
The shut-off devices on the process medium side are
not included in the scope of supply and must be provi-
ded by the customer.

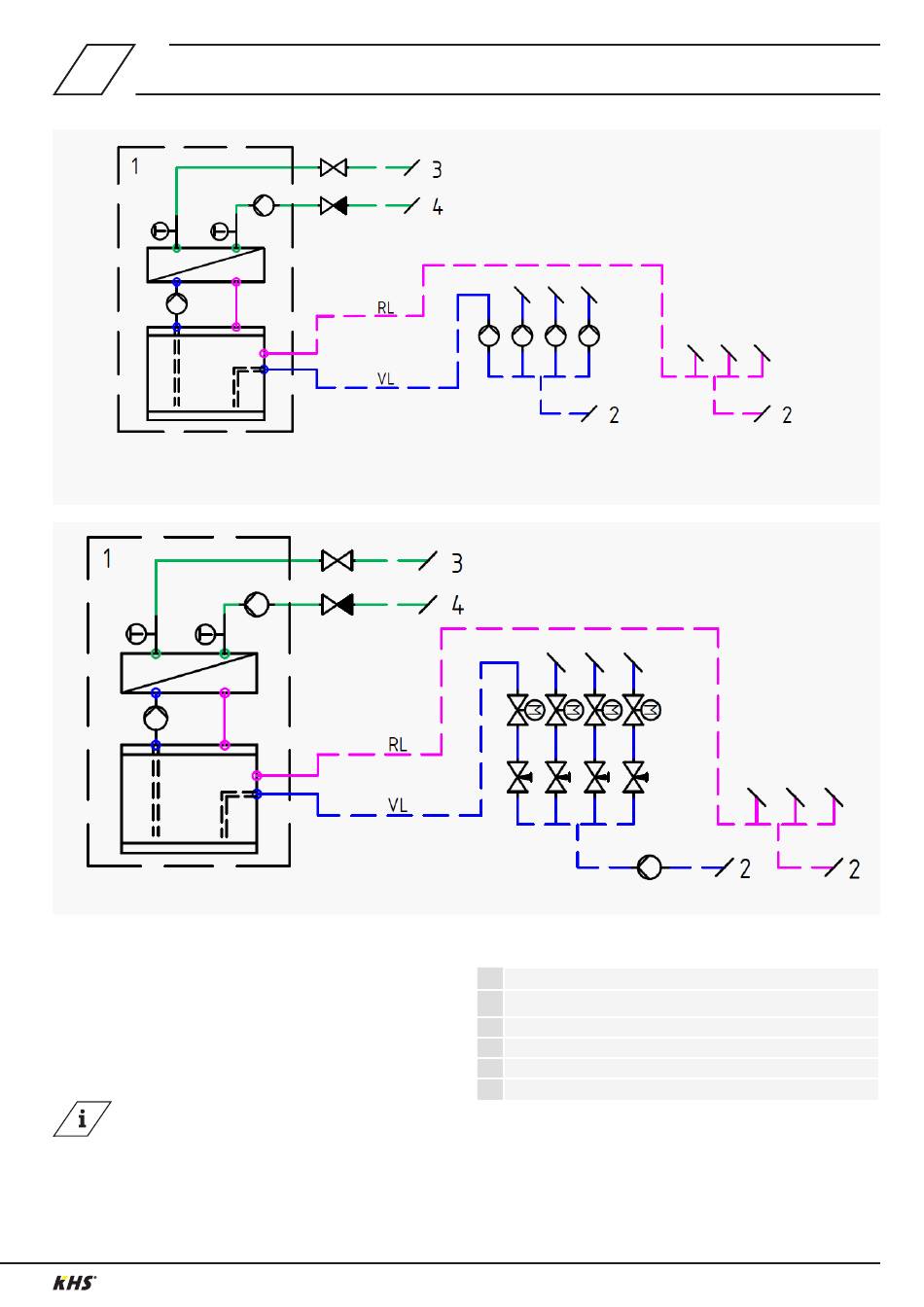

Connection of pressure-free manifolds
Connection of pressurised manifolds
1 KHS CoolFlow cold water chiller
2 Cooling system
3 Connection to cold water main distributor (outlet)
4 Cold water circulation header (inlet)
VL Flow
RL Return
