Ac-motor für elektrische vorhänge mit zug- und fernsteuerung (76 Seiten)
Inhaltszusammenfassung für Motion CM-09MC
Seite 1

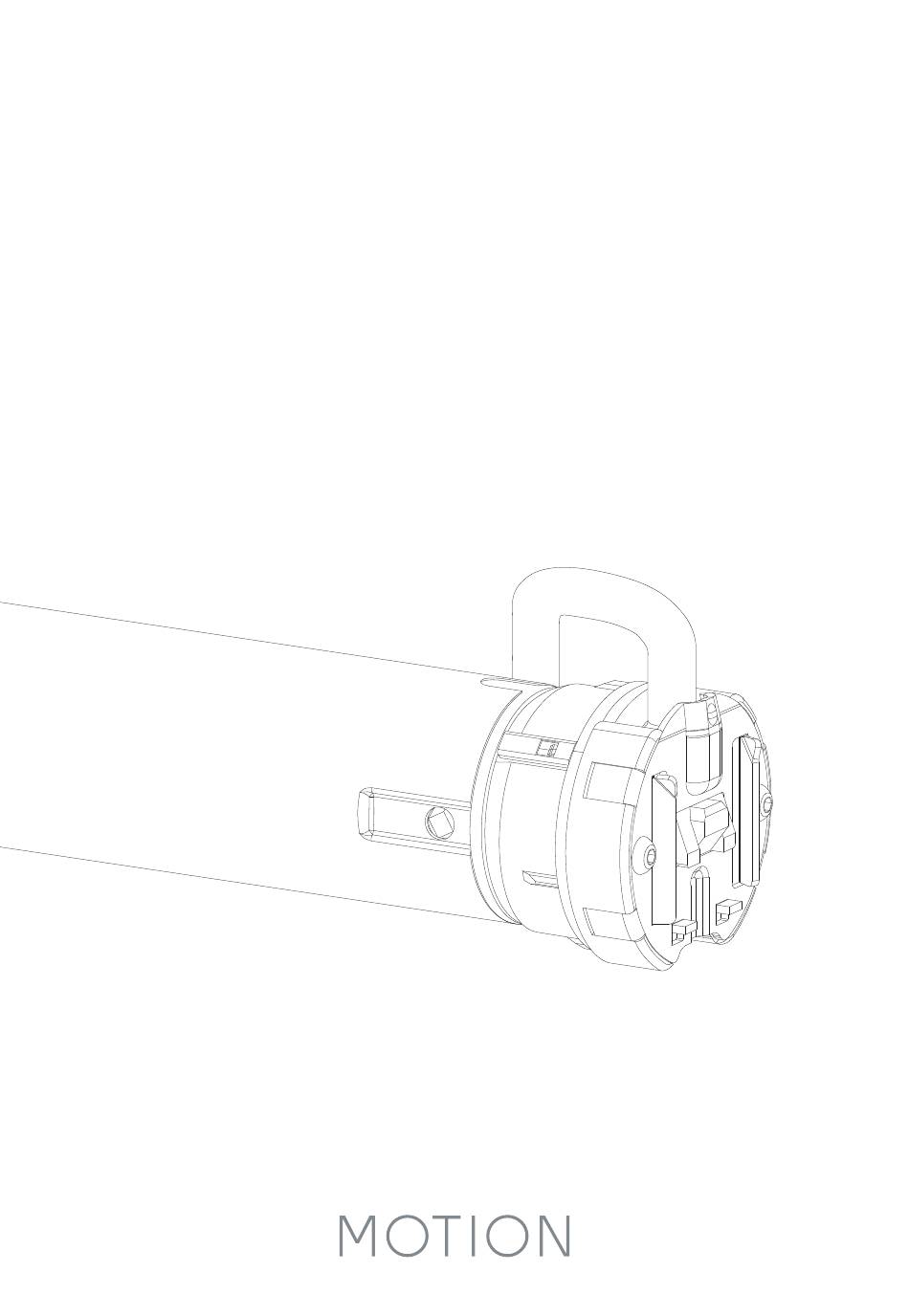

MOTION CM-09/10 (Q)MC MECHANICAL TUBULAR MOTOR MANUAL CM-09/10(Q)MC AC mechanical tubular motors with wired operation...
Seite 2
MOTION CM-09/10 (Q)MC MECHANICAL TUBULAR MOTOR CM-09/10(Q)MC AC mechanical tubular motors with wired operation Motor features AC Motor 120V/230V Heavy duty Silent Alternating current Powered by For heavy Low noise motor motor 120V/230V mains application electricity Control options Wired Control...
Seite 3
MOTION CM-09/10 (Q)MC MECHANICAL TUBULAR MOTOR WARNING Read the instructions carefully before assembling and using the product. Assembly can be completed by non- professionals. For indoor use only. Young children can strangle Cords may ensnare a child’s themselves with the loop neck.
MOTION CM-09/10 (Q)MC MECHANICAL TUBULAR MOTOR Connecting diagram IMPORTANT: When the mains cable is permanently connected, a readily accessible disconnect device must be incorporated externally to the motor. When there is a pluggable connecter installed on the mains cable, the socket-outlet must be installed near the motor and shall be easily accessible.
Seite 5
MOTION CM-09/10 (Q)MC MECHANICAL TUBULAR MOTOR Find the adjuster screws on your blind Roller blind Venetian blind Roman blind White adjuster screw Red adjuster screw By turning the red or the white adjuster screw to the right (+) or to the left...
Seite 6
MOTION CM-09/10 (Q)MC MECHANICAL TUBULAR MOTOR Set bottom position Turn the switch downwards and turn the white or red screw until the blind has reached the bottom position (select the white or red screw depending on Bottom the position of the motor in the blind; you need to position first test this in order to make the selection).
Seite 7
MOTION CM-09/10 (Q)MC MECHANICAL TUBULAR MOTOR Set top position position Turn the switch upwards and turn the white or red screw until the blind has reached the top position (select the white or red screw depending on the position of the motor in the blind; you need to first test this in order to make the selection).
MOTION CM-09/10 (Q)MC MECHANICAL TUBULAR MOTOR Frequently Asked Questions Problem Cause Solution Power supply is not connected. Connect the wiring according to step 1. Blind does not work. The motor is overheated. Wait until the motor is cooled down. Two motors are connected to the same Blind is stepping.
MOTION CM-09/10 (Q)MC MECHANISCHER ROHRMOTOR CM-09/10 Mechanische Wechselstrom-Rohrmotoren mit kabelgebundenem Betrieb Motoreigenschaften AC-Motor 120V/230V Stark Leise Wechselstrommotor Angetrieben durch Drehmomentstarke Geräuscharme 120V/230V-Strom Motorisierung Motorisierung für für schwere leisen Betrieb Anwendungen Steuerungsoptionen Betrieb mit Verdrahtung Betrieb mit verdrahteten Schaltern Support Video...
MOTION CM-09/10 (Q)MC MECHANISCHER ROHRMOTOR ACHTUNG Lesen Sie die Gebrauchs anweisung sorgfältig vor der Montage und Verwendung des um Strangulierung und Ver Produkts. Montage kann durch wicklung zu vermeiden. NichtProfis gemacht sein. Nur Der Hals eines Kindes kann in für den Innenbereich.
MOTION CM-09/10 (Q)MC MECHANISCHER ROHRMOTOR Schaltplan WICHTIG: Bei einem fest verbundenen Netzkabel muss eine leicht zugängliche Trennvorrichtung außerhalb des Motors eingebaut werden. Wenn am Netzkabel ein steckbarer Stecker installiert ist, muss die Steckdose in der Nähe des Motors installiert werden und leicht zugänglich sein.
MOTION CM-09/10 (Q)MC MECHANISCHER ROHRMOTOR Finden Sie Einstellschrauben an Ihrer Jalousie Rollo Jalousie Raffrollo Weiße Einstellschraube Rote Einstellschraube Durch Drehen der roten oder der weißen Einstellschraube nach rechts (+) oder nach links können Sie die Endposition vergrößern oder verkleinern.
MOTION CM-09/10 (Q)MC MECHANISCHER ROHRMOTOR Einstellung der unteren Position Drehen Sie den Schalter nach unten und drehen Sie die weiße oder rote Schraube, bis die Jalousie die untere Position erreicht hat (wählen Sie die weiße Untere oder rote Schraube abhängig von der Position des Position Motors in der Jalousie;...
MOTION CM-09/10 (Q)MC MECHANISCHER ROHRMOTOR Einstellung der oberen Position Obere Position Drehen Sie den Schalter nach oben und drehen Sie die weiße oder rote Schraube, bis die Jalousie die obere Position erreicht hat (wählen Sie die weiße oder rote Schraube abhängig von der Position des Motors in der Jalousie;...
MOTION CM-09/10 (Q)MC MECHANISCHER ROHRMOTOR Häufig gestellte Fragen Problem Ursache Lösung Die Stromversorgung ist nicht Schließen Sie die Kabel wie in Schritt 1 an. angeschlossen. Jalousie funktioniert nicht. Warten Sie, bis sich der Motor abgekühlt Der Motor ist überhitzt. hat.
Seite 18
MOTION CM-09/10 (Q)MC MOTEUR TUBULAIRE MÉCANIQUE CM-09/10(Q)MC Moteurs tubulaires mécaniques AC avec câbles Caractéristiques du moteur Moteur CA 120V / 230V Mot de passe fort Silencieux Moteur à courant Alimenté par Motorisation à couple Motorisation à faible alternatif l' é lectricité du réseau élevé...
Seite 19
MOTION CM-09/10 (Q)MC MOTEUR TUBULAIRE MÉCANIQUE AVERTISSEMENT Lisez attentivement les instructions avant d' a ssembler et d'utiliser le produit. Le montage peut être effectué cordons hors de portée des par des non professionnels. jeunes enfants. Les cordons Usage intérieur uniquement peuvent s’enrouler autour du...
MOTION CM-09/10 (Q)MC MOTEUR TUBULAIRE MÉCANIQUE Diagramme de connexion IMPORTANT: Si le câble d’alimentation est connecté de manière permanente, un appareil de déconnexion facilement accessible doit être intégré en externe au moteur. S’il y a un connecteur à fiche installé sur le câble d’alimentation, la prise doit être installée près du moteur et être facilement accessible.
Seite 21
MOTION CM-09/10 (Q)MC MOTEUR TUBULAIRE MÉCANIQUE Cherchez les vis de réglage de votre store Store roulant Store vénitien Store romain Vis de réglage blanche Vis de réglage rouge En tournant la vis de réglage rouge ou blanche vers la droite (+) ou la gauche,...
Seite 22
MOTION CM-09/10 (Q)MC MOTEUR TUBULAIRE MÉCANIQUE Régler la position au sol Tournez l’interrupteur vers le bas et la vis blanche ou rouge jusqu’à ce que le store ait atteint sa position au sol (sélectionnez la vis blanche ou rouge en Position fonction de la position du moteur dans le store ;...
Seite 23
MOTION CM-09/10 (Q)MC MOTEUR TUBULAIRE MÉCANIQUE Régler la position en haut Position en haut Tournez l’interrupteur vers le haut et la vis blanche ou rouge jusqu’à ce que le store ait atteint sa position en haut (sélectionnez la vis blanche ou rouge en fonction de la position du moteur dans le store ;...
MOTION CM-09/10 (Q)MC MOTEUR TUBULAIRE MÉCANIQUE Foire aux questions Problème Cause Solution L’alimentation électrique n’est pas Connectez les câbles selon l’étape 1. connectée. Le store ne fonctionne pas. Le moteur est en surchauffe. Attendez que le moteur ait refroidi. Deux moteurs sont connectés au même Utilisez des interrupteurs séparés pour des...
Seite 26
MOTION CM-09/10 (Q)MC MECHANISCHE TUBULAIRE MOTOR CM-09/10(Q)MC Mechanische tubulaire wisselstroommotoren met bedrade besturing Kenmerken van de motor AC-motor 120/230 volt Heavy duty Stil Wisselstroommotor Werkt op netstroom Geschikt voor zware Geruisloze motor van 120/230 volt toepassingen Besturingsoptie Bediening met bedrading...
Seite 27
MOTION CM-09/10 (Q)MC MECHANISCHE TUBULAIRE MOTOR WAARSCHUWING Lees deze handleiding aandachtig alvorens het product te monteren en te Houd alle koorden buiten het bereik van kleine kinderen om gebruiken. De montage kan wurging en verstrikking te worden uitgevoerd door niet...
MOTION CM-09/10 (Q)MC MECHANISCHE TUBULAIRE MOTOR Aansluitschema BELANGRIJK: Wanneer de voedingskabel een permanente verbinding heeft, moet een gemakkelijk te bereiken afscheidingsschakelaar extern worden verbonden met de motor. Wanneer er een inplugbare connector is aangesloten op de voedingskabel, dan moet de contactbox in de nabijheid van de motor worden geïnstalleerd en gemakkelijk toegankelijk zijn.
Seite 29
MOTION CM-09/10 (Q)MC MECHANISCHE TUBULAIRE MOTOR Lokaliseer de verstelschroeven op uw raambekleding Rolluik Jaloezie Vouwgordijn Witte verstelschroef Rode verstelschroef Door de rode of witte verstelschroef naar rechts (+) of links te draaien, vergroot of verkleint u respectievelijk de eindpositie.
Seite 30
MOTION CM-09/10 (Q)MC MECHANISCHE TUBULAIRE MOTOR Instellen van de onderpositie Duw de schakelaar naar beneden en draai de witte of rode schroef totdat het rolgordijn de onderpositie heeft bereikt (kies hiervoor de witte of rode schroef, afhankelijk van de positie van de motor in het Onderpositie rolgordijn;...
Seite 31
MOTION CM-09/10 (Q)MC MECHANISCHE TUBULAIRE MOTOR Instellen van de bovenpositie Bovenpositie Duw de schakelaar omhoog en draai de witte of rode schroef totdat het rolgordijn de bovenpositie heeft bereikt (kies hiervoor de witte of rode schroef, afhankelijk van de positie van de motor in het rolgordijn;...
MOTION CM-09/10 (Q)MC MECHANISCHE TUBULAIRE MOTOR Veelgestelde vragen Probleem Oorzaak Oplossing Verbind de kabels zoals aangegeven in Er is geen verbinding met de voeding. stap 1. Het rolgordijn werkt niet. De motor is oververhit. Wacht totdat de motor is afgekoeld.
Seite 34
MOTION CM-09/10 (Q)MC MOTOR TUBULAR MECÁNICO CM-09/10(Q)MC Motores tubulares mecánicos de CA con control por cable Características del motor Motor de CA 120V/230V Fuerte Silencioso Motor de corriente Alimentado por Motor de alto par para Motor de poco ruido alterna...
Seite 35
MOTION CM-09/10 (Q)MC MOTOR TUBULAR MECÁNICO ADVERTENCIA Lea detenidamente las instrucciones antes de instalar y usar el producto. El proceso de montaje puede ser completado por personas quedarse atrapados en ellos y no profesionales.Para uso en estrangularse. interiores. cordones pueden enrollarse en el cuello de los niños.
MOTION CM-09/10 (Q)MC MOTOR TUBULAR MECÁNICO Diagrama de conexión IMPORTANTE: Si el cable de alimentación está permanentemente conectado, se debe incorporar un dispositivo de desconexión fácilmente accesible y externo al motor. Cuando hay un conector enchufable instalado en el cable de alimentación, la caja de conexión debe instalarse cerca del motor y ser fácilmente accesible.
Seite 37
MOTION CM-09/10 (Q)MC MOTOR TUBULAR MECÁNICO Encontrar los tornillos de ajuste en su persiana Persiana enrollable Veneciana Estor plegable Tornillo de ajuste blanco Tornillo de ajuste rojo Al girar el tornillo de ajuste rojo o blanco a la derecha (+) o a la izquierda (-)
Seite 38
MOTION CM-09/10 (Q)MC MOTOR TUBULAR MECÁNICO Ajustar la posición final inferior Pulse el interruptor hacia abajo y gire el tornillo blanco o rojo hasta que la persiana alcance la posición inferior (seleccione el tornillo blanco o rojo Posición dependiendo de la posición del motor en la persiana;...
Seite 39
MOTION CM-09/10 (Q)MC MOTOR TUBULAR MECÁNICO Ajustar la posición final superior Posición superior Pulse el interruptor hacia arriba y gire el tornillo blanco o rojo hasta que la persiana alcance la posición tope superior (seleccione el tornillo blanco o rojo dependiendo de la posición del motor en la persiana;...
MOTION CM-09/10 (Q)MC MOTOR TUBULAR MECÁNICO Preguntas frecuentes Problema Causa Solución La fuente de alimentación no está Conecte el cableado de acuerdo con el conectada. paso 1. La persiana no funciona. El motor se ha sobrecalentado. Espere hasta que el motor haya enfriado.
